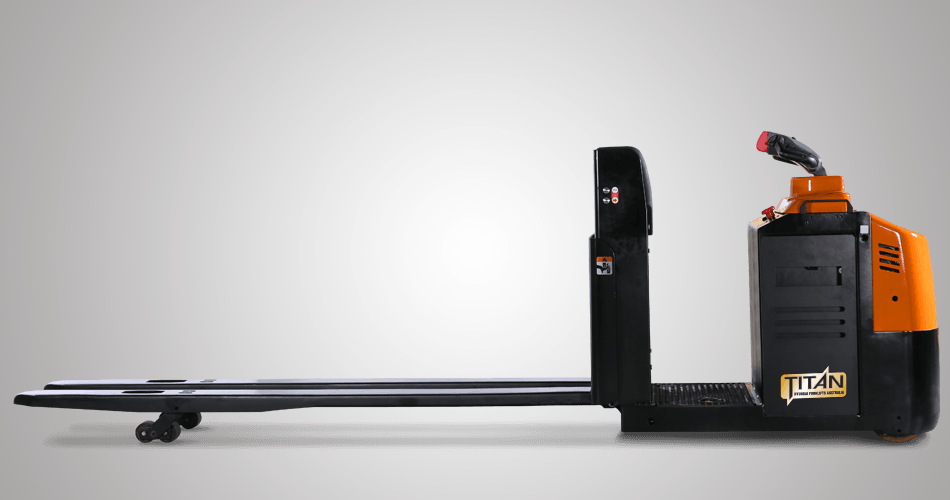

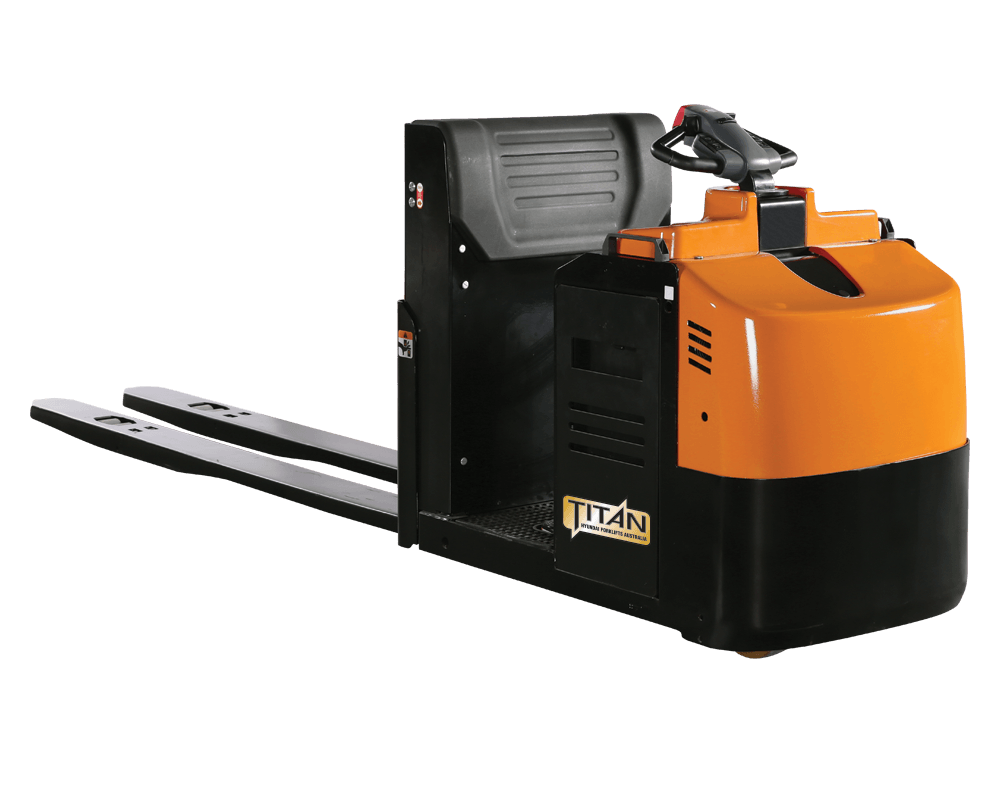

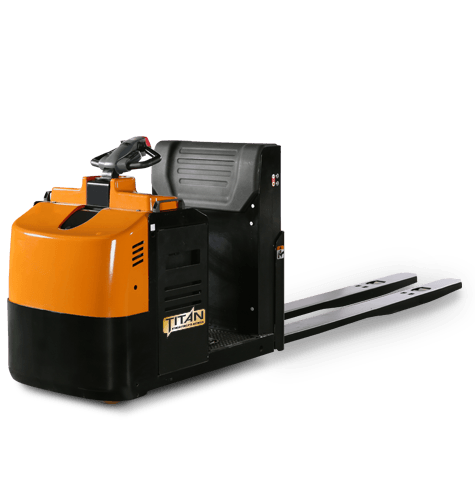

Double Pallet Runner

20DPR

Double Pallet Runner

20DPR

The new 20DPR Double Pallet Runner is the new choice for low level order picking, specifically designed for high-volume, low-level order picking and operator safety.

Battery voltage V
24
Battery capacity Ah
360Ah
Load capacity kg
2000

Product

Features

V

Key Benefits

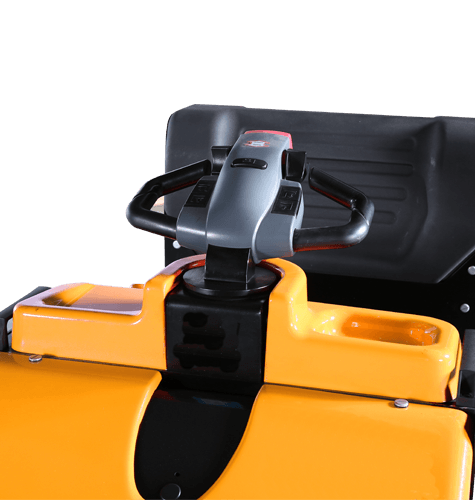

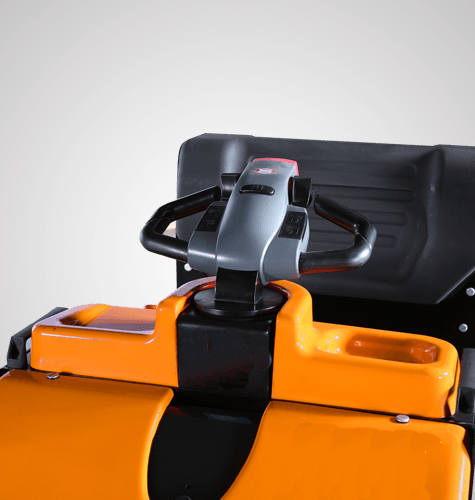

  • New design ergonomic tiller head, all buttons can be reached conveniently & comfortably.
  • Backrest cushion, spacious operation room and vibration absorber pedal, the operator feels more comfortable.
  • Side-open battery compartment design for easy replacement and maintenance.
  • Coast control function, convenient for order picking.
  • Electric power steering, smooth & comfortable (EPS).
  • Walkie function allows the operator to use the button on the side of the machine to walk the machine one full pay of racking without being on the machine, perfect for order picking.
  • The innovative AC system offers strong power, accurate control, excellent performance.
  • High strength vertical gearbox, longer working life.
  • Low-noise and durable hydraulic unit, good quality cylinders and hoses ensure the high reliability of hydraulic system.
  • AMP connectors and durable electronics greatly reduce malfunctions of components.
  • High speed (up to 12km/h unladen), High efficiency of material handling operations.

Safety

  • Operator Presence Safety Foot switch avoids operation without an operator present.
  • Automatic engaging brake and reverse current braking when foot switch is off, or travel switch is neutral.
  • Emergency button will cut off power source to avoid operator injury.
  • Anti-roll back feature holds the truck automatically on an incline.
  • Dual-monitoring Electric Power Steering.
  • AC traction motor, maintenance free.
  • Hour meter and battery indicator remind the operator of battery charging.
  • Easily removable back cover to access to all key components for inspection, maintenance and replacement.
  • Vertical motor makes the inspection & service much more convenient.
  • Control system allows easy trouble shooting.
  • Low voltage lift cut off design protects the battery.

Product

Specifications

20DPR

Specifications Download Product Brochure

Battery voltage V
24
Battery capacity Ah
360Ah
Load capacity kg
2000
Load center mm
600 to 1200
Lift height mm
120
Turning radius mm
2348 to 3227
Travel speed km/h
9 to 12
