Electric Sit Down
16/20BE-X
Electric Sit Down
16/20BE-X
COUNTER BALANCE

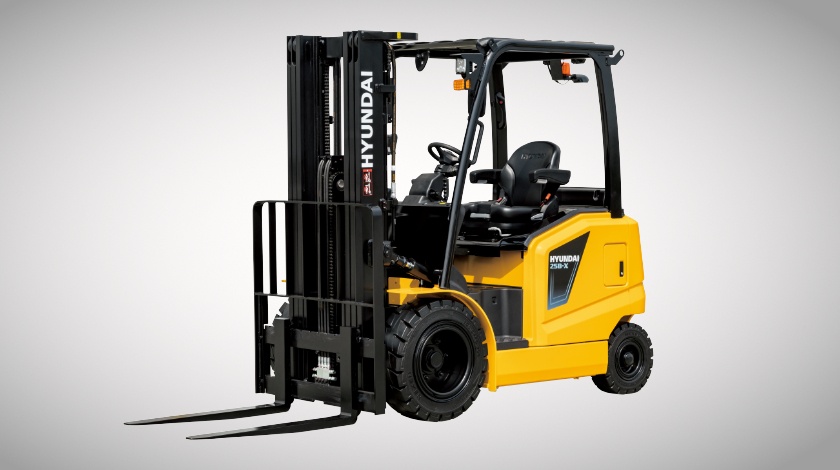

The rugged, new B-X Series brings forklift owners a new level of performance, convenience, and value. Available with advanced LI-ion battery technology, it all adds up to a lower cost of ownership and years of reliable performance.
LOAD CAPACITY
1600kg - 2000kgs
Tyre Type
Pneumatic
Battery Type
48V/600-700Ah
PERFORMANCE

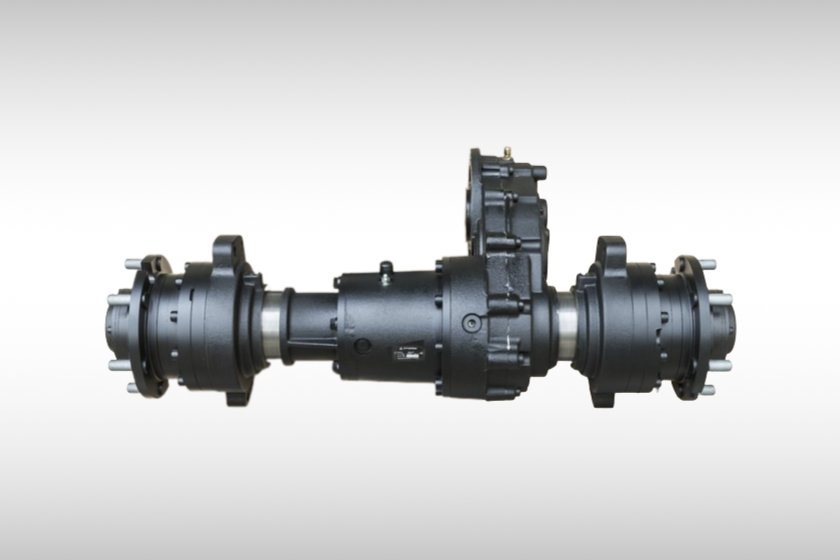

RUGGED DRIVE AXLE
This dedicated drive axle for the single drive motor offers low resistance and reduced noise generation. This results in dramatically improved energy efficiency. The rugged construction enables the B-X to also operate outdoors. This system also includes a wet disc brake for greater reliability and lower maintenance cost vs. a drum brake system.
Performance

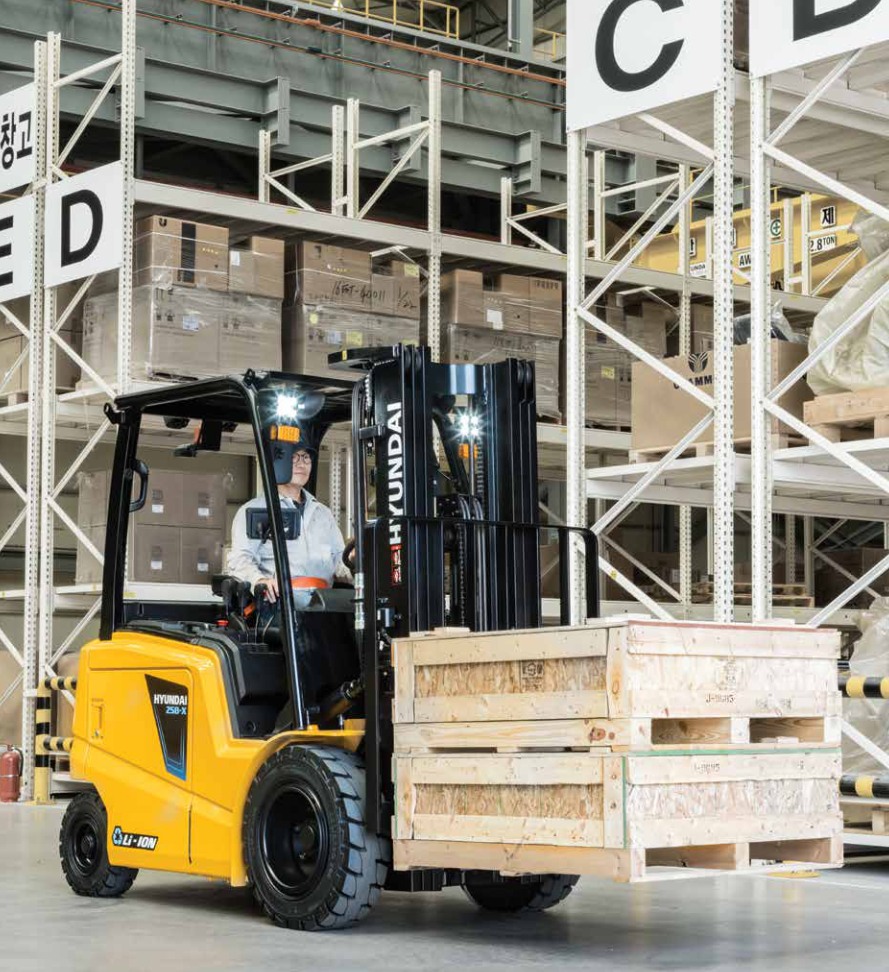

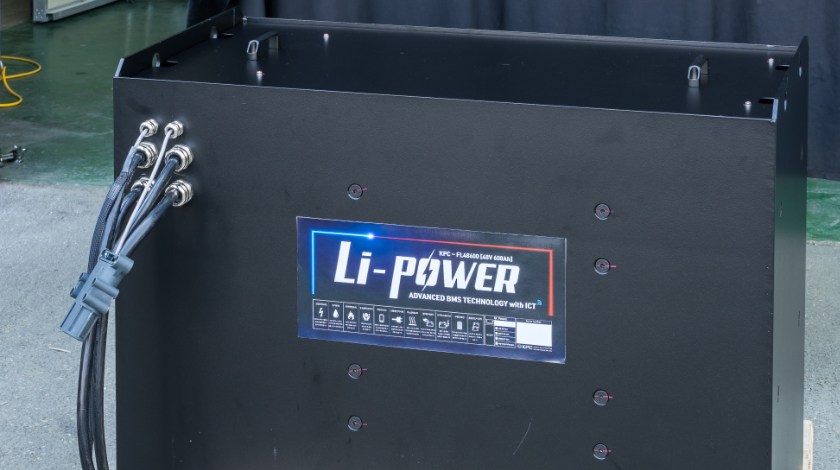

LITHIUM-ION BATTERY
With rapid charging in just two hours, no daily maintenance, and fast lifting and travel speeds, the optional, advanced LI-ion battery can increase your operation’s profitability while delivering up to 15% savings on electric bills.
PERFORMANCE

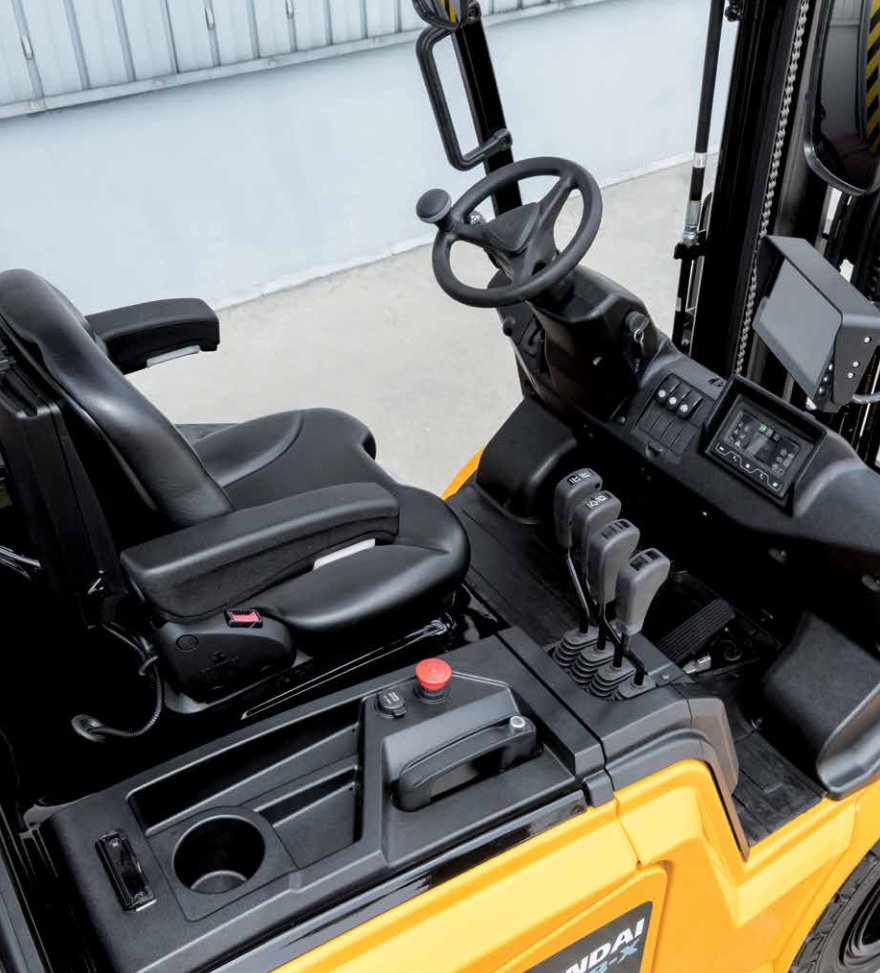

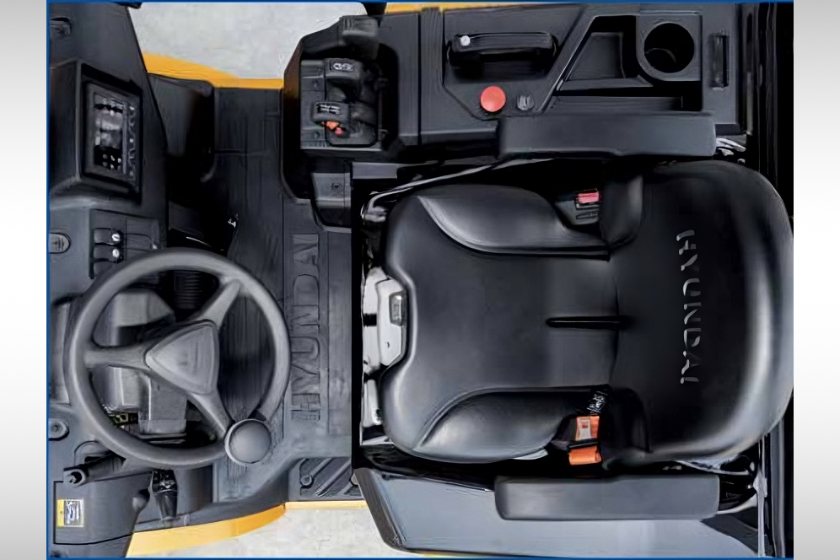

ERGONOMIC OPERATOR COMPARTMENT
The B-X cabin has been ergonomically engineered to reduce operator fatigue while improving productivity. The seat is ideally positioned for precise control of the steering wheel and pedals while providing outstanding visibility to the workplace.
CONVENIENCE

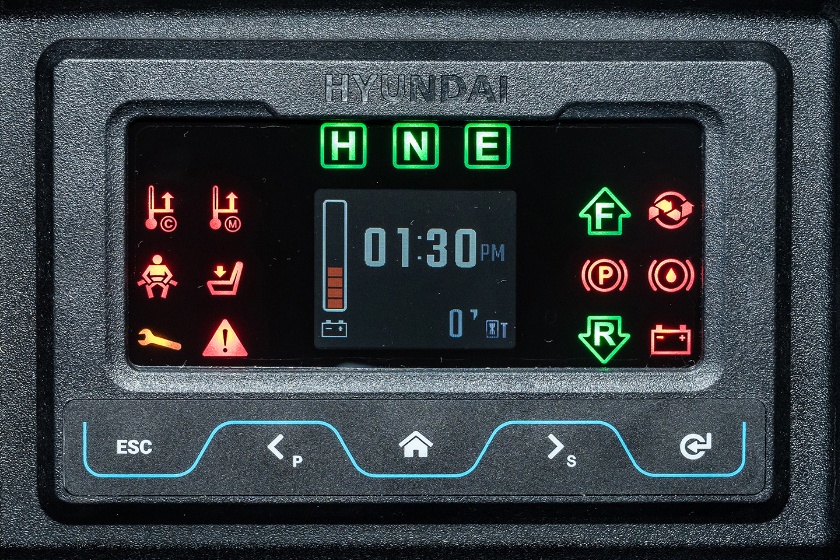

MULTIFUNCTION DIGITAL CLUSTER
This advanced digital system clearly displays essential information in real time and includes buttons for easy setting of travel and mast operating speeds to match work conditions. It also provides key information including battery discharge, hour meter, load weight, working mode, and more.
CONVENIENCE

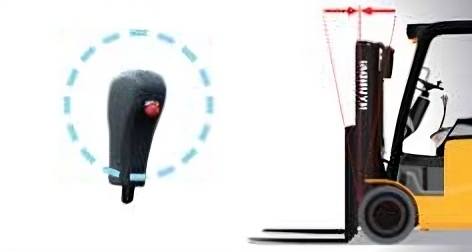

OPTIONAL AUTO TILTING
Optional auto tilting feature stops forks at a position parallel to the ground enhancing safety and work efficiency when loading and unloading pallets on and from racks at high elevation.
CONVENIENCE

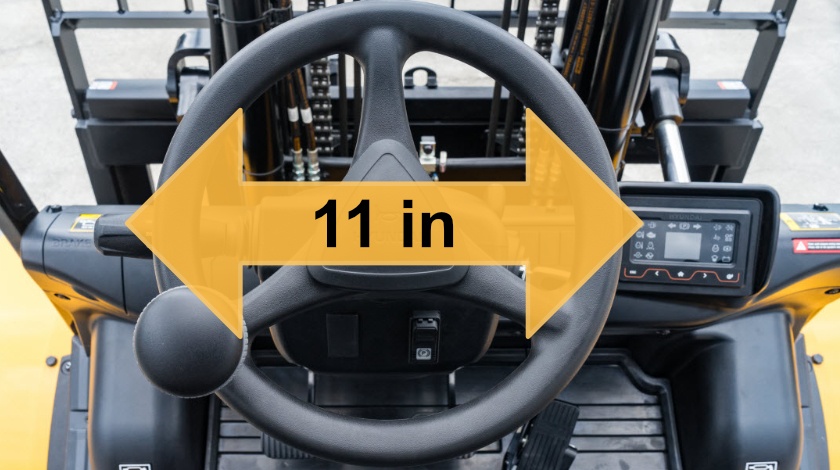

STEERING WHEEL
The diameter of the steering wheel has been reduced by over 1.5” to ensure precise handling, safer control of the machine, all while reducing operator fatigue.
Serviceability

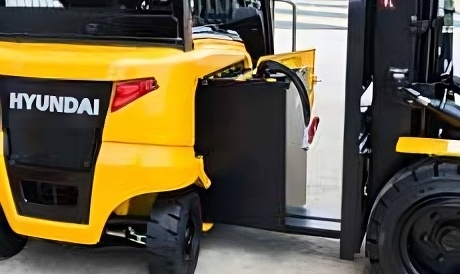

SIDE BATTERY REPLACEMENT
Thanks to its innovative design, the B-X makes it easy to quicky remove and install batteries through the side of the forklift without the need for expensive equipment like a crane.
SERVICEABILITY

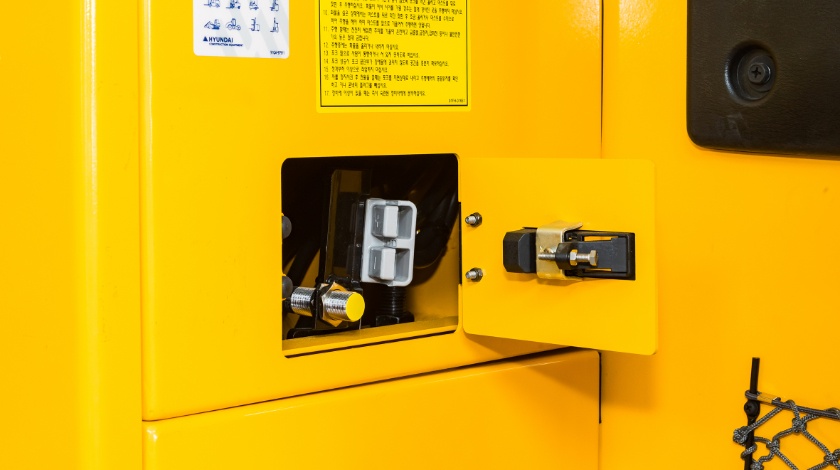

CONVENIENT BATTERY CHARGING
The B-X makes it easy to charge its battery without requiring a separate battery cable.
SERVICEABILITY
CONTROLLER SELF-DIAGNOSIS
The Curtis controller offers self-diagnosis of possible malfunctions through the cluster without the need for specialized equipment.
SAFETY

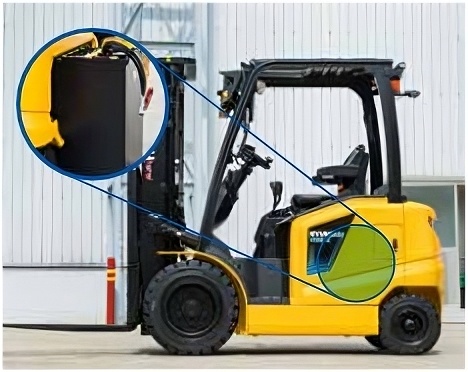

DEEP DROP DESIGN
In this unique design, the battery is located between the front and rear wheels creating a low center of gravity and acting as a balancing element improving safety and stability when handling elevated loads.
SAFETY

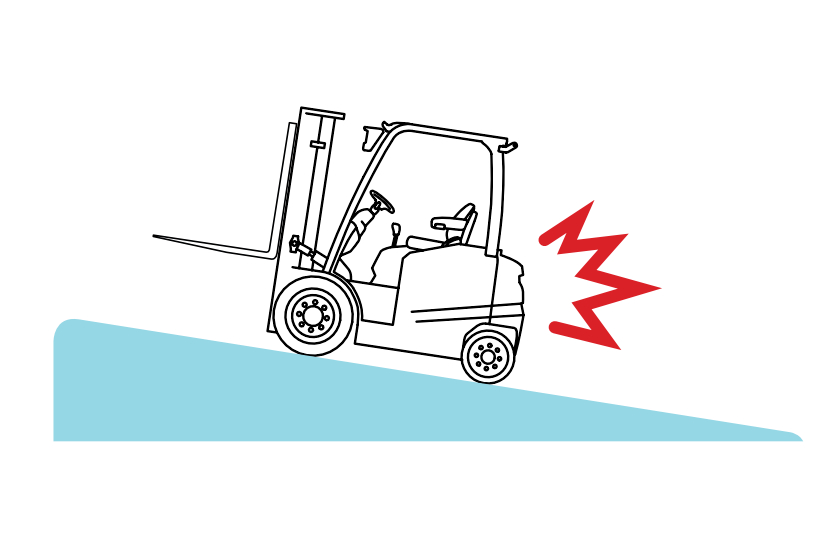

ANTI ROLL-BACK SYSTEM
The anti roll-back system offers protection against the machine rolling back after coming to a stop on inclines, as when working on ramps.
SAFETY

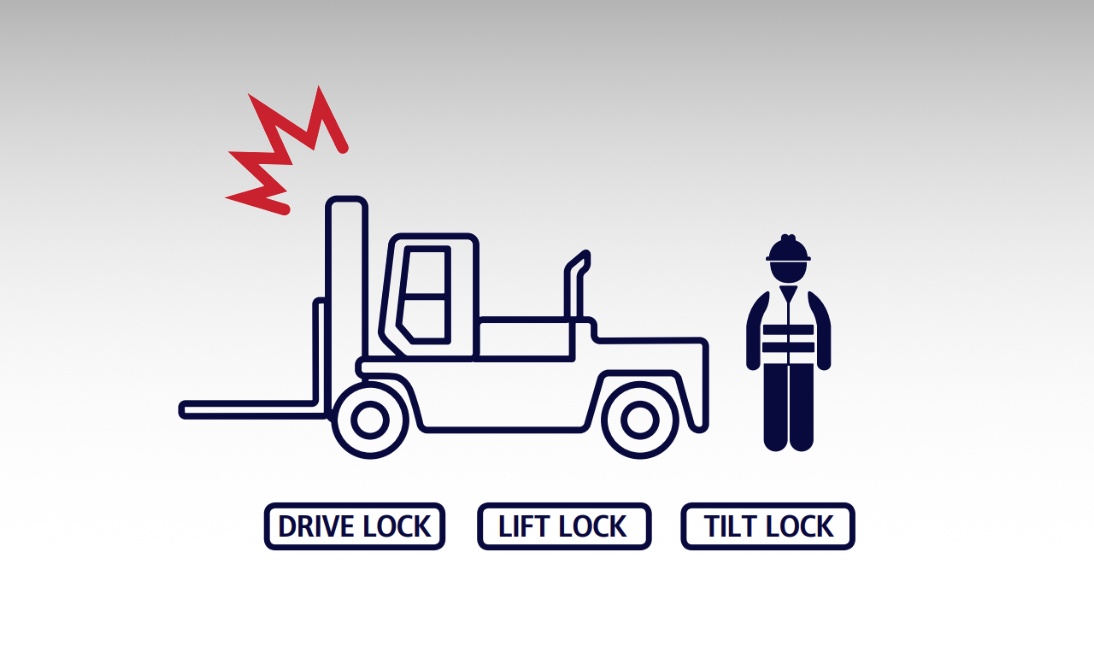

(OPSS) OPERATOR PRESENCE SENSING SYTEM
The OPSS restricts driving, lift, and tilting when the operator leaves the driver seat to bring greater safety to the operator, others working the in the area, your facility, loads, and the equipment itself.
Product
Specifications
16/20BE-X
SpecificationsDownload Brochure
LOAD CAPACITY
1600kg - 2000kgs
TRAVEL SPEED (UNLOADED)
15km/h
VOLTAGE
48V/600 to 700Ah
LENGTH TO FACE OF FORKS
2100mm
OVERHEAD GUARD HEIGHT
2130mm
OVERALL WIDTH
1185mm
TURNING RADIUS
1,890-1,910
