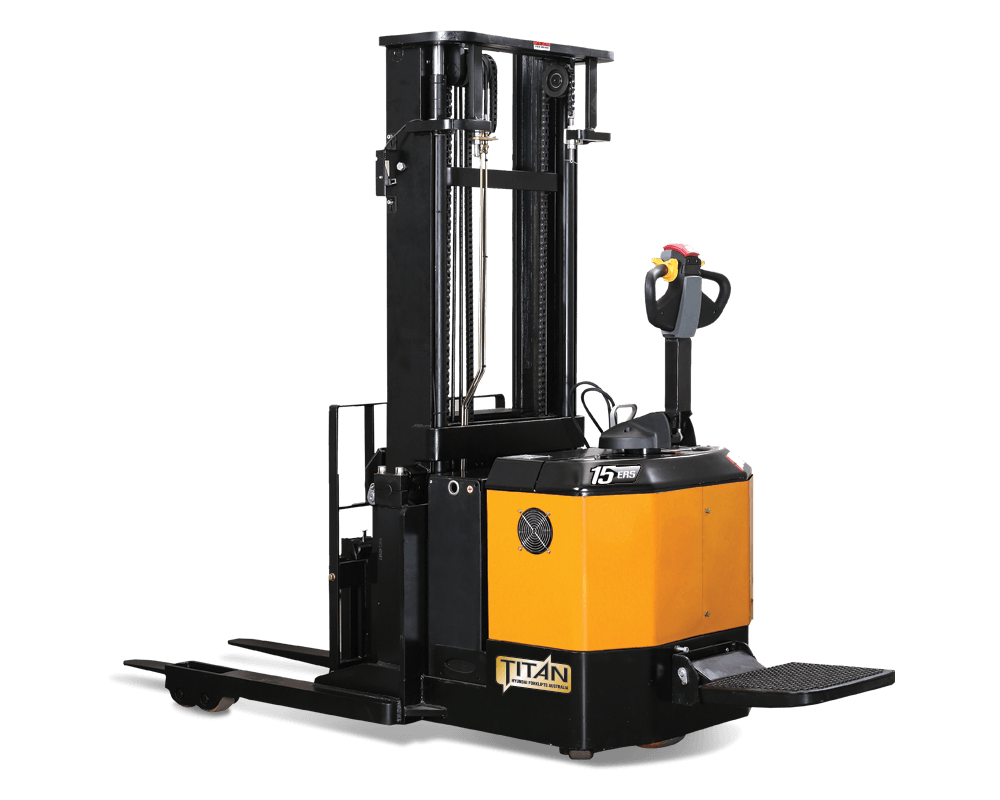

Walkie Reach Stacker
15ERS
The 15ERS Reach Stacker is Specially designed for narrow aisles and non-standard pallets
Walkie Reach Stacker
15ERS
Battery voltage V
24
Battery capacity Ah
280
Load capacity kg
1500
Product
Features
Key Benefits
- The innovative AC system offers strong power, accurate control and excellent performance.
- High strength vertical gearbox, longer working life.
- Low-noise durable hydraulic unit, high quality cylinders and hoses ensure the reliability of the hydraulic system.
- AMP connectors and durable electric components greatly reduce malfunctions and breakdowns.
- CJ shape mast channels provides extended durability and strength.
- Better heat dissipation system supports long hours of operation.
Safety
- Safe Valve system design prevents the mast from falling abruptly when hydraulic hose fails.

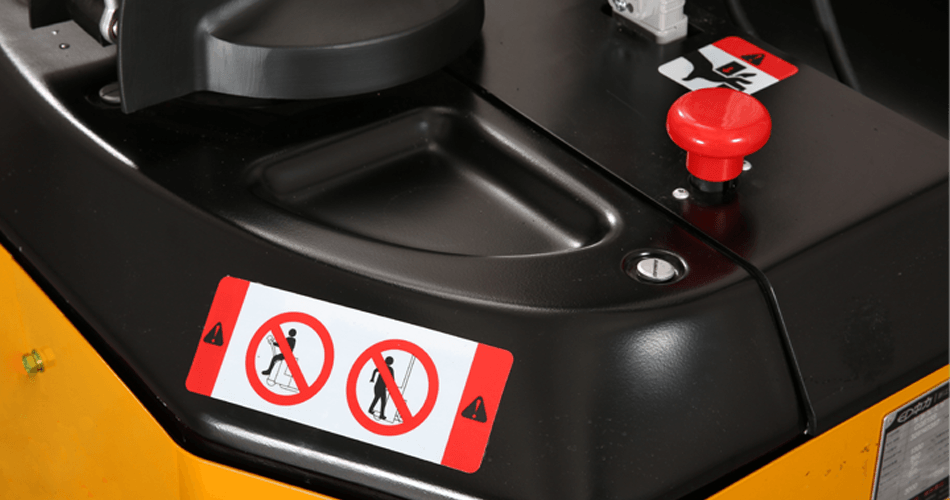

- Emergency reverse belly button protects the operator from pinch points.
- Emergency button will cut the power source to avoid an accident.
- Multiple lifting limit protection ensures safety.
- Automatic limit switch lowers the speed when the forks are at height.
- Anti-rolling back brake enable the truck to hold on slopes.
- Dual monitoring power steering system.
Product
Specifications
15ERS
Specifications Download Product Brochure
Battery voltage V
24
Battery capacity Ah
280
Load capacity kg
1500
Load center mm
600
Lift height mm
3960
Turning radius mm
1690
Travel speed km/h
5.5 to 6
