* This model is no longer available
LPG (ECONOMY MODEL)
20, 25, 30, 35L-7SA
TIER 2 ENGINE
Hyundai introduces a new line of 7A series LPG forklift trucks. Excellent power and performance makes your business more profitable.
LPG (ECONOMY MODEL)
20, 25, 30, 35L-7SA
TIER 2 ENGINE
LOAD CAPACITY
2,000 - 3,500kg
POWER TYPE
LPG/ Gasoline
ENGINE POWER/ MANUFACTURER
Nissan K25 (Japanese Built)
Product
Features
PERFORMANCE
STATE-OF-THE-ART HYDRAULIC SYSTEM
Featuring a low-noise control valve, the large-capacity hydraulic system increases efficiency and durability.
PERFORMANCE

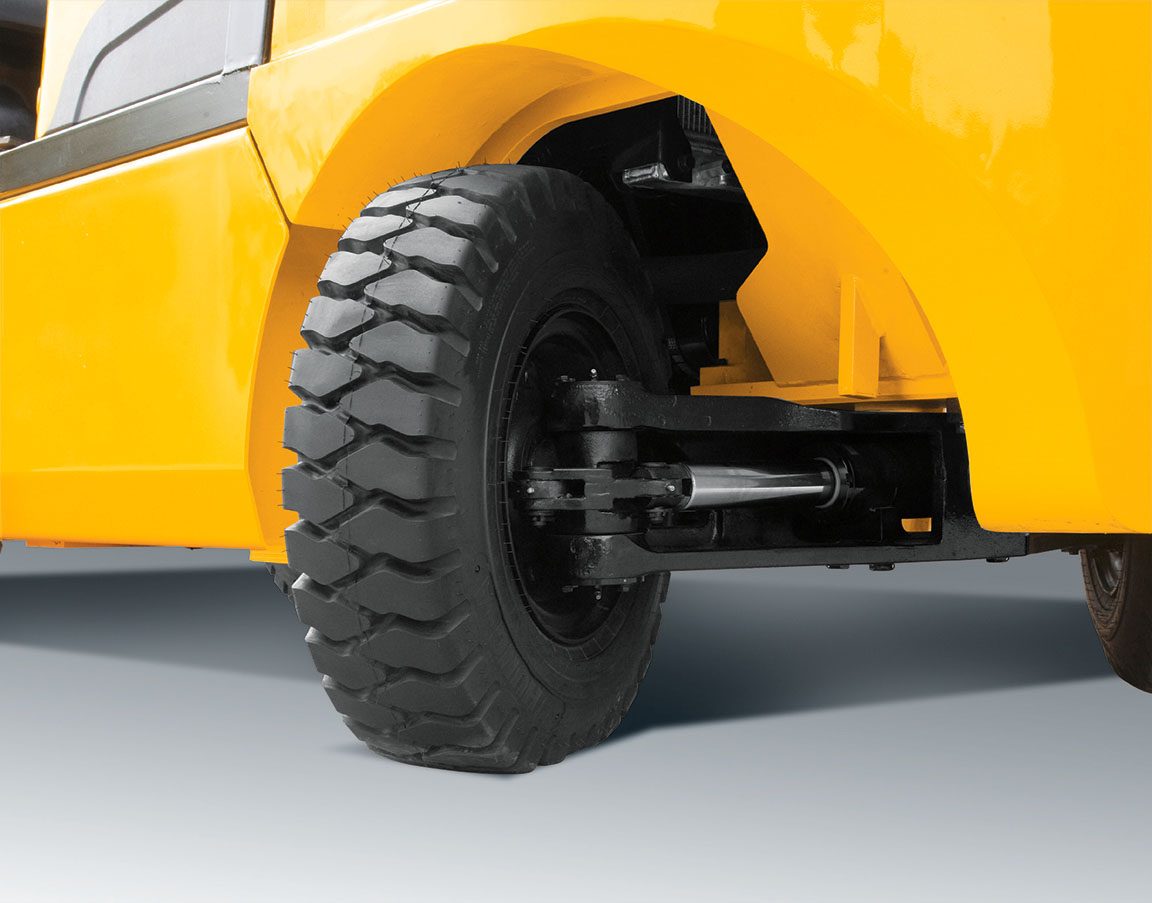

HYDROSTATIC POWER STEERING
The hydraulic steering system ensures smooth and flexible steering and prevents overrun and kick-back.
PERFORMANCE
POWERFUL ENGINE
The high-powered Nissan K25 (Japanese Built) engine ensures high performance, durability and fuel efficiency.
ERGONOMICS
OPERATOR FRIENDLY PANEL
The operator friendly gauges and water resistant dash display monitors 17 items including but not limited to fuel warning lamp, air cleaner filter warning light, and water temperature gauge.
ERGONOMICS
ADJUSTABLE STEERING WHEEL
Featuring a horn button and a right-hand lever, the steering wheel can be adjusted by the operator for comfortable positioning.
ERGONOMICS
GRAMMER™ FULL SUSPENSION SEAT
With an asymmetrical backrest and movable armrests, the adjustable ergonomic seat provides great operator comfort and safety.
SERVICEABILITY
QUICK CHANGE AIR CLEANER
Easy access to air filters for quick service exchange.
SERVICEABILITY
CENTRALISED ELECTRICAL COMPONENTS
Electrical parts are centralised behind a shroud and below the dash, for additional convenience when trouble shooting.
SERVICEABILITY
WARRANTY
Hyundai’s industry-leading 2-year / 2,000 hour warranty demonstrates Hyundai’s commitment to product quality, reliability and support.
SAFETY
NEW HIGH VISIBILITY FOR SAFE OPERATION
The operator is able to work with increased safety and accuracy due to a wide view through the mast, standard mirrors and spacious compartment.
SAFETY
OPERATOR PRESENCE SENSING SYSTEM (OPSS)
Activating the OPSS disables the mast tilting, lifting and lowering functions when the operator is not in the seated position.
SAFETY
ADJUSTABLE STEERING WHEEL
Featuring a horn button and a right-hand lever, the steering wheel can be adjusted by the operator for comfortable positioning.
Product
Specifications
20, 25, 30, 35L-7SA
SpecificationsDownload Product Brochure
LOAD CAPACITY
2,000 - 3,500kg
TRAVEL SPEED (FULL LOAD)
20 kph (unloaded)
ENGINE MODEL
Nissan K25 (Japanese Built)
POWER (HP/RPM)
50HP/2350rpm
FUEL TYPE
LPG/ Gasoline
LENGTH TO FACE OF FORKS
2590mm to 2790mm
OVERHEAD GUARD HEIGHT
2145mm to 2170mm
