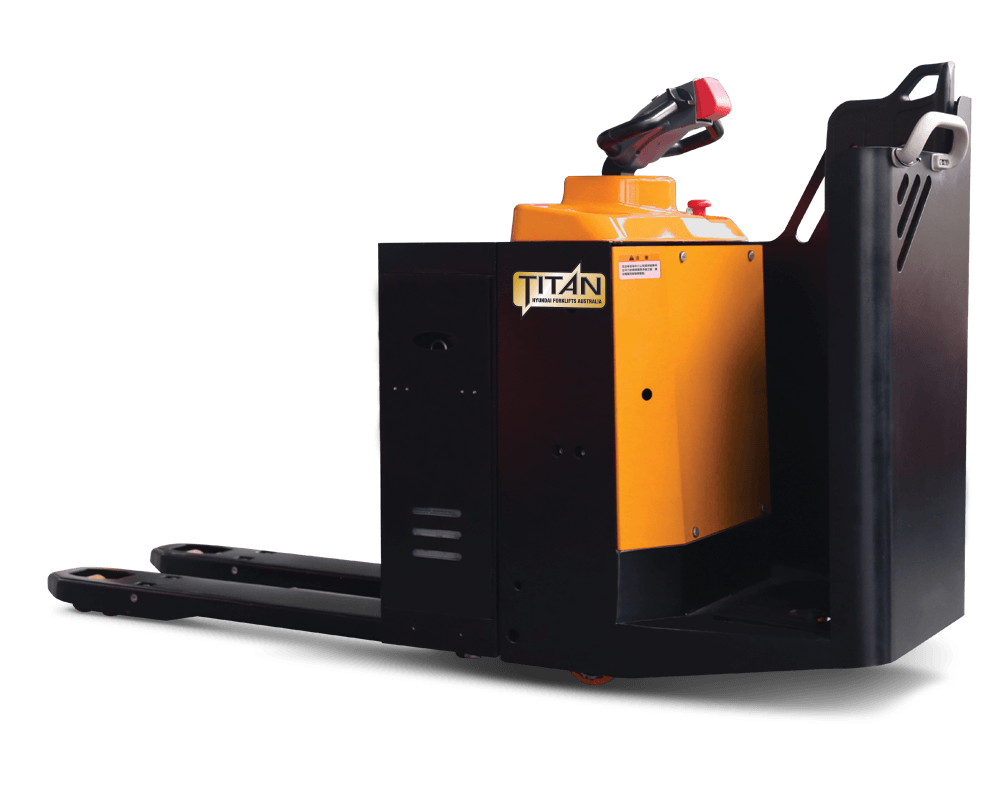

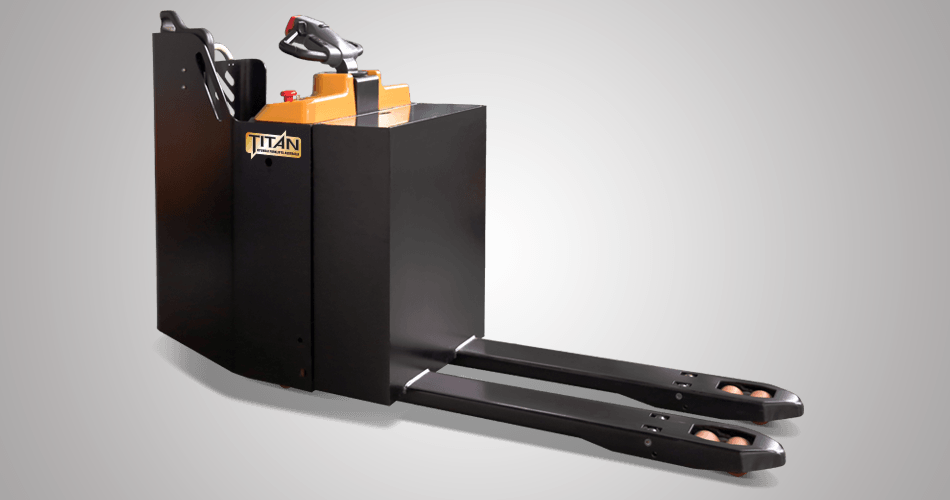

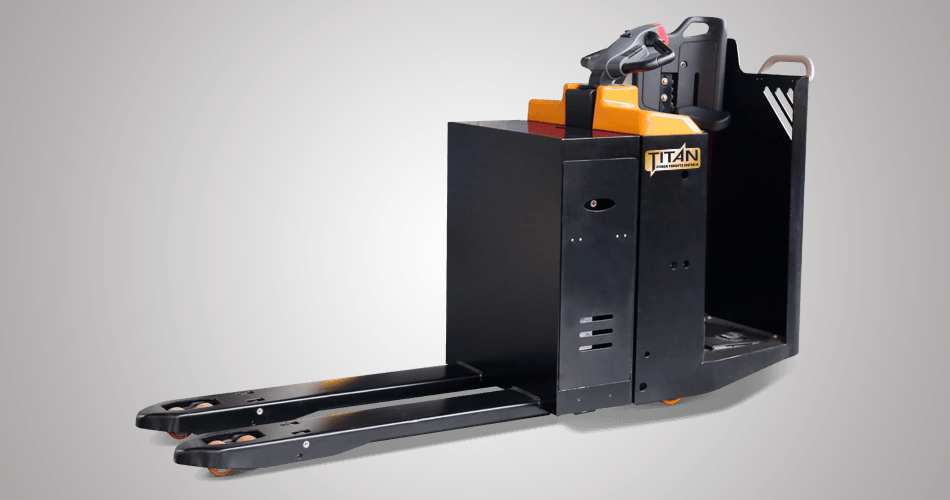

End Rider Pallet Truck

20ERP

End Rider Pallet Truck

20ERP

The 20ERP End Rider Pallet Truck is the safe choice in single pallet moving, the Half-surrounded operator compartment design ensure the operators kept safe, the Side leaning position provides better visablity and wider view when travelling both forwards and backwards

Battery voltage V
24
Battery capacity Ah
280
Load capacity kg
2000

Product

Features

V

Key Benefits

  • The innovative AC system offers strong power, accurate control, excellent performance.
  • High strength vertical gearbox, longer working life.
  • Low-noise with durable hydraulic unit, good quality cylinders and hoses ensure the high reliability of hydraulic system.
  • AMP connector and durable electric components greatly reduce malfunctions of components.
  • One-time formed fork, box type frame and adjustable linkage extends the life of undercarriage.
  • High speed (up to 12km/h Unladen), High efficiency of Material Handling Operations.

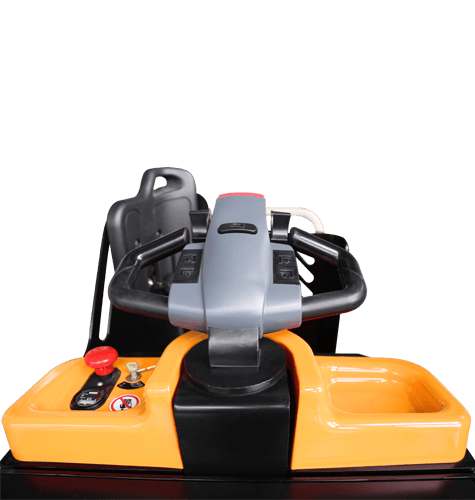

  • New design of ergonomic tiller head, all buttons can be reached conveniently & comfortably.

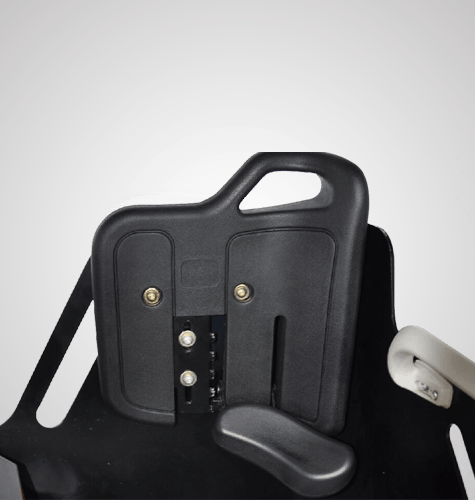

  • Backrest cushion, spacious operation room and vibration absorber pedal, Ensures operator feels more comfortable over long shifts.
  • The unique suspension driving floating system (DFA) design, ensures the stability in high speed.
  • Side-open battery compartment design for easy replacement and maintenance.
  • Electric power steering, smooth & comfortable (EPS).

Safety

  • Advanced AC control system eliminats directional contactors, which brings minimal maintenance requirements. (18/20EP Only)
  • Intelligentized regenerative brake system: increase overall truck performance.
  • Side-way battery with roll-out system. (18/20EP Only) • Emergency switch.
  • Half-surrounded operator compartment design.
  • Side leaning position provides wider view when travel forwards and backward.
  • Safety foot switch avoids operators from mis-operation.
  • Automatic engaging brake and reverse current braking when foot switch is off, or travel switch is neutral.
  • Emergency reverse belly button protects the operator from getting hurt.
  • Anti-rolling back holds the truck on an incline.
  • Dual-monitoring power steering, the top safety design (electric steering).

Product

Specifications

20ERP

Specifications Download Product Brochure

Battery voltage V
24
Battery capacity Ah
280
Load capacity kg
2000
Load center mm
600
Lift height mm
125
Turning radius mm
2075
Travel speed km/h
9 to 12
