DIESEL (PREMIUM MODEL)
50, 70D-9
TIER 4 ENGINE

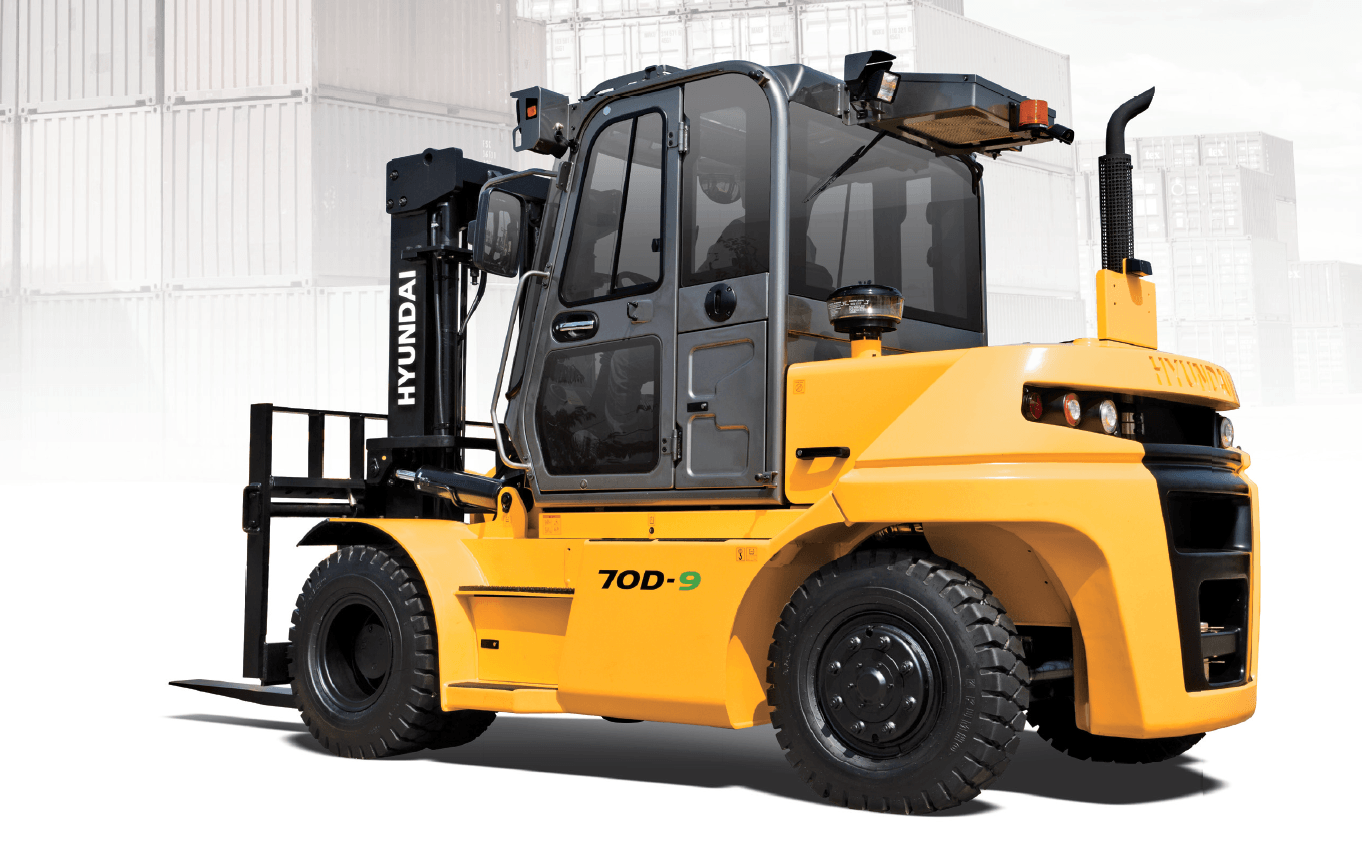

Hyundai introduces a new line of 9-series diesel forklift trucks. The newly designed four-wheel counterbalance trucks provide operator comfort, increased productivity and easy maintenance.
DIESEL (PREMIUM MODEL)
50, 70D-9
TIER 4 ENGINE
LOAD CAPACITY
5,000kg to 7,000kg
ENGINE POWER
101 hp / 2,200 rpm
ENGINE MANUFACTURER
Cummins QSF3.8
Product
Features
PERFORMANCE

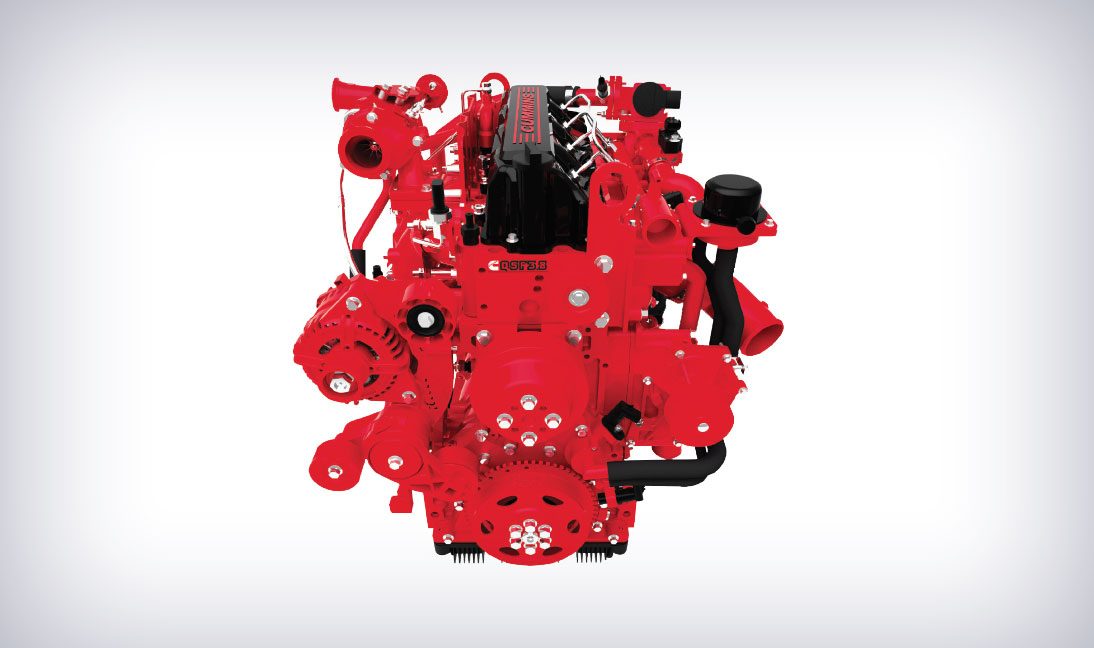

POWERFUL ENGINE
The Cummins QSF3.8 four-cylinder, turbo-charged engine is built for power, reliability and fuel economy. This engine meets EPA Tier 4 and EU Stage IV emissions regulations.
PERFORMANCE

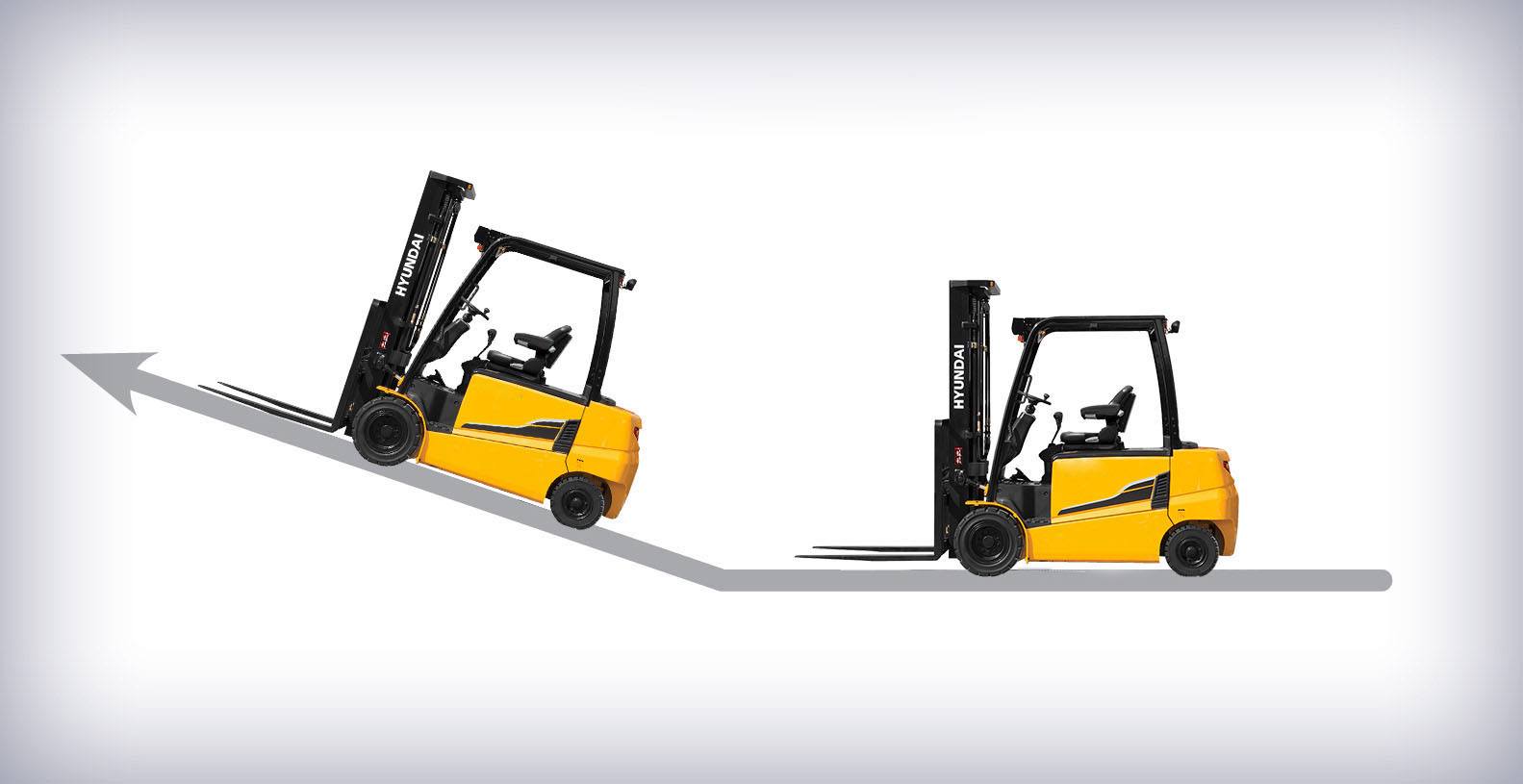

EXCELLENT GRADEABILITY
The powerful engine provides greater acceleration, improved gradeability, and faster travel speed in the toughest terrains and on the steepest slopes.
PERFORMANCE

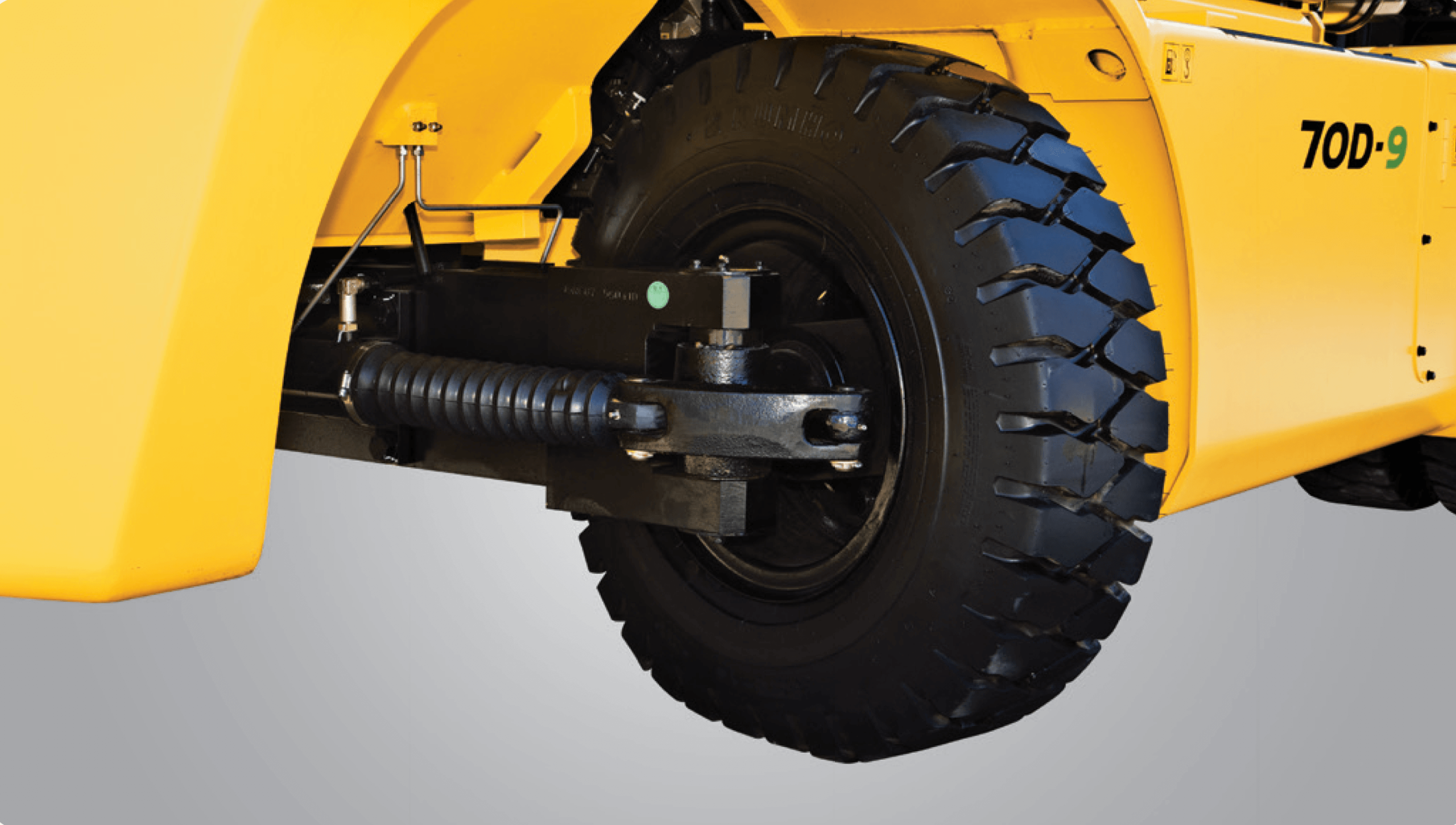

FULLY HYDROSTATIC POWER STEERING
The hydraulic steering system ensures smooth and flexible steering, preventing overrun and kick-back.
PERFORMANCE

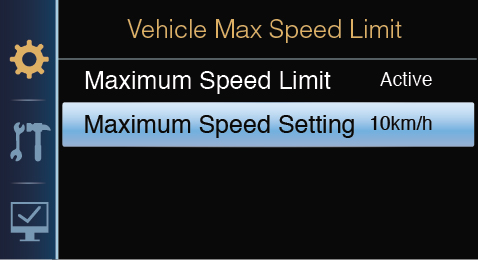

ADJUSTABLE SPEED LIMIT FUNCTION
The “Vehicle Max Speed Limit” function lets the operator set the maximum speed limit between 8-19.3 kph allowing for increased safety.
ERGONOMICS

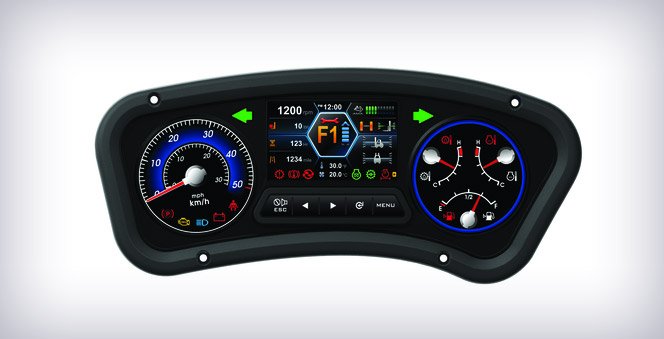

NEWLY DESIGNED CLUSTER PANEL
With the newly designed cluster panel, the operator can control the machine with ease, while checking speed, travel direction, and battery discharge.
ERGONOMICS

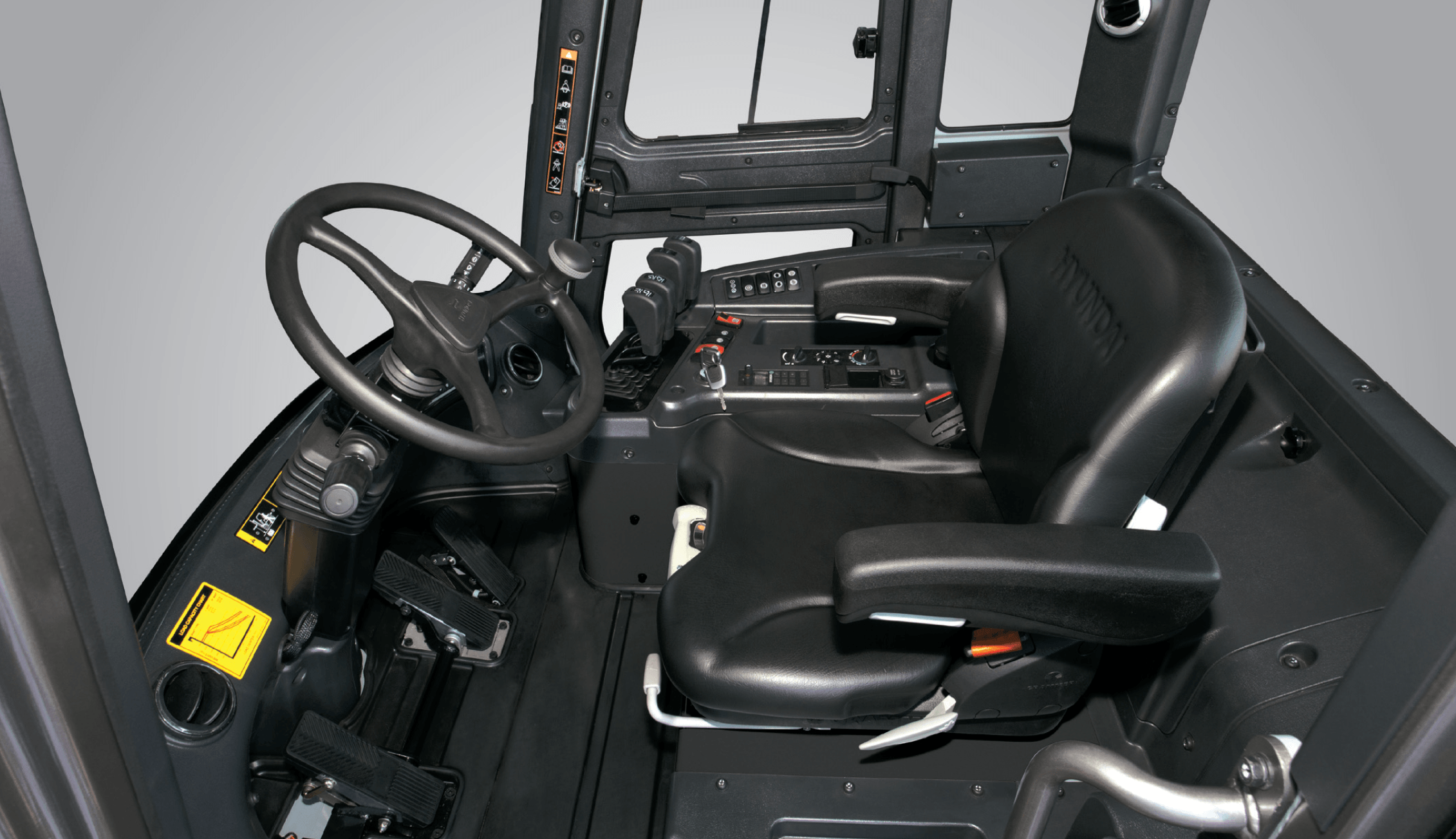

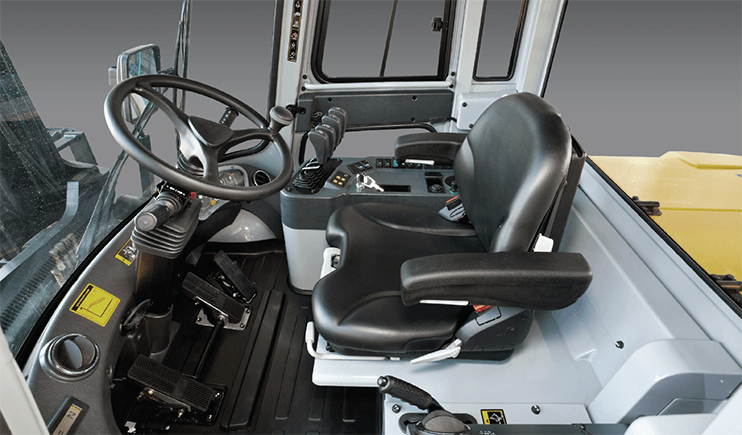

SPACIOUS OPERATOR COMPARTMENT
The newly designed cab provides more space, a wider field of view, and increased operator comfort.
ERGONOMICS

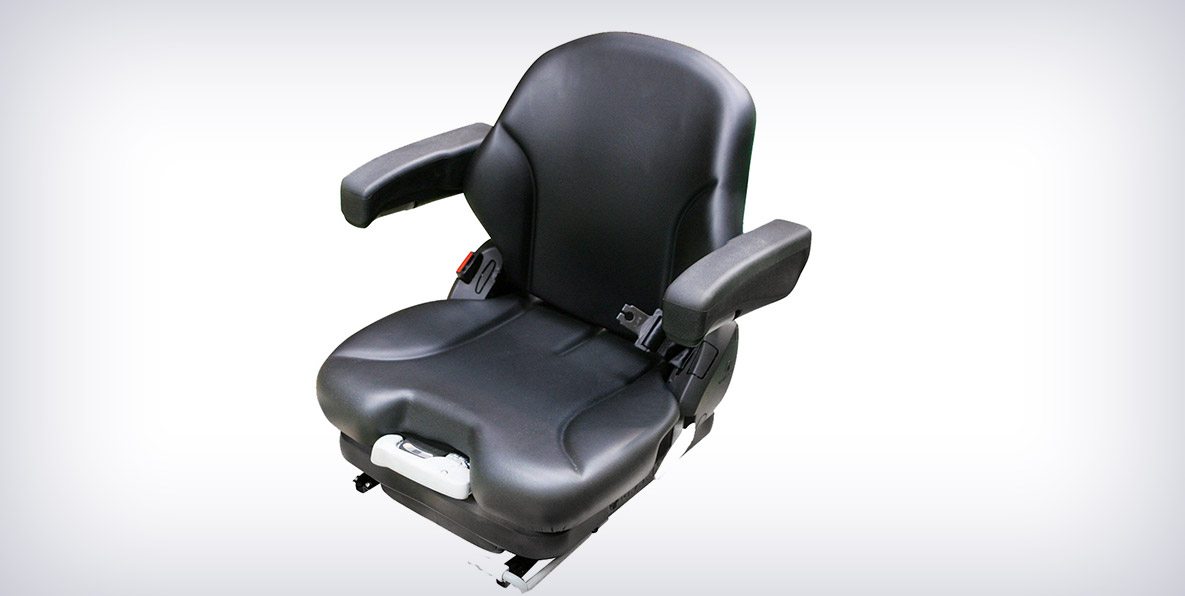

GRAMMER™ FULL SUSPENSION SEAT
An easily adjustable, ergonomic seat provides unmatched comfort and reduces operator fatigue.
ERGONOMICS
LOAD INDICATOR SYSTEM
The optional load indicator alerts the operator when the machine is overloaded.
SERVICEABILITY

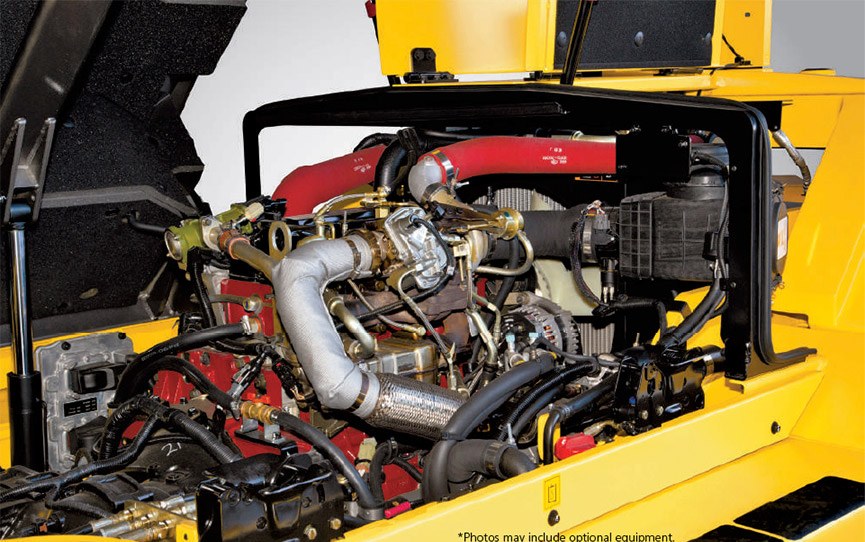

EASY SERVICE ACCESS
The highly accessible engine compartment assures fast, efficient maintenance.
SERVICEABILITY
ONBOARD DIAGNOSTICS
On-board diagnostics are easily accessible through the color LCD monitor for improved serviceability and reduced downtime and cost.
SERVICEABILITY
WARRANTY
Hyundai’s industry-leading 3-year / 3,000 hour warranty demonstrates Hyundai’s commitment to product quality, reliability and support.
SERVICEABILITY

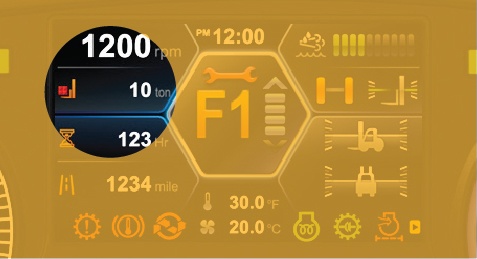

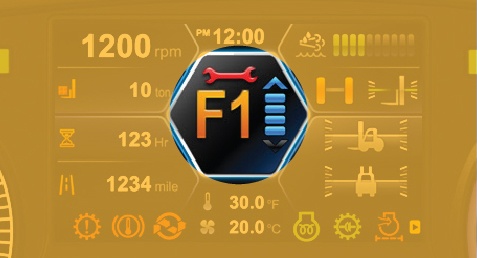

MAINTENANCE MANAGEMENT DISPLAY
Self Diagnostic Function – If a system error should occur, a wrench appears on the display, combined with indication of the error number.
SAFETY

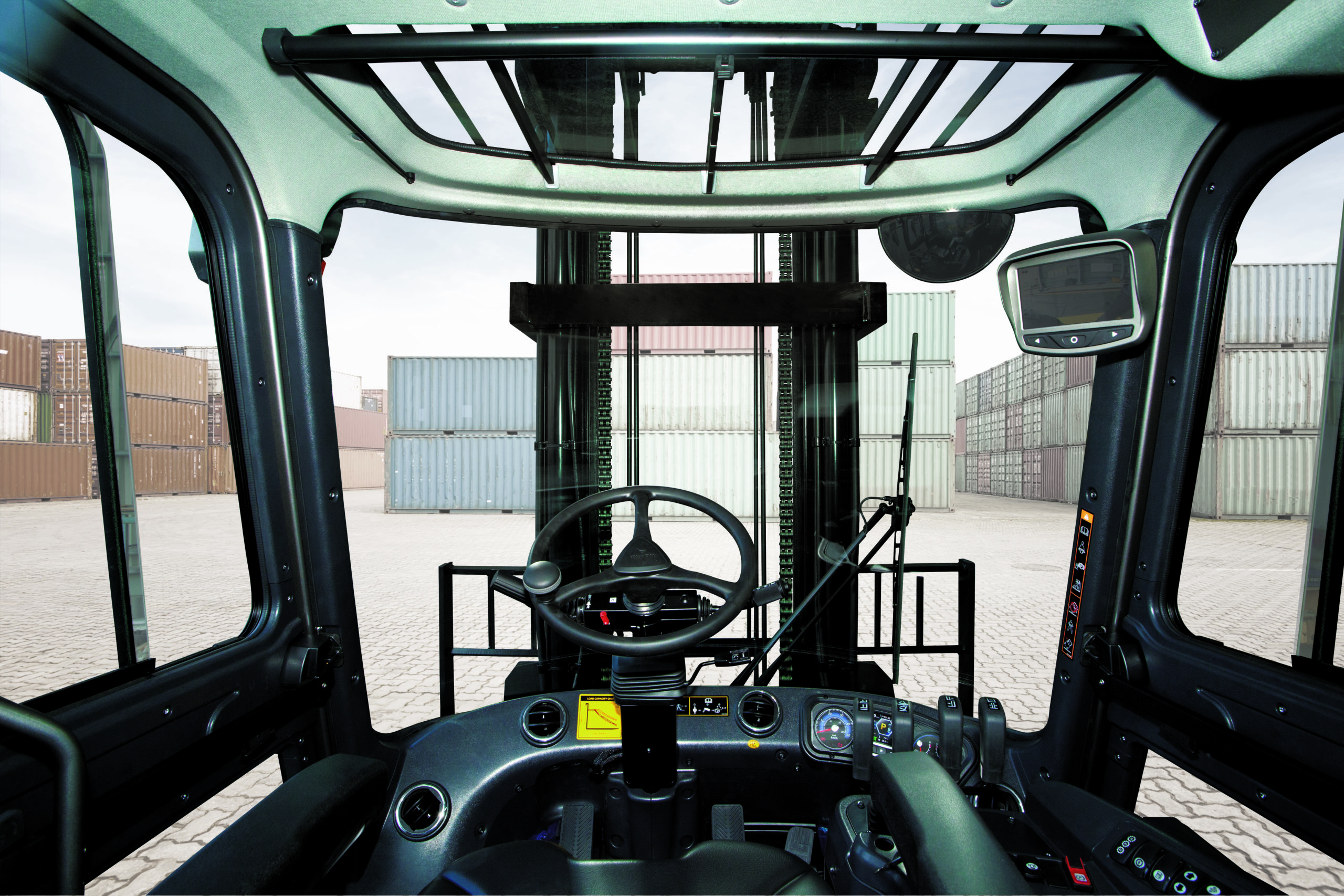

EXCELLENT VISIBILITY
The optimised lift cylinder arrangement provides the operator with a wider view of the work environment.
SAFETY

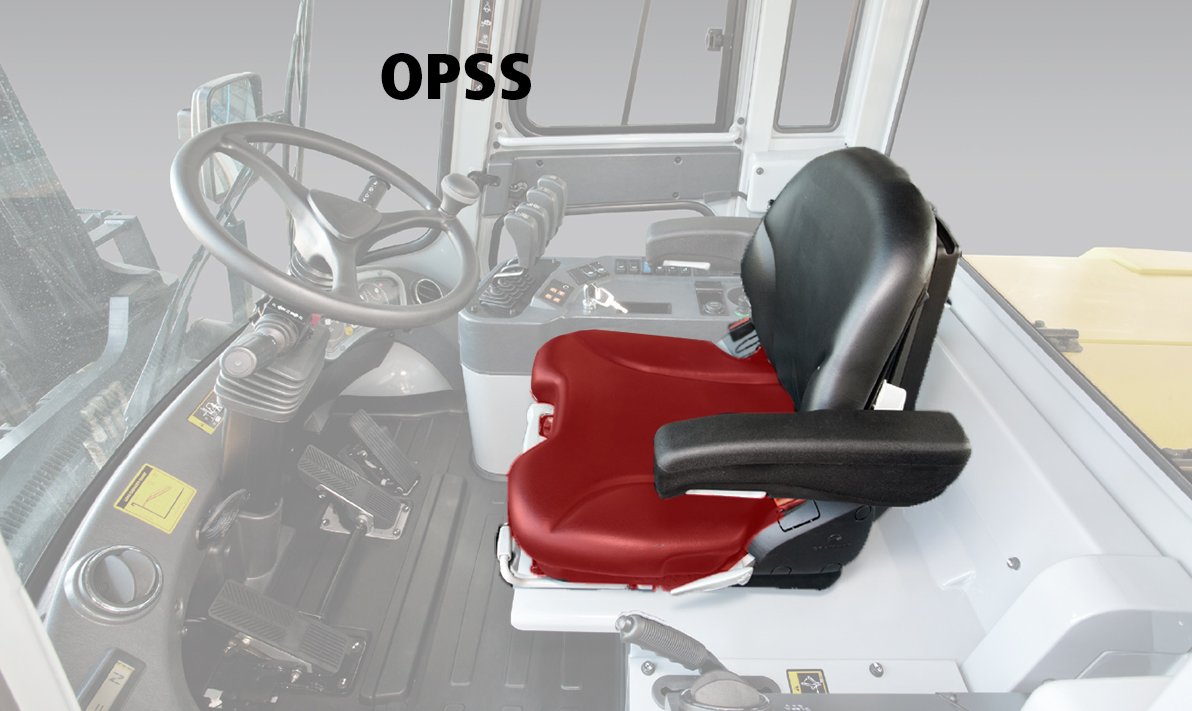

OPERATOR PRESENCE SENSING SYSTEM (OPSS)
All mast and drive movements stop functioning when the operator is not in the seat
SAFETY

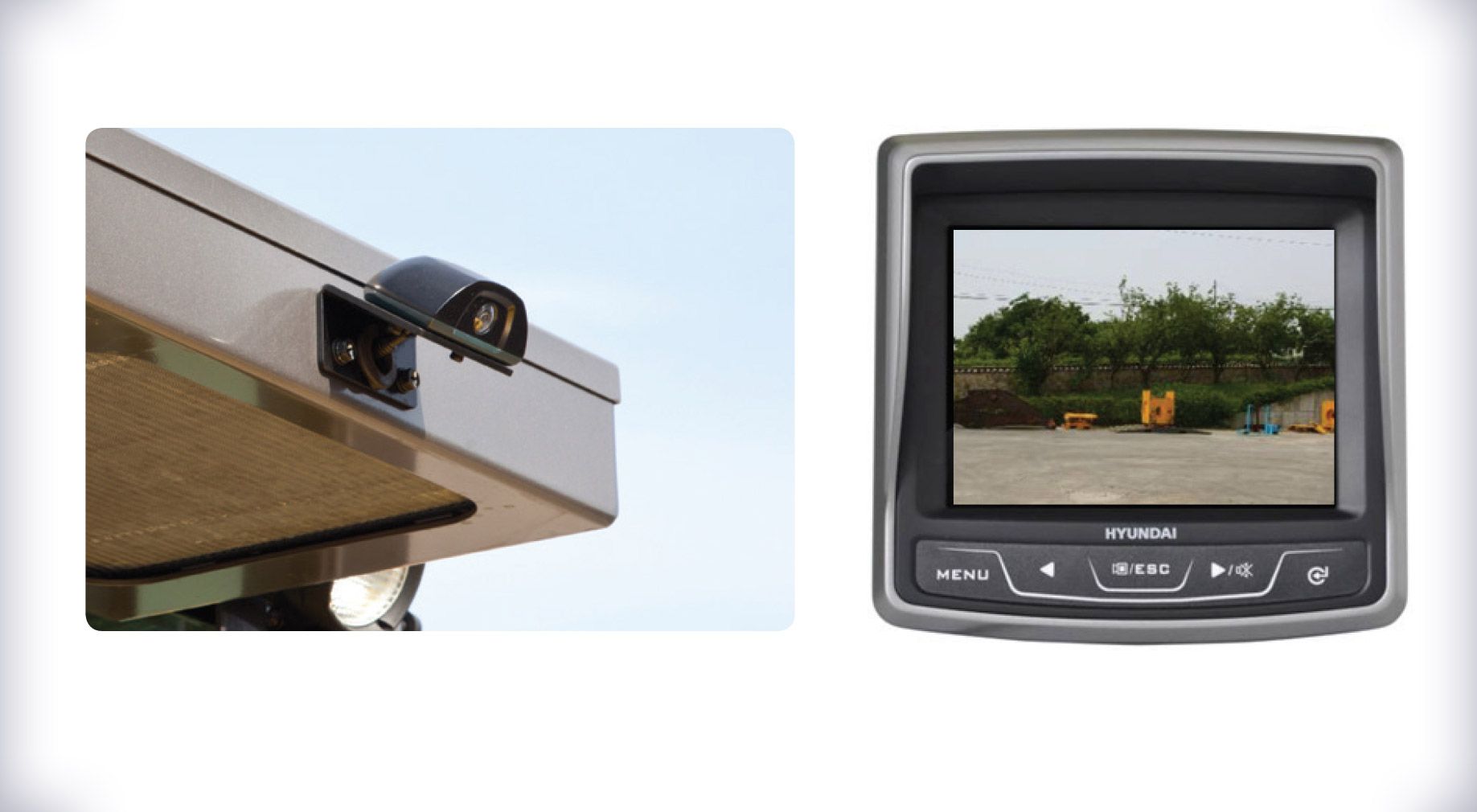

REARVIEW CAMERA
An optional rearview camera provides additional visibility when backing up.
SAFETY

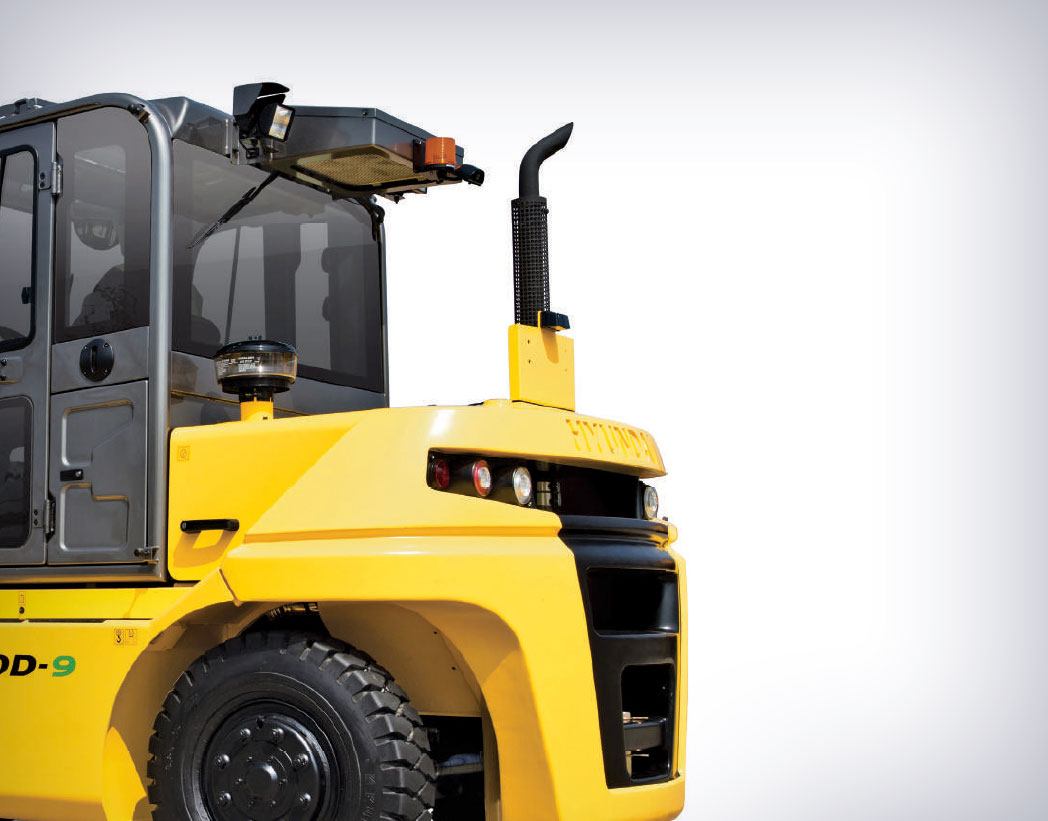

SAFETY LAMPS AND REAR REFLECTORS
Halogen headlights and rear LED combination lights provide greater visibility in all conditions. Rear reflectors mounted on the counterweight enhance operator and job site safety.
Product
Specifications
50, 70D-9
SpecificationsDownload Product Brochure
LOAD CAPACITY
5,000kg to 7,000kg
TRAVEL SPEED (FULL LOAD)
33.5 kph to 33.8 kph
ENGINE MODEL
CUMMINS QSF3.8 Tier 4 Final
POWER (HP/RPM)
101 hp / 2,200 rpm
FUEL TYPE
Diesel
LENGTH TO FACE OF FORKS
3,505mm to 3,658mm
OVERHEAD GUARD HEIGHT
2591mm
OVERALL WIDTH
2,083mm
