WAREHOUSE ORDER PICKER

10, 13 BOP-7

HIGH LEVEL

WAREHOUSE ORDER PICKER

10, 13 BOP-7

HIGH LEVEL

Smooth running, efficiently and ergonomically designed, 10/13BOP-7 series order pickers are built to meet your needs.

LOAD CAPACITY
1,000kg to 1,300kg
POWER TYPE
Battery
BATTERY INFO
Battery Voltage: 36 & 48 V

Product

Features

V

PERFORMANCE

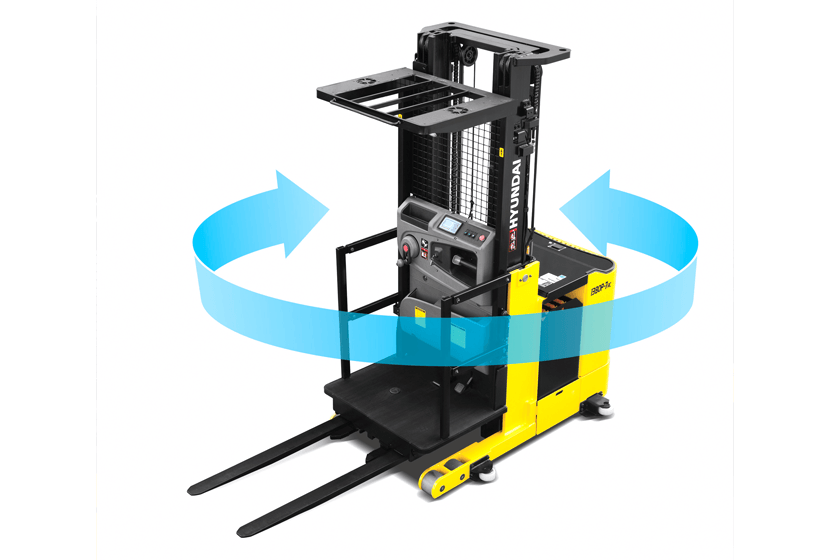

MINIMUM TURNING RADIUS

Suitable for narrow aisle operation, the compact design guarantees work efficiency and maximum space usage.

PERFORMANCE

100% AC ZAPI CONTROL SYSTEM

The enclosed drive and pump motor with AC technology combine power, high maintenance intervals and excellent durability. The ZF transmission converts the drive engine’s power to any direction the driver requires.

PERFORMANCE

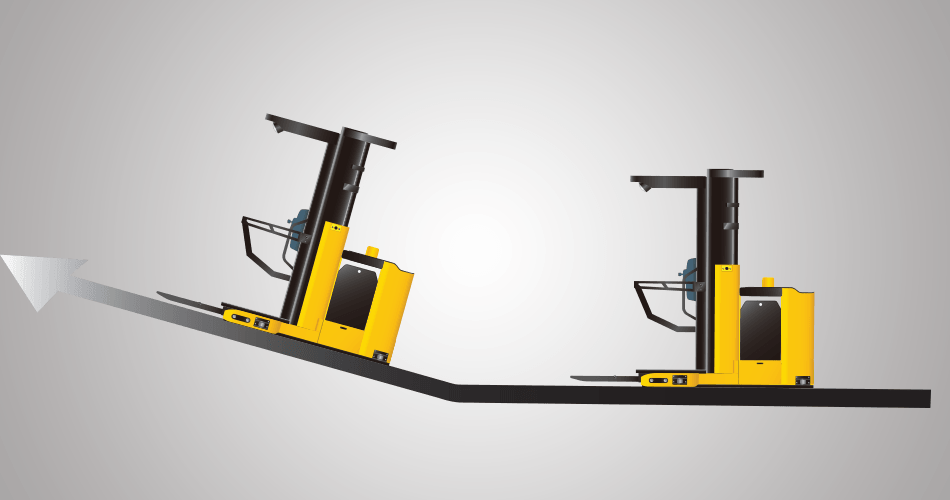

ANTI-ROLL BACK SYSTEM

Anti Roll-back system offers protection against the machine rolling back on a ramp in combination with exceptional ramp start capabilities.

PERFORMANCE

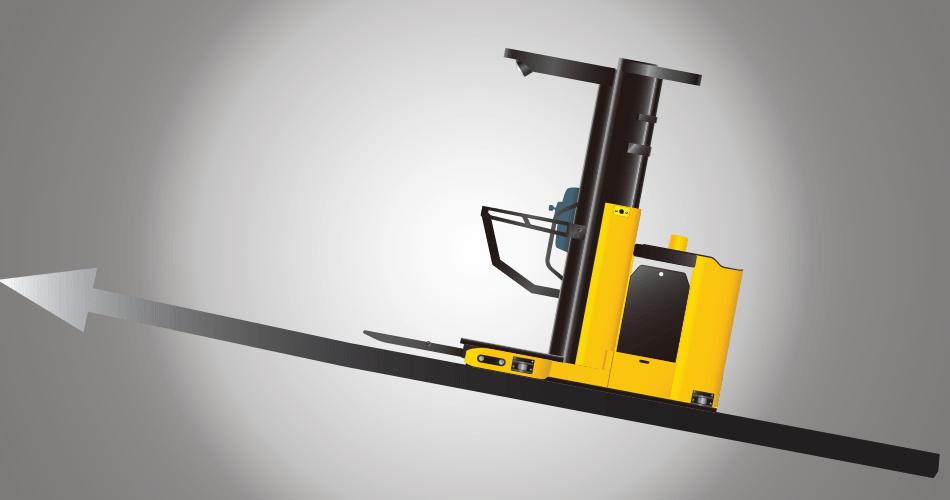

EXCELLENT GRADEABILITY

The gradeability ranges from 13%-18% with a max speed of 12.9 km per hour.

CONVENIENCE

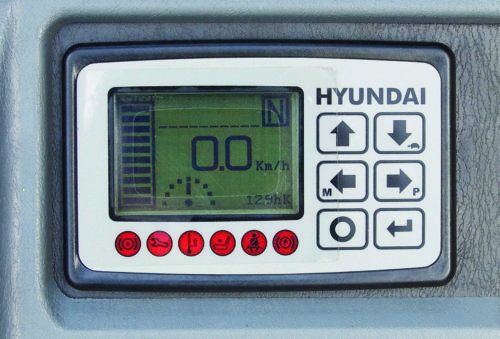

ADVANCED 3.5 INCH LCD MONITOR

The LCD monitor with 3.2 inch graphic smart display allows the operator to easily and efficiently control the machine. The monitor provides information about speed & accelerator level, steer angle & travel direction, battery discharge indicator, hour meter & working mode.

CONVENIENCE

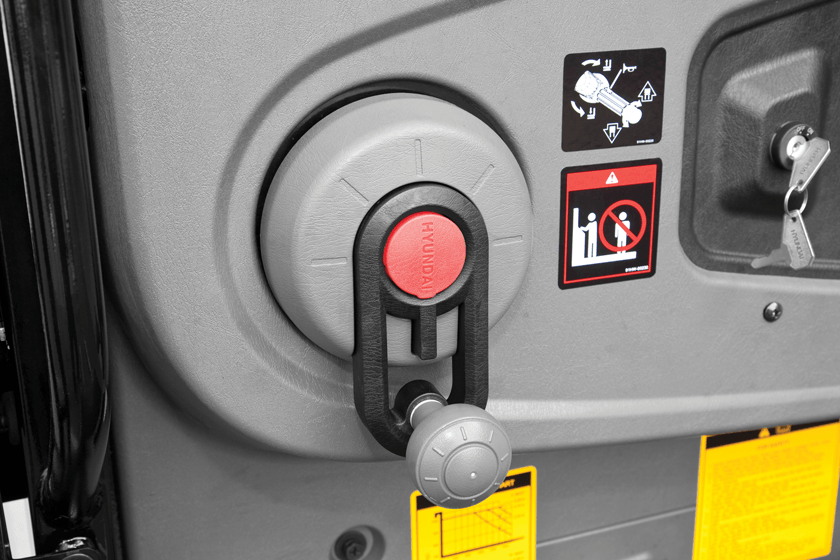

NEWLY DESIGNED STEER CONTROL HANDLE

The newly designed steering control, coupled with a new electric power steering control, provides exceptionally smooth and precise steering for tight spaces.

CONVENIENCE

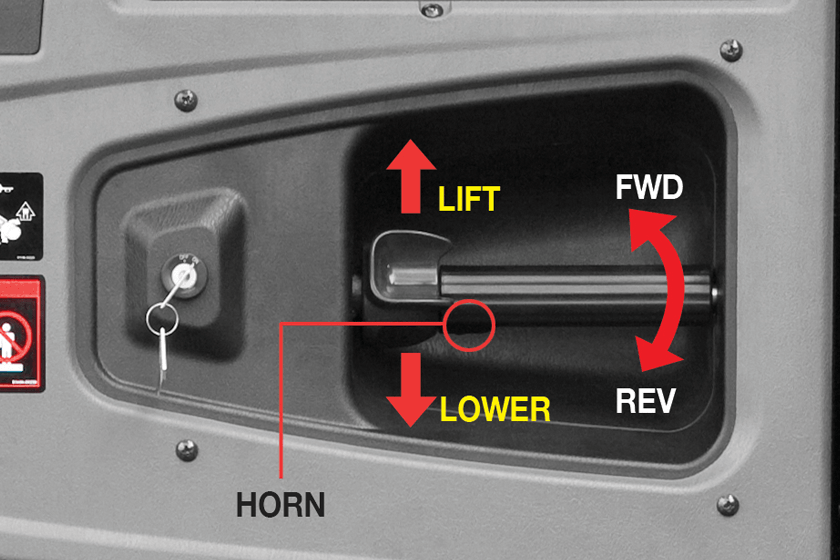

USER FRIENDLY HYDRAULIC CONTROL LEVERS

The ergonomic control lever allows the operator to raise and lower the platform, and control the travel function and horn, with just one hand.

CONVENIENCE

LOAD INDICATOR SYSTEM

The standard load indicator displays the load weight in the monitor. The operator can select various performance modes to meet all working conditions.

SERVICEABILITY

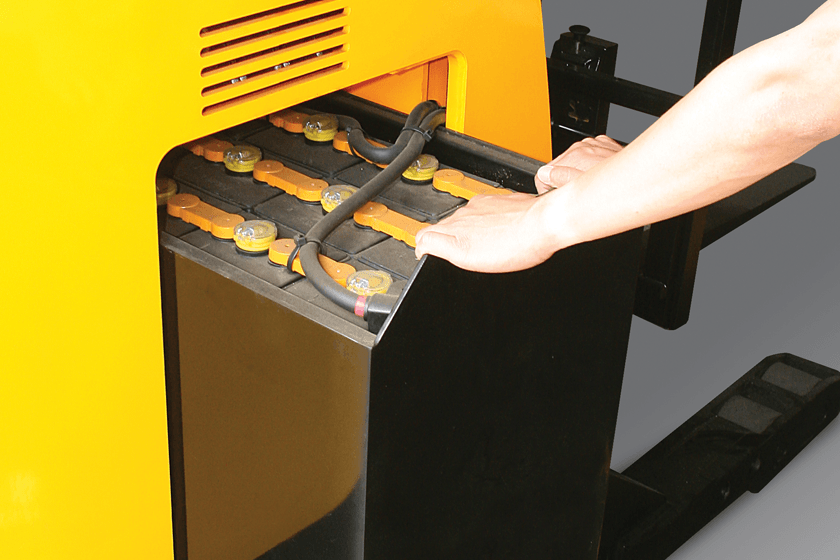

EASY BATTERY REPLACEMENT

The battery compartment is equipped with a side battery removal assembly for easy removal and replacement.

SERVICEABILITY

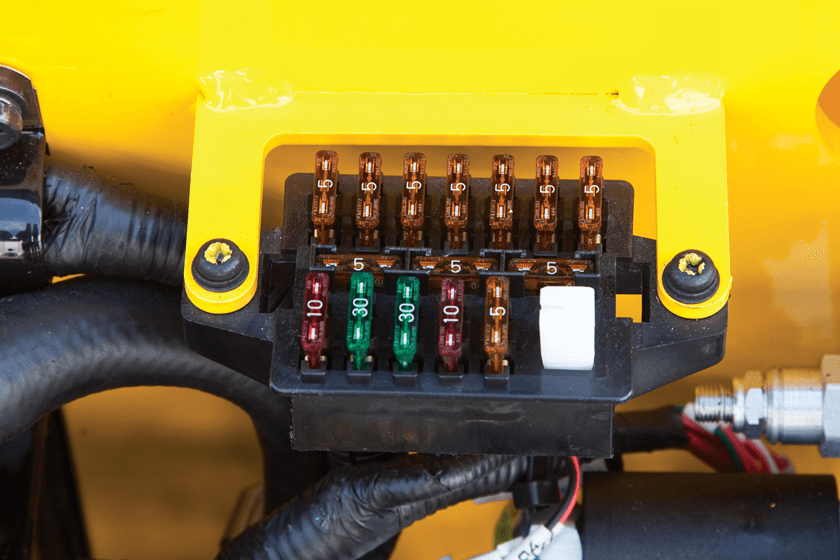

CENTRALIZED FUSE BOX

Centralized fuse box for easy inspection.

SERVICEABILITY

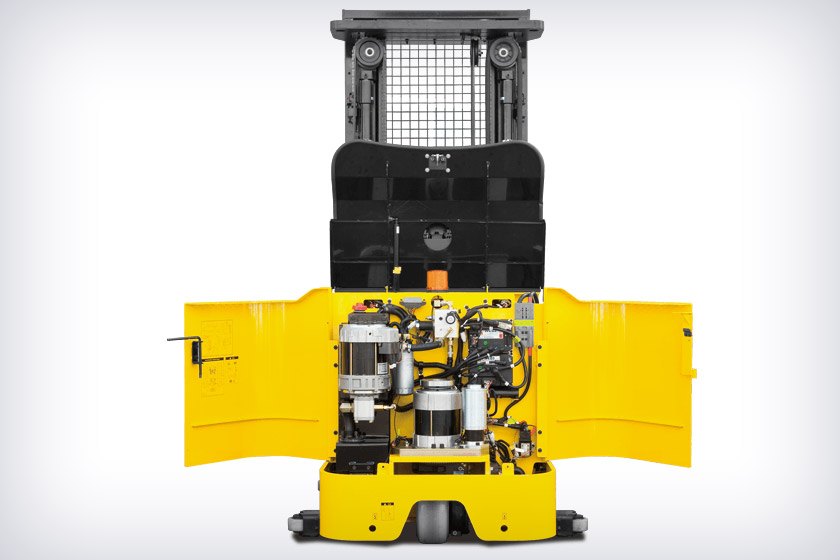

EASY SERVICE ACCESS

Large opening double doors allow access to an ideal arrangement of component parts ensures easy access and convenience for maintenance.

SAFETY

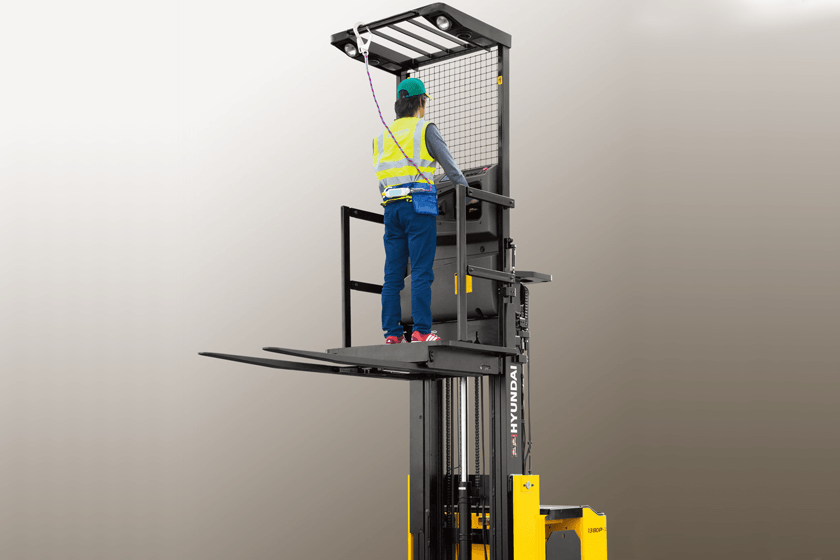

EXCELLENT VISIBILITY

Optimized lift cylinder arrangement provides operator with wider visibility. The panoramic mirror expands the driver’s view when backing up.

SAFETY

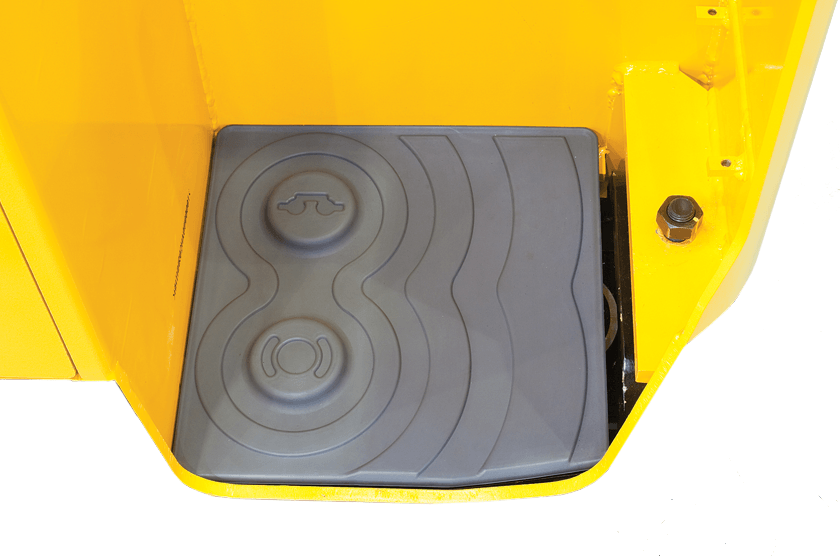

NON-SLIP FLOOR MAT

A heavy, vibration-dampening, non-slip floor mat reduces operator fatigue and increases productivity.

SAFETY

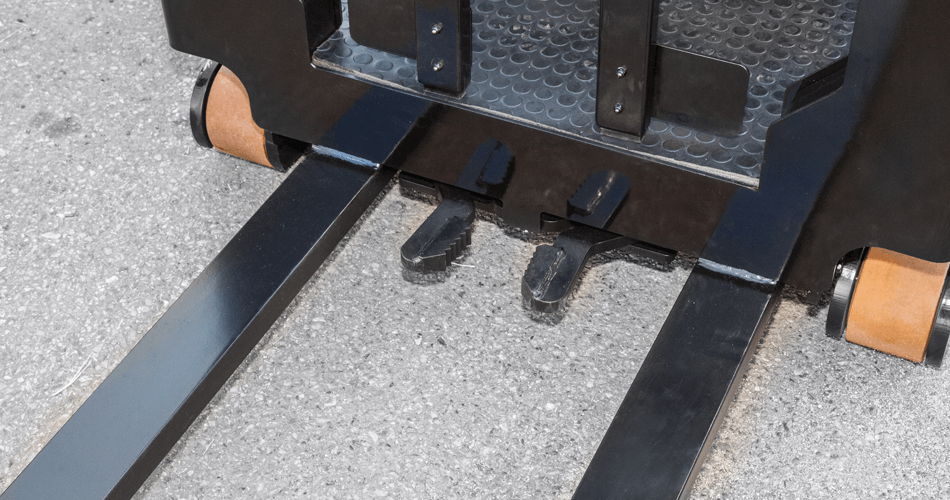

ADJUSTABLE PALLET CLAMP

Adjustable pallet clamp, secures the pallet to the forks and removes the risk of the pallet sliding off at height.

SAFETY

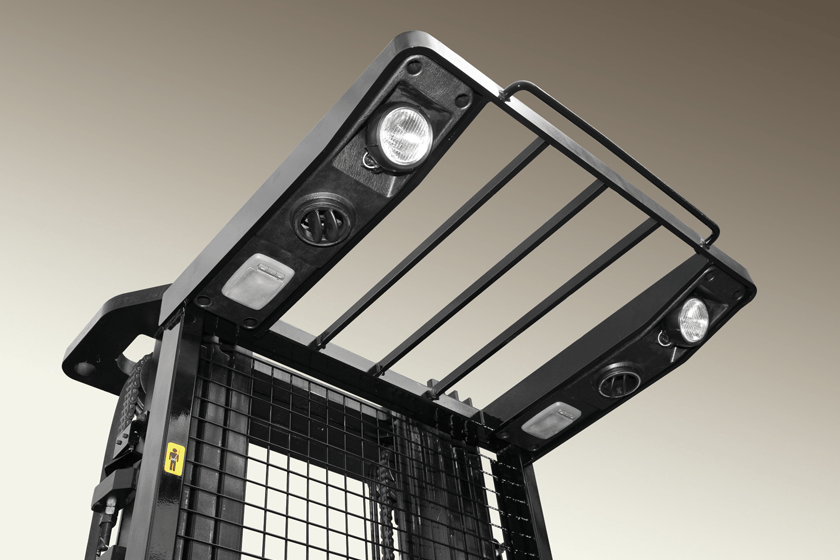

STRONG OVERHEAD GUARD

Exceeding CEE and ANSI regulations, the overhead guard offers great protection combined with excellent all round visibility.

Product

Specifications

10, 13 BOP-7

SpecificationsDownload Product Brochure

LOAD CAPACITY
1,000kg to 1,300kg
TRAVEL SPEED (FULL LOAD)
12.9 kph
LENGTH TO WORKFACE
1,880mm to 1,930mm
MAST LOWERED HEIGHT
2,220mm
OVERALL WIDTH
1,021mm/1,049mm (1,250mm)
