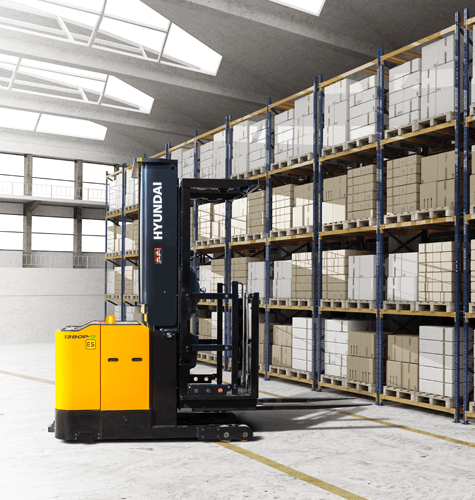

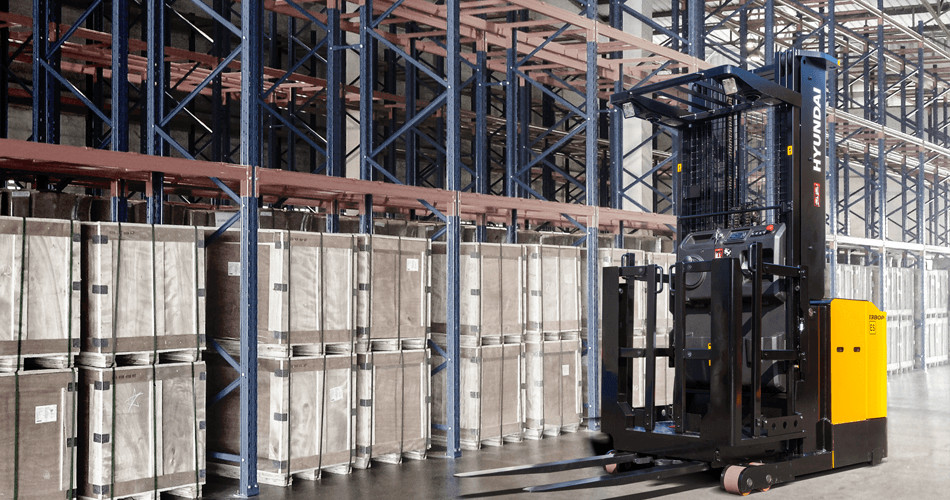

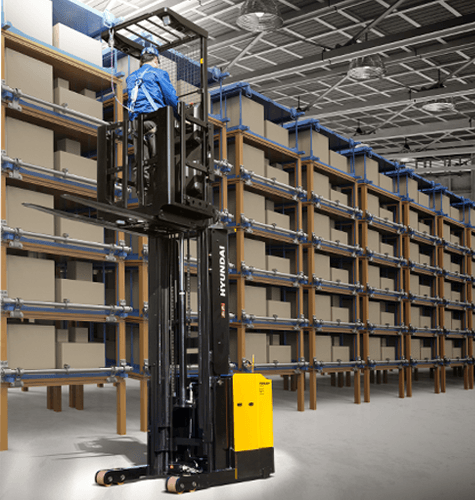

WAREHOUSE ORDER PICKER

10, 13 BOP-9

HIGH LEVEL (WIRE GUIDANCE MODEL)

WAREHOUSE ORDER PICKER

10, 13 BOP-9

HIGH LEVEL (WIRE GUIDANCE MODEL)

Smooth running, efficiently and ergonomically designed, the 10/13BOP-9 are the latested in the hyundai range of order pickers .

LOAD CAPACITY
1,000kg to 1,300kg
POWER TYPE
Battery
BATTERY INFO
Battery Voltage: 36 & 48 V

Product

Features

V

PERFORMANCE

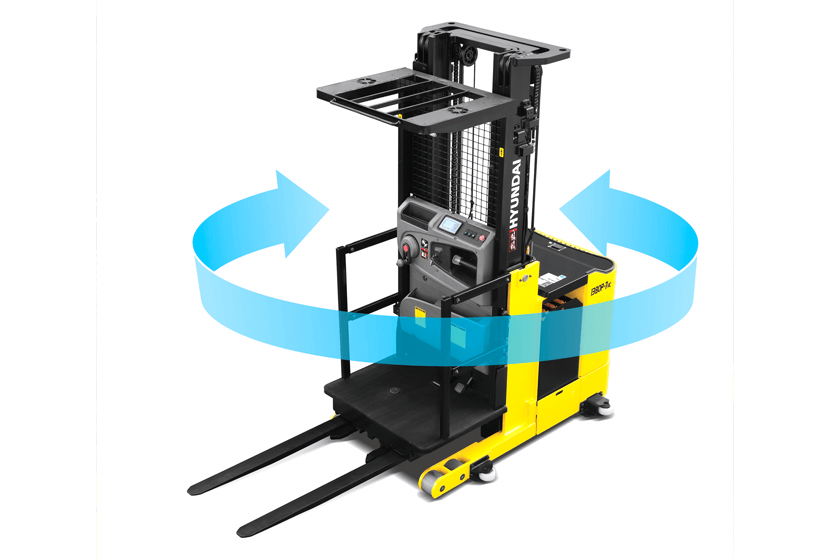

MINIMUM TURNING RADIUS

Suitable for narrow aisle operation, the compact design guarantees work efficiency and maximum space usage.

PERFORMANCE

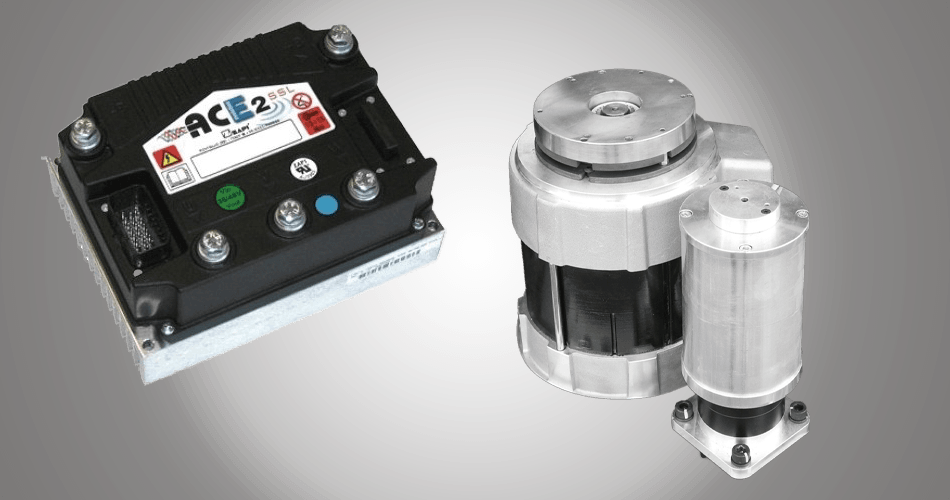

100% AC ZAPI CONTROL SYSTEM

The enclosed drive and pump motor with AC technology combine power, high maintenance intervals and excellent durability. The ZF transmission converts the drive engine’s power to any direction the driver requires.

PERFORMANCE

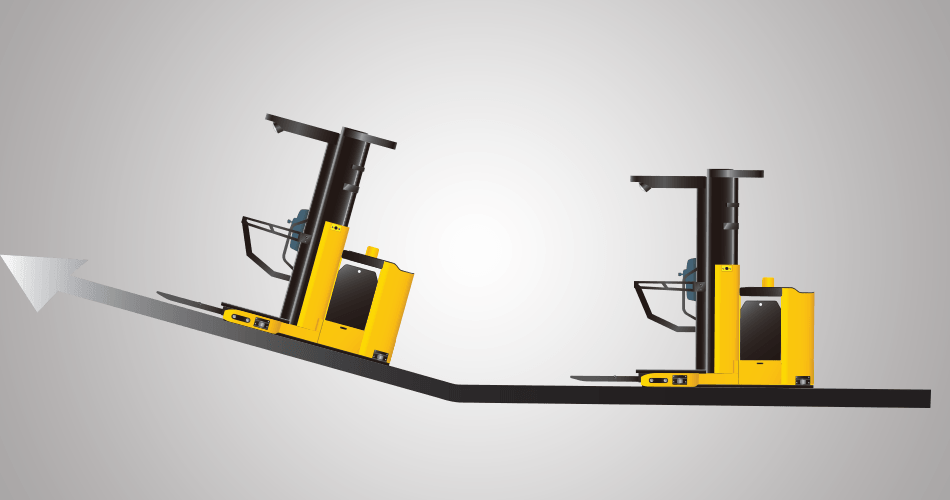

ANTI-ROLL BACK SYSTEM

Anti Roll-back system offers protection against the machine rolling back on a ramp in combination with exceptional ramp start capabilities.

PERFORMANCE

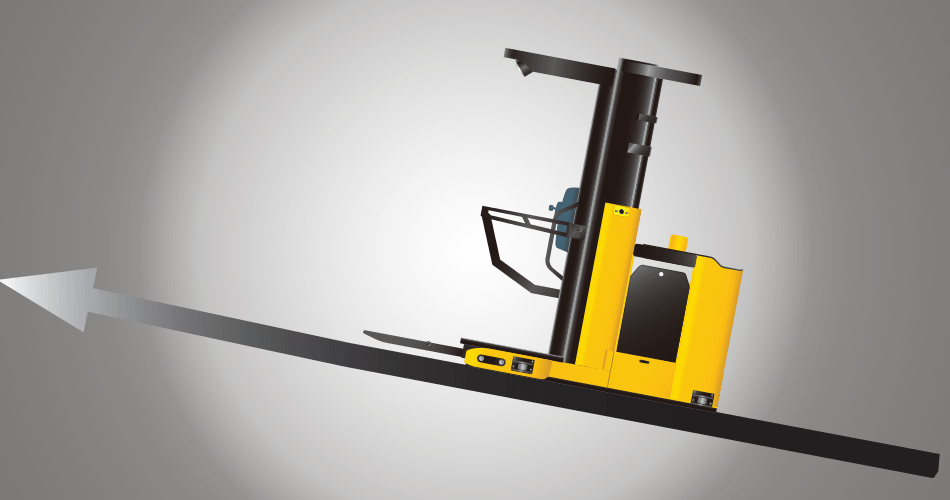

EXCELLENT GRADEABILITY

The gradeability ranges from 13%-18% with a max speed of 12.9 km per hour.

CONVENIENCE

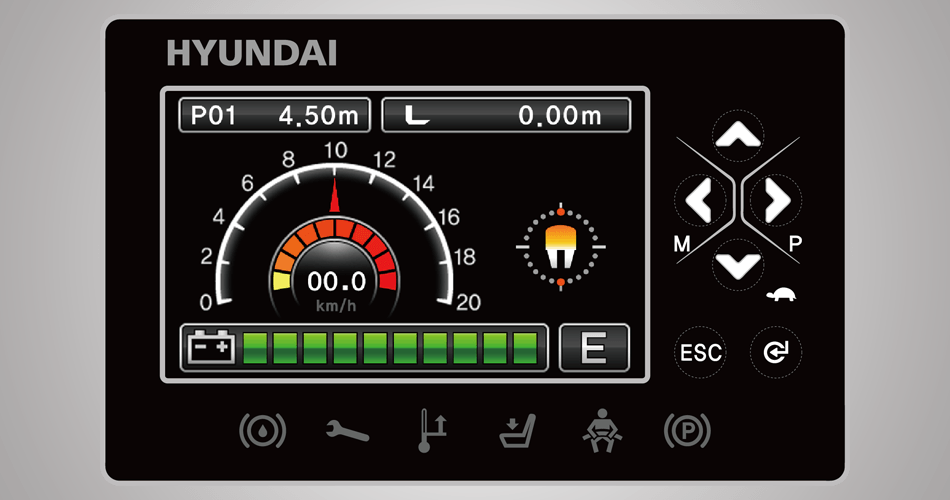

ADVANCED 3.5 INCH LCD MONITOR

The LCD monitor with 3.2 inch graphic smart display allows the operator to easily and efficiently control the machine. The monitor provides information about speed & accelerator level, steer angle & travel direction, battery discharge indicator, hour meter & working mode.

CONVENIENCE

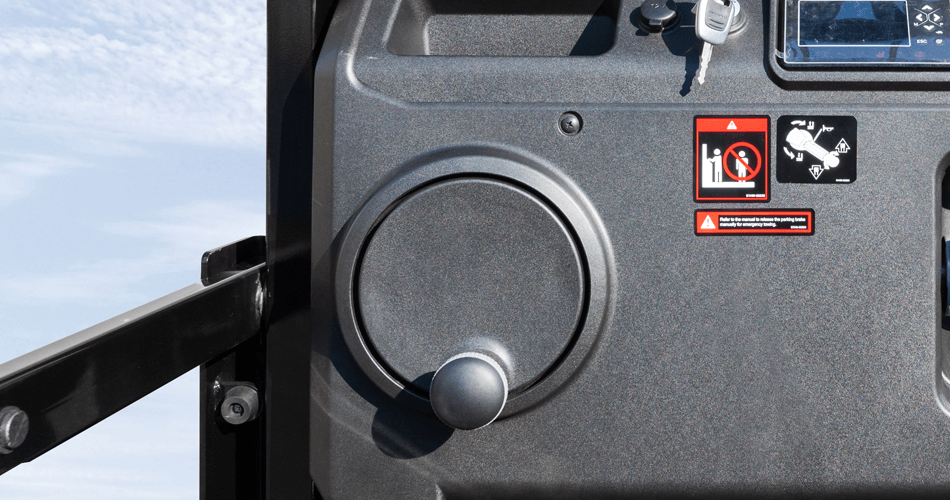

NEWLY DESIGNED STEER CONTROL HANDLE

The newly designed steering control, coupled with a new electric power steering control, provides exceptionally smooth and precise steering for tight spaces.

CONVENIENCE

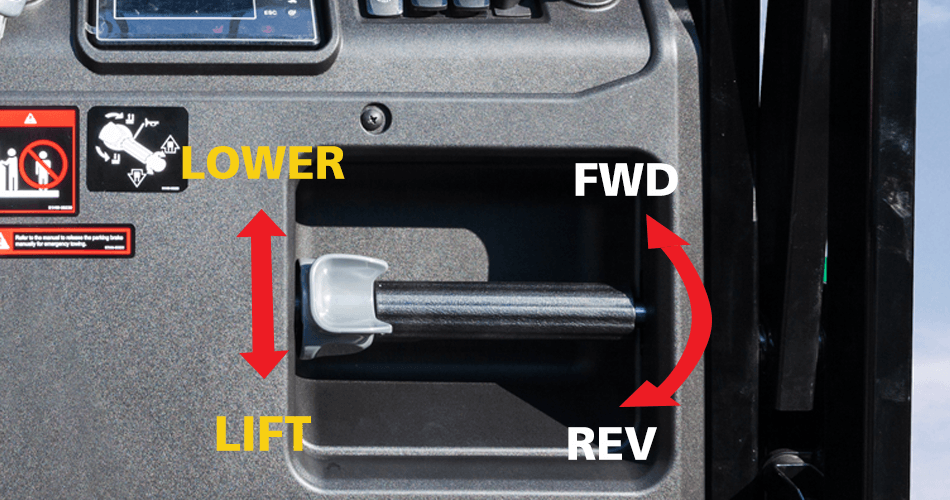

USER FRIENDLY HYDRAULIC CONTROL LEVERS

The ergonomic control lever allows the operator to raise and lower the platform, and control the travel function and horn, with just one hand.

CONVENIENCE

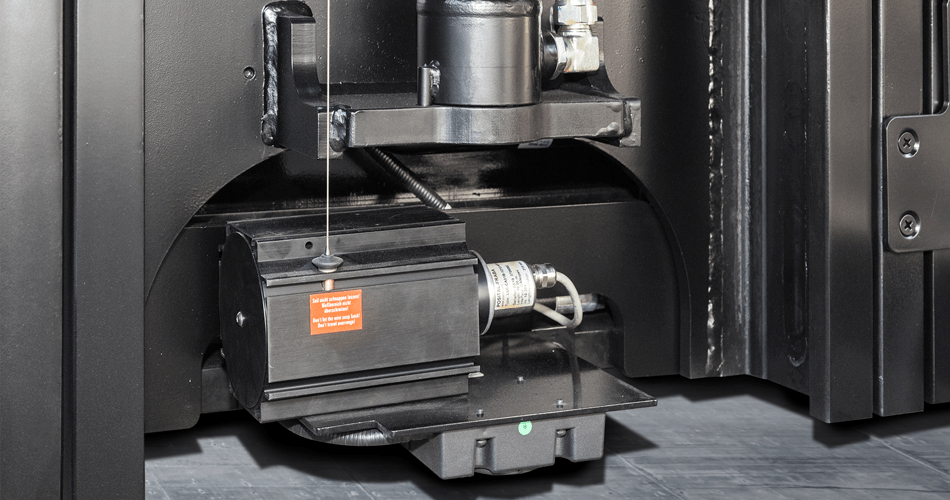

WIRE GUIDANCE

Wire Guidance is an electronic and mechanical system that controls the forklifts steering by tracking an energized guidewire. resulting in decreased product and rack damage, operator injuries, and lift truck impacts.

SERVICEABILITY

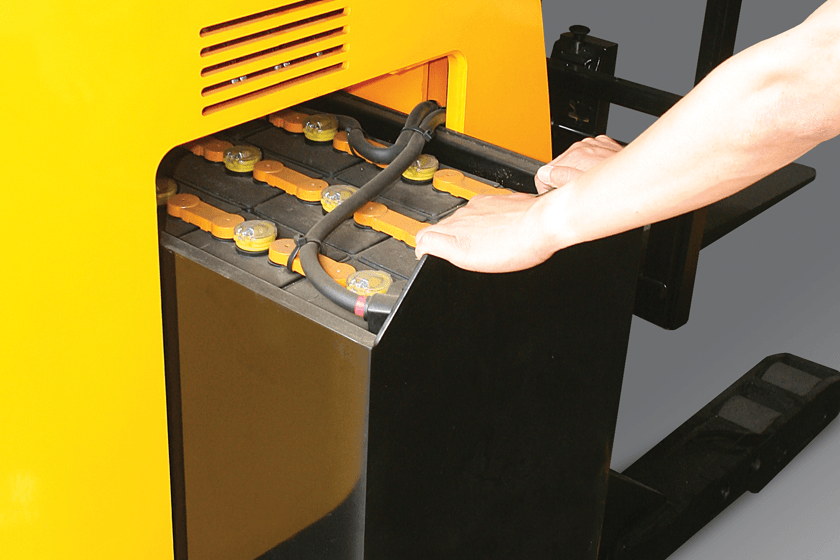

EASY BATTERY REPLACEMENT

The battery compartment is equipped with a side battery removal assembly for easy removal and replacement.

SERVICEABILITY

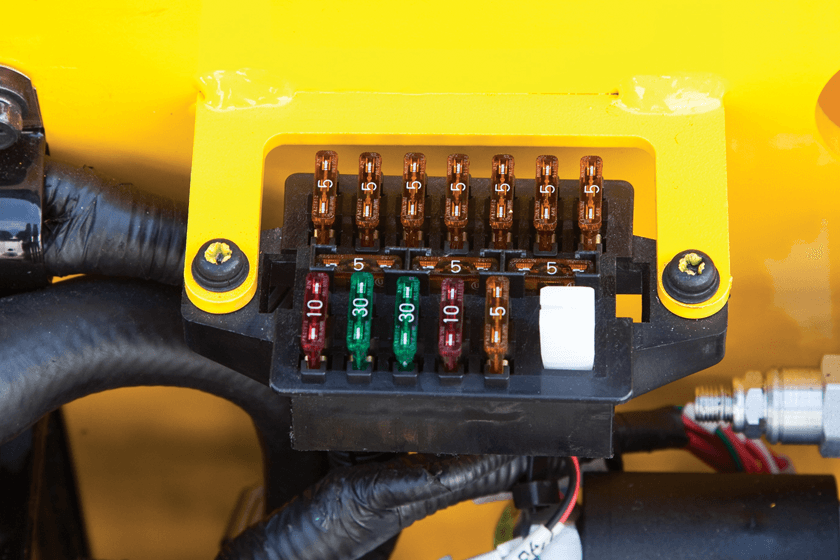

CENTRALIZED FUSE BOX

Centralized fuse box for easy inspection.

SERVICEABILITY

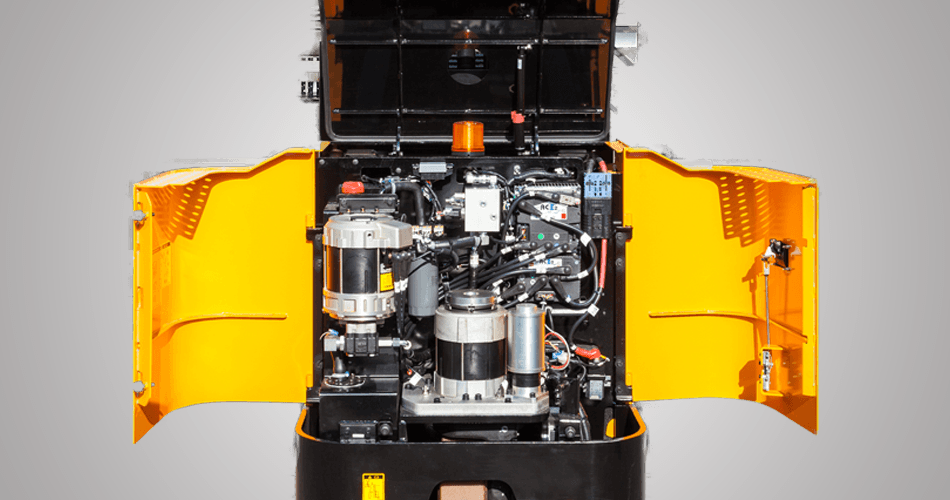

EASY SERVICE ACCESS

Large opening double doors allow access to an ideal arrangement of component parts ensures easy access and convenience for maintenance.

SERVICEABILITY

EASY SERVICE ACCESS

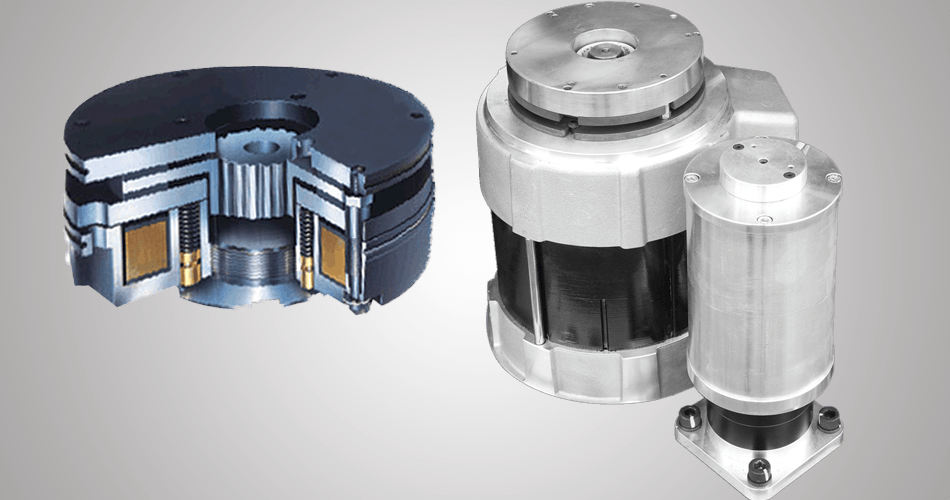

Sealed Electro-magnetic brake and Zapi motors are maintance free, reducing maintanence costs.

SAFETY

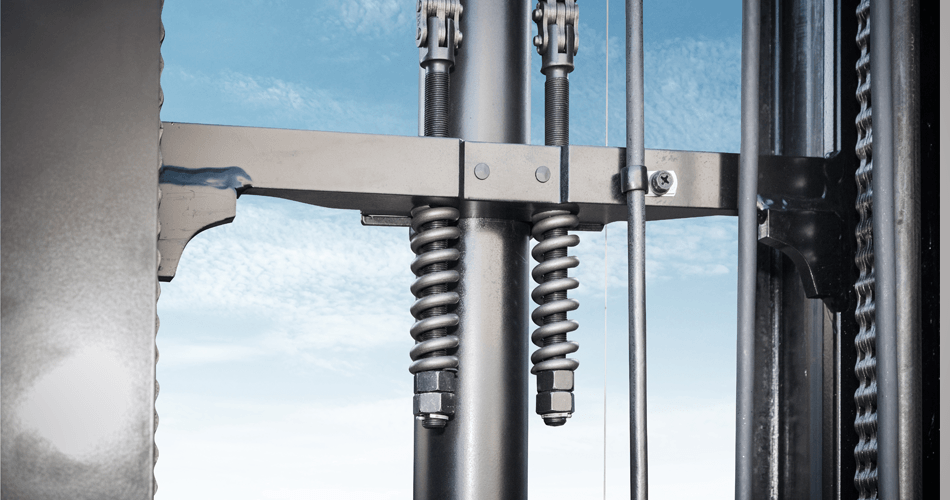

MAST ANCHOR SPRINGS

Springs on the chain anchors cushion the impact of the platform during lifting and lowering reducing the operator's exposure to platform vibrations.

SAFETY

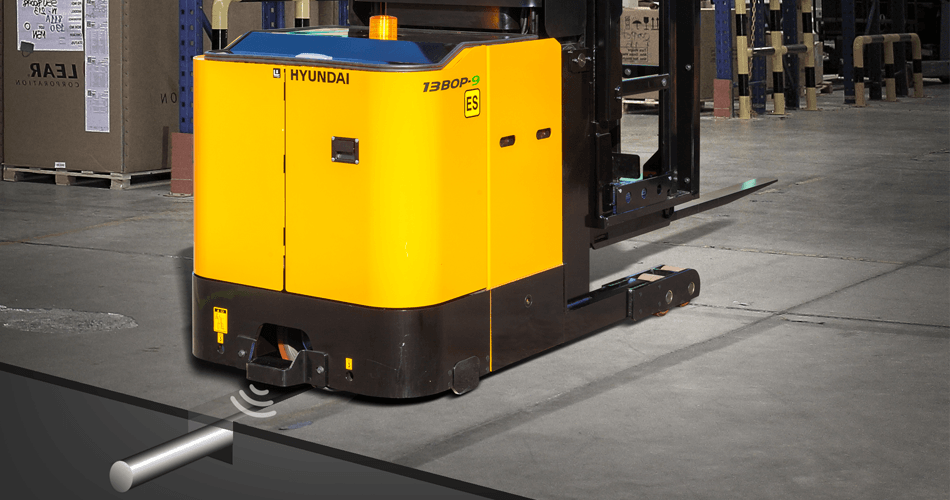

WIRE GUIDANCE

Wire Guidance is an electronic and mechanical system that controls the forklifts steering by tracking an energized guidewire. resulting in decreased product and rack damage, operator injuries, and lift truck impacts.

SAFETY

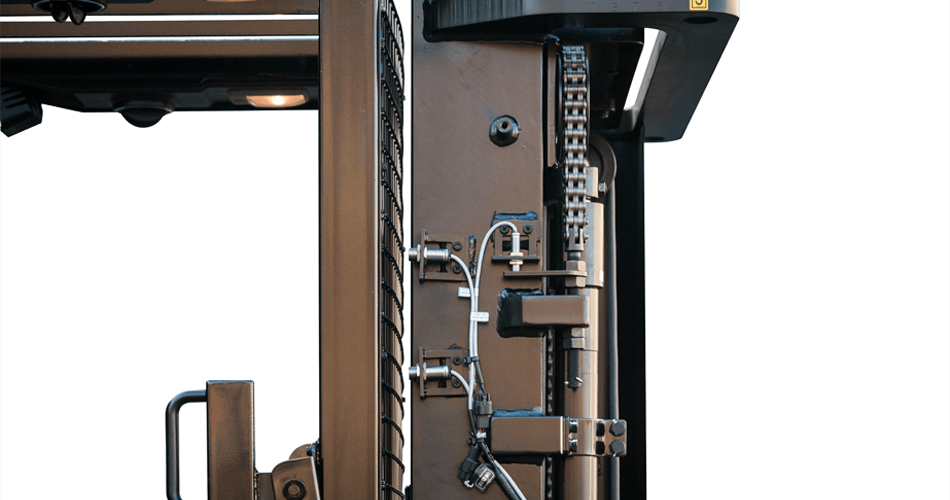

LIFT CHAIN LOOSE DETECTION

To Prevent of sudden drop of the platform due to slack chains, the chain is monitored by a set of sensors measuring the sag. When the chain sags longer than the set value (3mm), the single descent of lift cylinder is automatically controlled to minimize the distance of descent.

SAFETY

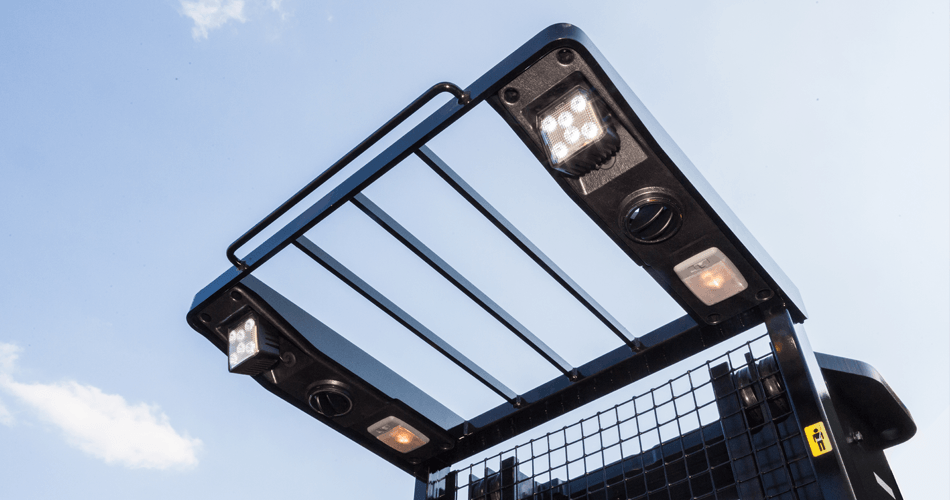

STRONG OVERHEAD GUARD

Exceeding CEE and ANSI regulations, the overhead guard offers great protection combined with excellent all round visibility.

Product

Specifications

10, 13 BOP-9

SpecificationsDownload Product Brochure

LOAD CAPACITY
1,000kg to 1,300kg
TRAVEL SPEED (FULL LOAD)
9.5 kph
LENGTH TO WORKFACE
1,880mm to 1,930mm
MAST LOWERED HEIGHT
2,220mm
OVERALL WIDTH
1,021mm/1,049mm (1,250mm)
