ELECTRIC 3 WHEEL

15, 18, 20BCS-9

COUNTER BALANCE

ELECTRIC 3 WHEEL

15, 18, 20BCS-9

COUNTER BALANCE

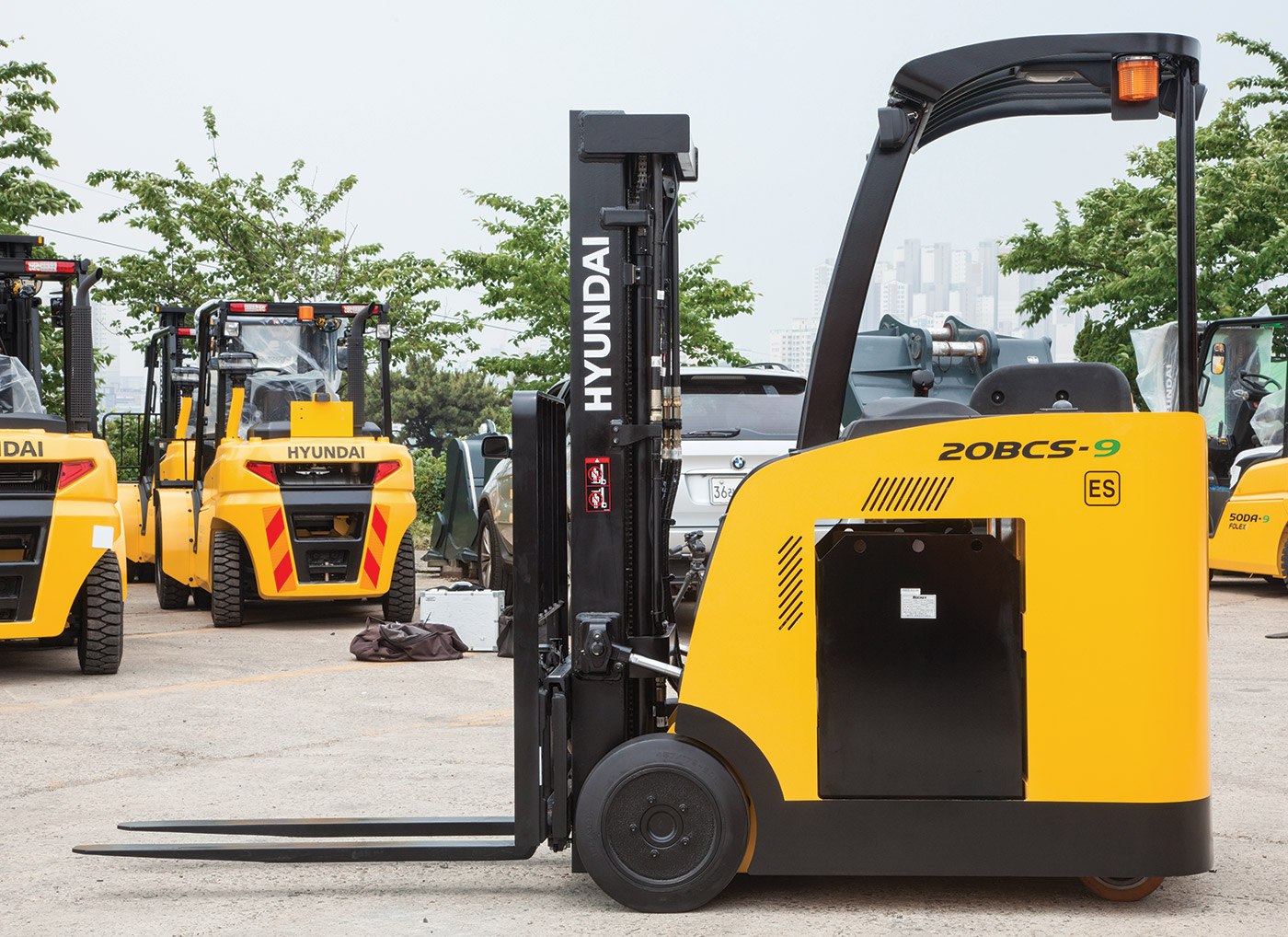

Hyundai introduces a new line of 9-series battery forklift trucks. The newly designed stand up reach trucks provide every operator comfortable driving, increased productivity and easy maintenance.

LOAD CAPACITY
1,500 to 2,000kg
TIRE TYPE
Cushion
BATTERY TYPE
36-48V/1,085-1,240Ah

Product

Features

V

Benefits

  • Maximum performance
  • Comfortable operating room
  • Curve control system
  • Load weight indicator
  •  3.5″ LCD smart display monitor with self-diagnostics
  • Water proof controller
  • EHPS Steering system for higher efficiency
  • Ergonomically designed operating system

Safety

  • New High Visibility for Safe Operation
  • The operator is able to work with increased safety and accuracy due to a wider mast view.
  • Strong Overhead Guard
  • The safety overhead guard meets ISO 6055 and ANSI regulations and protects the operator during hazardous work.
  • Non Slip Floor Mat



Product

Specifications

15, 18, 20BCS-9

SpecificationsDownload Product Brochure

LOAD CAPACITY
1,500 to 2,000kg
TRAVEL SPEED (UNLOADED)
12.1 kph
VOLTAGE/AMPERAGE
36-48V/1,085-1,240Ah
LENGTH TO FACE OF FORKS
1,727mm - 1,796mm
OVERHEAD GUARD HEIGHT
2,233mm
OVERALL WIDTH
1,067mm
TURNING RADIUS
1,397mm to 1,466mm
