ELECTRIC 3 WHEEL

15, 18, 20BT-9U

COUNTER BALANCE

ELECTRIC 3 WHEEL

15, 18, 20BT-9U

COUNTER BALANCE

Introducing the new, upgraded hyundai 9 series electric counter balance forklifts. The new B-9U Series brings customers added value to the next level by dramtically improving energy costs and enhancing powertrain durabilty.

LOAD CAPACITY
2,500kg to 3,500kg
TIRE TYPE
Pneumatic
BATTERY TYPE
48V/660-715Ah

Product

Features

V

PERFORMANCE

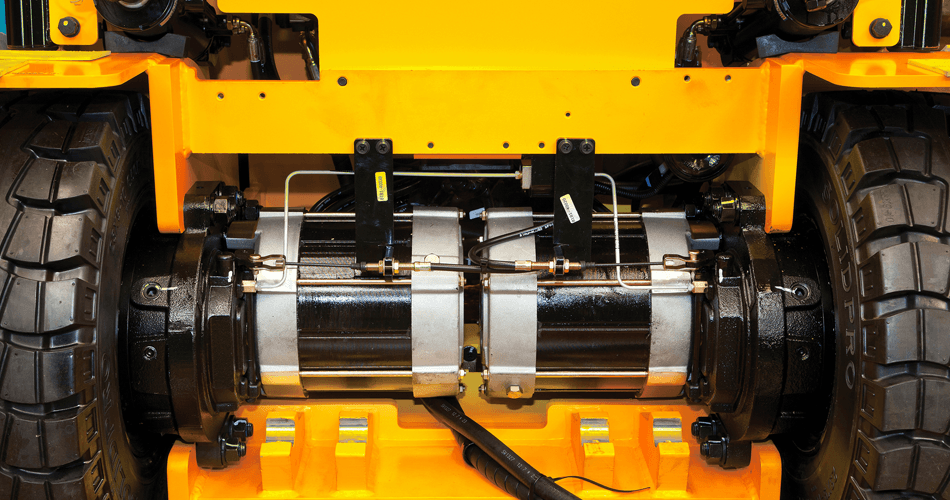

DUAL DRIVE MOTORS

The dual drive motor system consists of two separately controlled drive motors. Unlike the single drive motor system, it prevents the wheels from spinning even when the grip force of the left and right wheels is different. In addition, it enables strong drive performance even on a dirty road. As the pivot point is the axle of the wheels, the dual system enables relatively small turning radius compared to the single system, thus improving efficiency in small worksites.

Performance

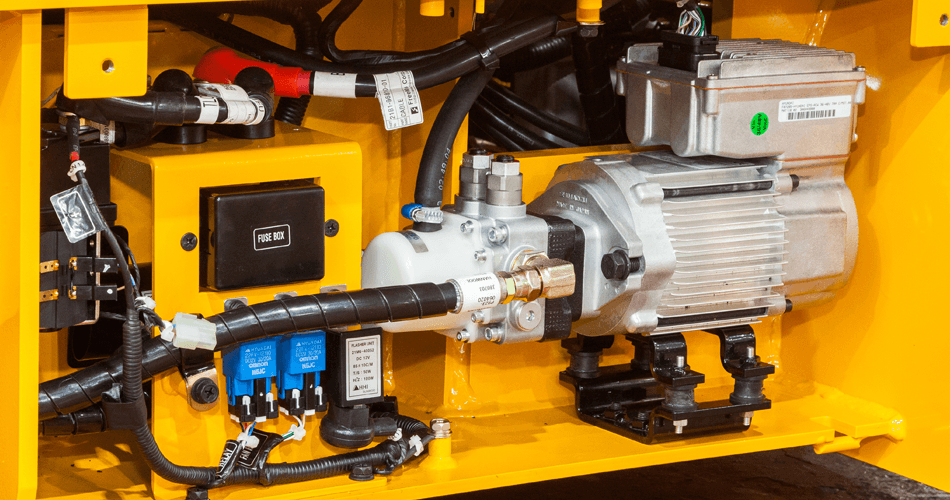

ELECTRIC POWER STEERING

Equipped with both the energy efficiency of the electric power steering system and the stability of the hydraulic power steering system, the EHPS system is composed of a torque sensor, controller, motor, hydraulic pump, and steering cylinder, and operates efficiently with a large reduction of energy required.

PERFORMANCE

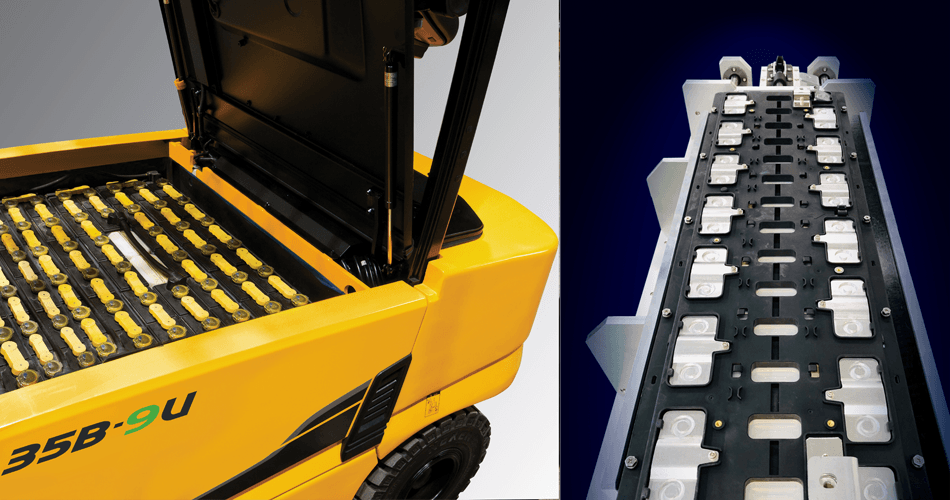

HIGH EFFICIENCY BATTERIES

Li-ION batteries ensure a high-performance of the equipment, allowing extended hours of continued operation by use of short high-current opportunity charges. The Hyundai Li-ION battery uses Samsung prismatic NMC cells, providing excellent performance and safety, with virtually zero maintenance. With life span twice as long as a traditional lead-acid battery, the TCO will be significantly lower compared to lead-acid batteries.

PERFORMANCE

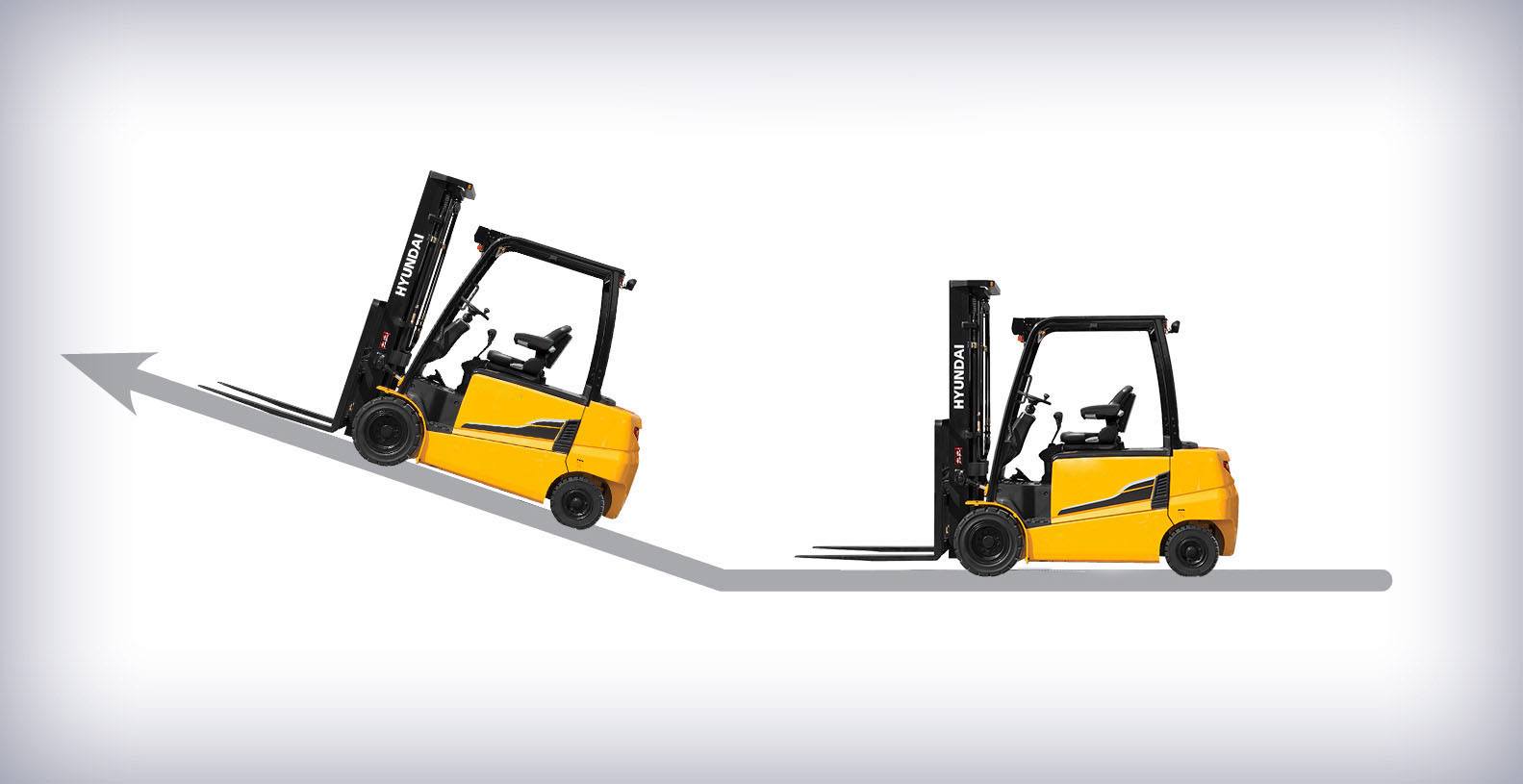

EXCELLENT GRADEABILITY

The gradeability ranges from 22%-17% with a max speed of 16.1 km per hour.

ERGONOMICS

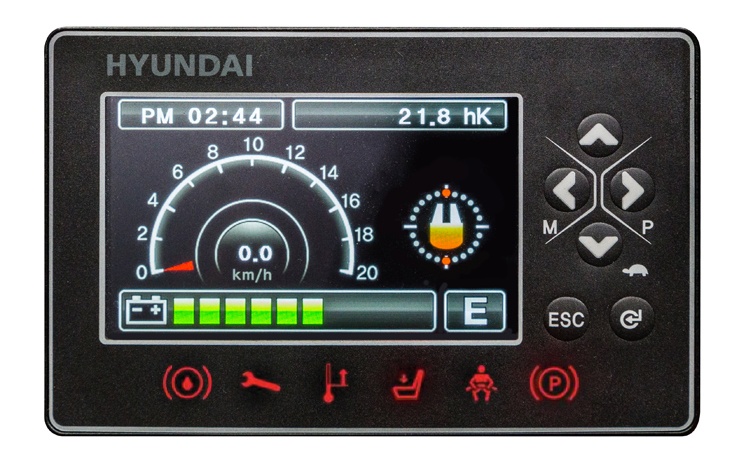

4.3 inch LCD color monitor

The LCD color monitor with 4.3 inch graphic smart display allows the operator to identify speed, travel direction, and operating hours and control the machine efficiently. The load indicator displays the load weight in the monitor. The operator can select various performance modes to meet all working conditions. Multilanguage (maximum 11) is available.

ERGONOMICS

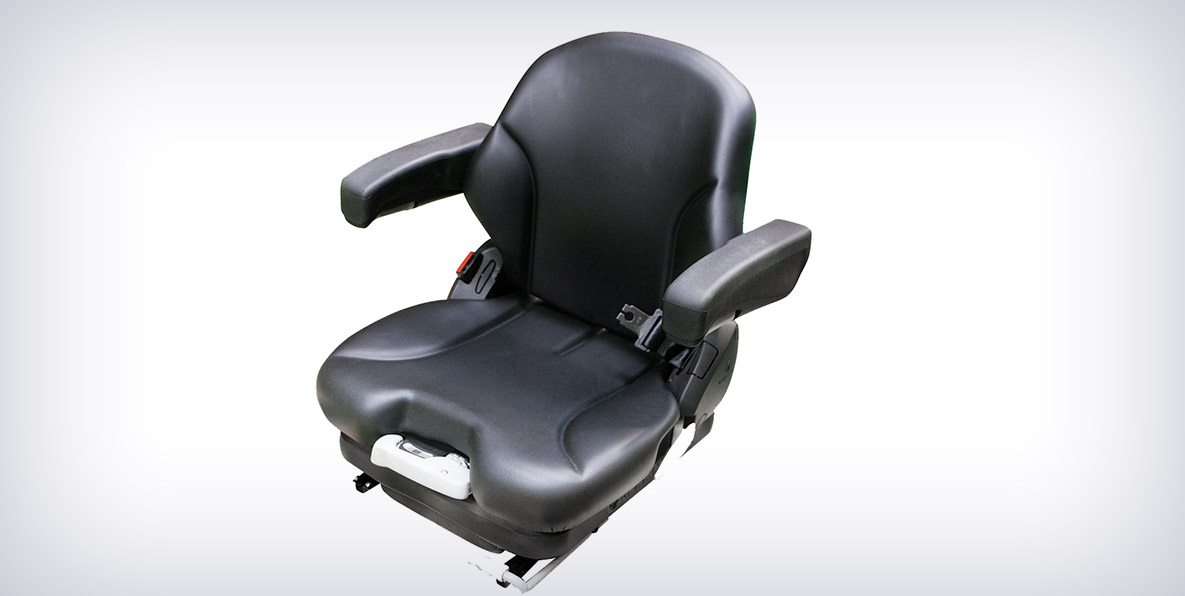

Grammer™ Full Suspension Seat

An easily adjustable ergonomic seat provides unmatched comfort and reduces operator fatigue. Energy locking retractor (ELR) seat belt, heater (OPT) and headrest (OPT) & adjustable armrests.

ERGONOMICS

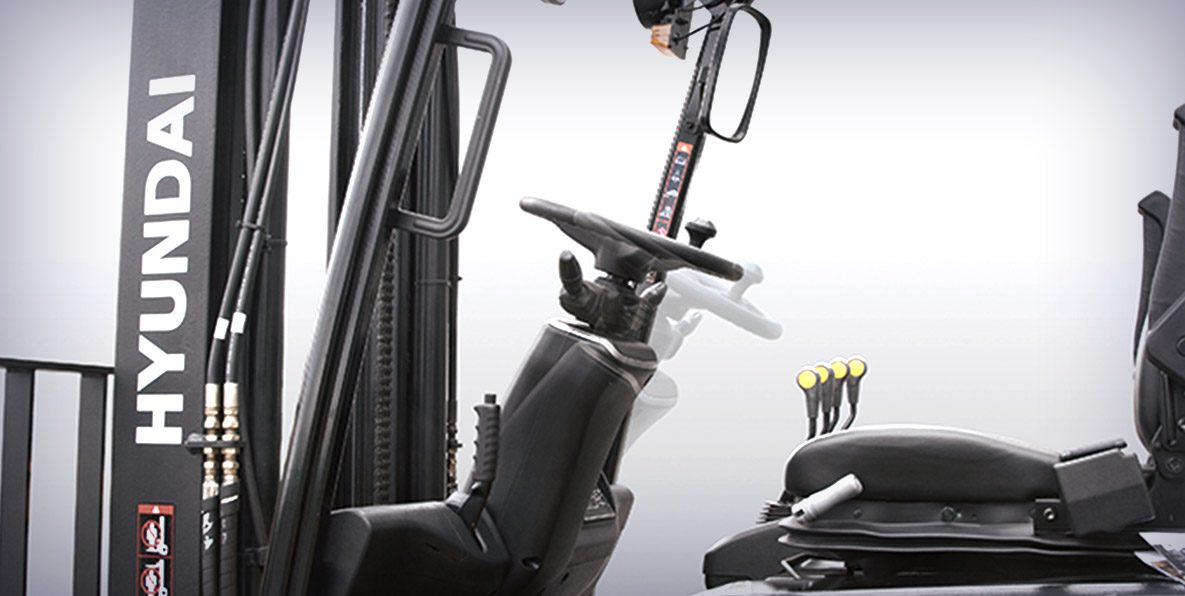

Adjustable Steering Wheel

To achieve a comfortable drive position, the angle of the steering column can easily be adjusted through a lever on the right-hand side of the steering column.

Serviceability

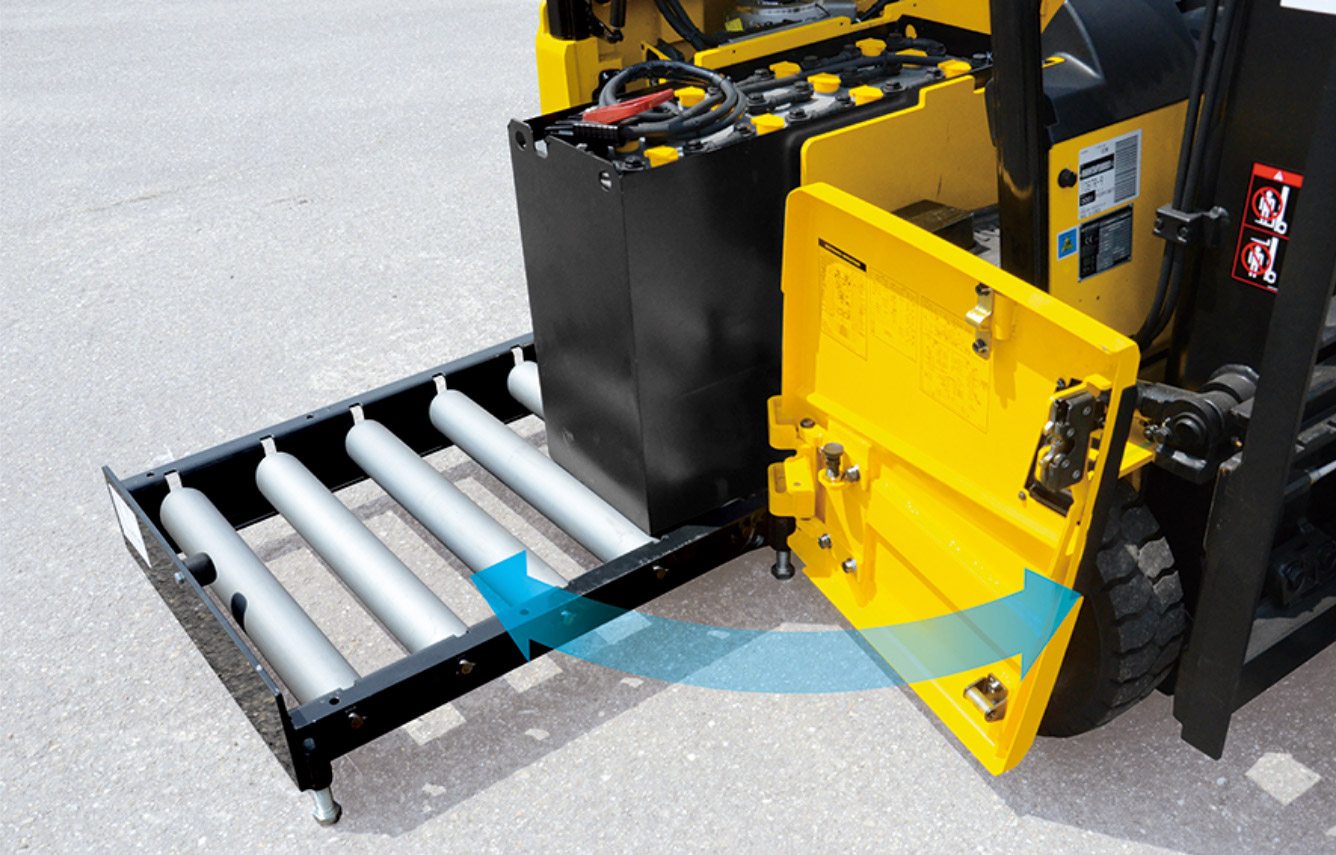

EASY BATTERY REPLACEMENT

The battery compartment is equipped with a side battery removal assembly for easy removal and replacement.

SERVICEABILITY

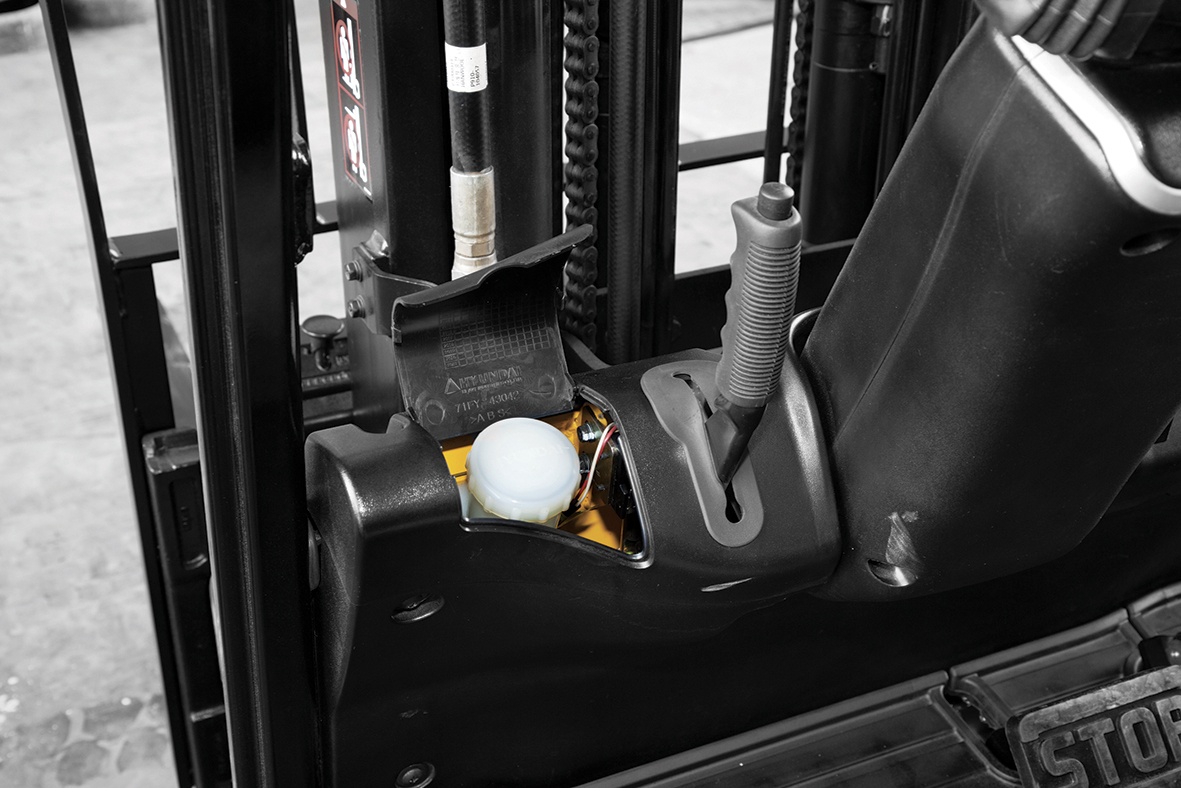

BRAKE OIL RESERVOIR WITH LEVEL SENSOR

The enhanced brake oil reservoir, located in the upper left dash, is equipped with an electronic level sensor and easily visible through the monitor.

SERVICEABILITY

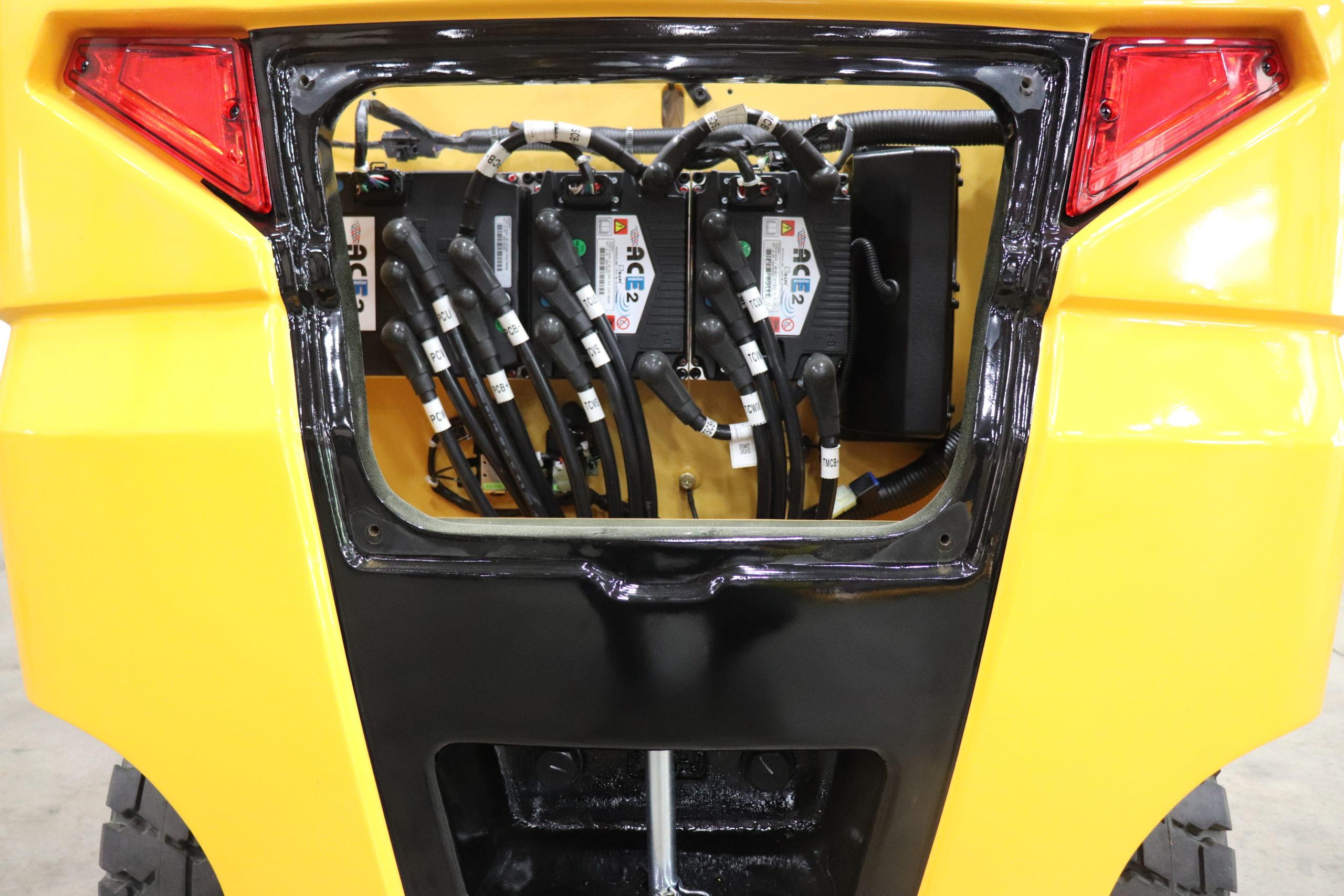

EASY TO MAINTAIN CONTROLLER

The AC controllers are strategically placed for quick access.

SAFETY

OPSS (OPERATOR PRESENCE SENSING SYSTEM)

All mast and drive movements stop functioning when the operator is not in the seat.

SAFETY

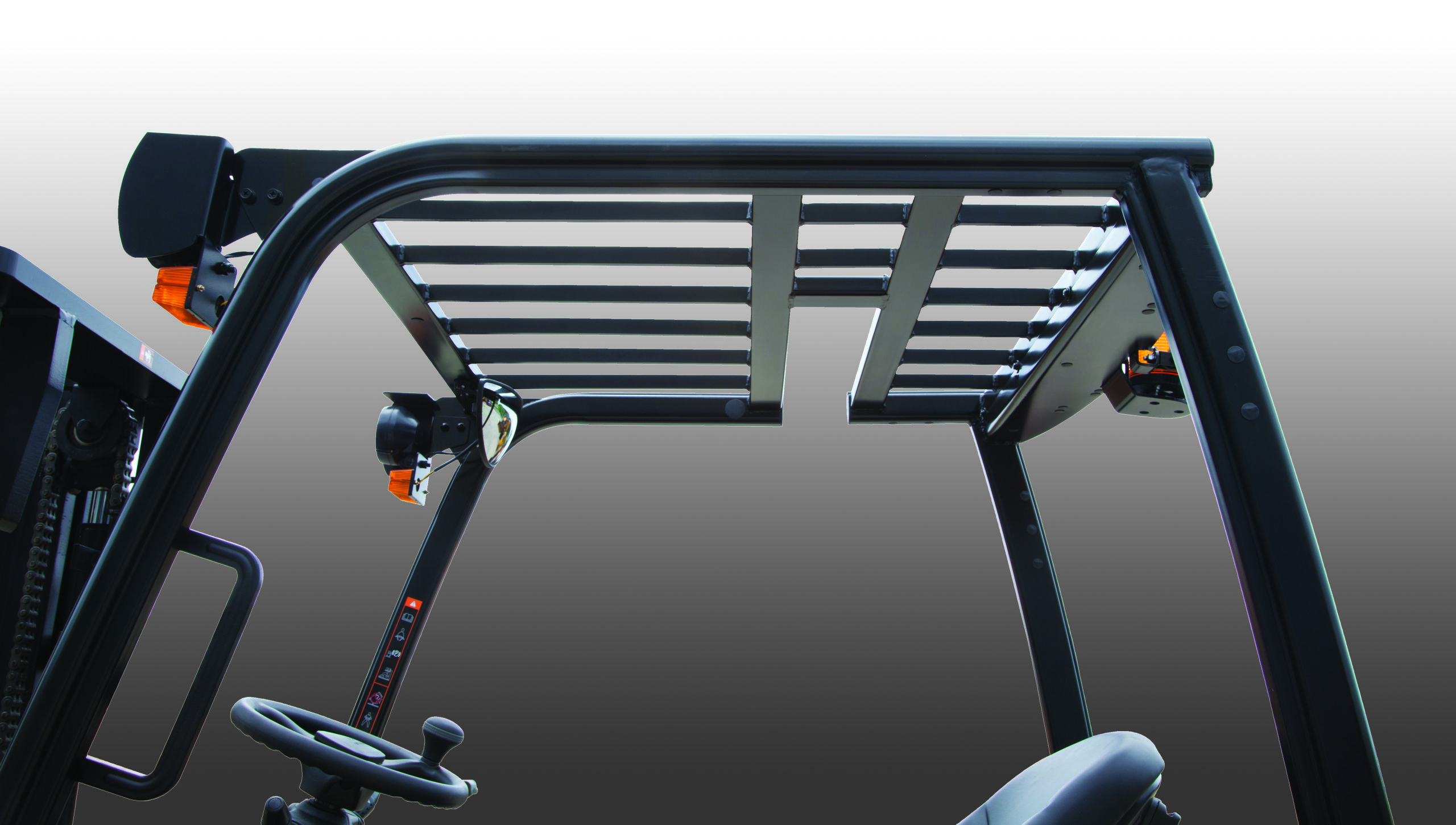

STRONG OVERHEAD GUARD

Exceeding CEE and ANSI regulations, the overhead guard offers great protection combined with excellent all round visibility.

SAFETY

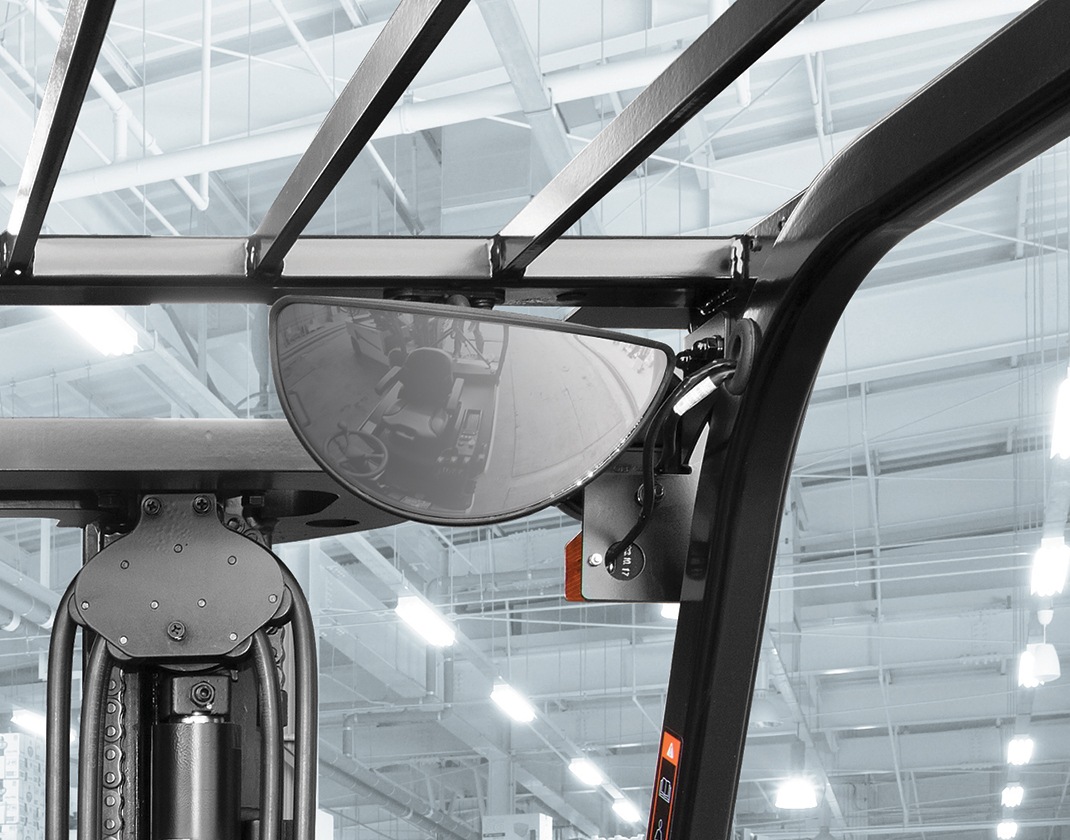

PANORAMIC MIRROR

The panoramic mirror expands the driver’s view when backing up.

SAFETY

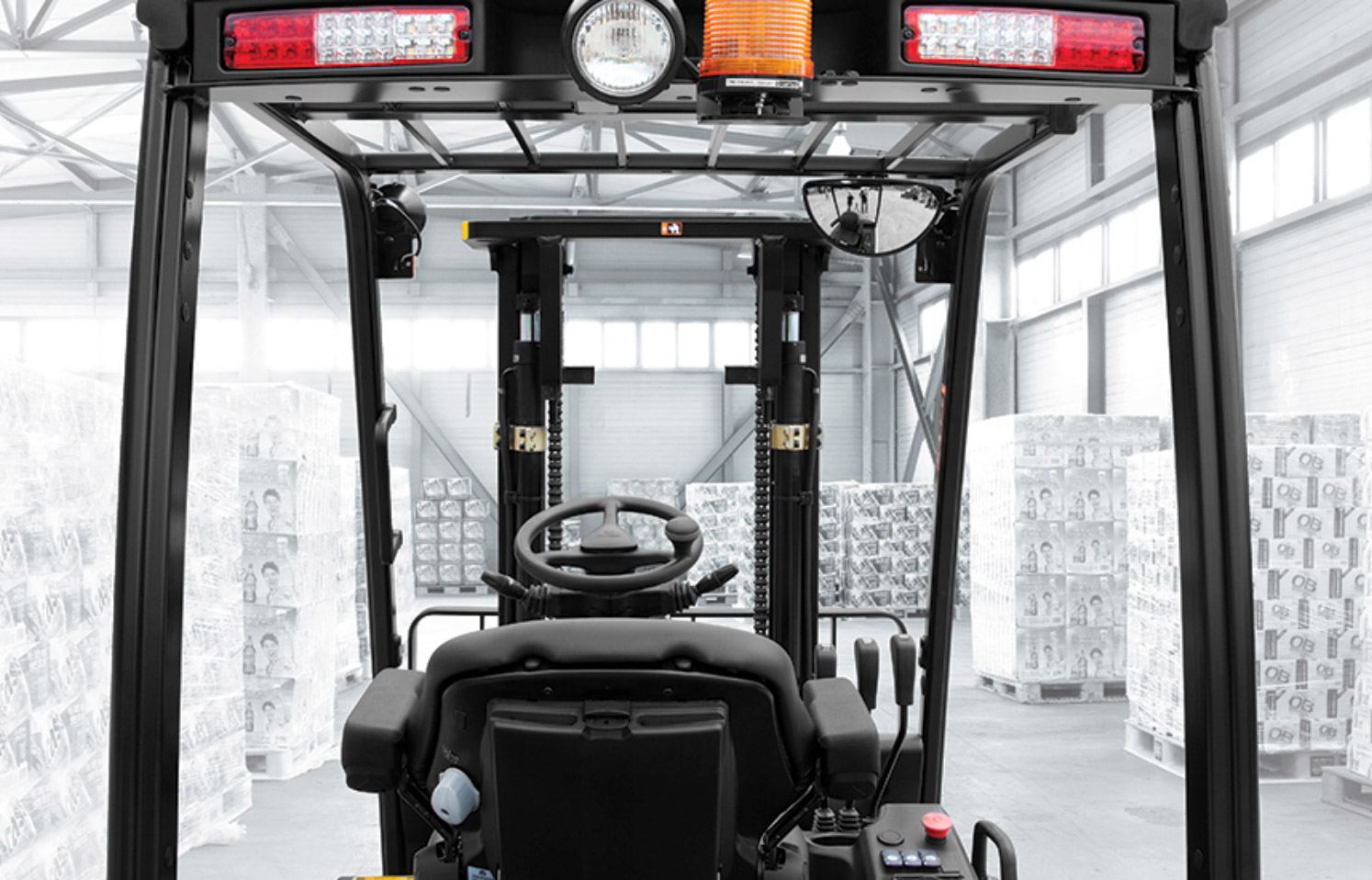

EXCELLENT VISIBILITY

Optimized lift cylinder arrangement provides operator with wider visibility. The panoramic mirror expands the driver’s view when backing up.

Product

Specifications

15, 18, 20BT-9U

SpecificationsDownload Product Brochure

LOAD CAPACITY
2,500kg to 3,500kg
TRAVEL SPEED (UNLOADED)
16.1 kph
VOLTAGE/AMPERAGE
48V/660-715Ah
LENGTH TO FACE OF FORKS
2,296mm to 2,591mm
OVERHEAD GUARD HEIGHT
2,230mm
OVERALL WIDTH
1,199mm to 1,250mm
TURNING RADIUS
1,941mm to 2,205mm
