ELECTRIC 4 WHEEL

16, 18, 20B-9

COUNTER BALANCE

ELECTRIC 4 WHEEL

16, 18, 20B-9

COUNTER BALANCE

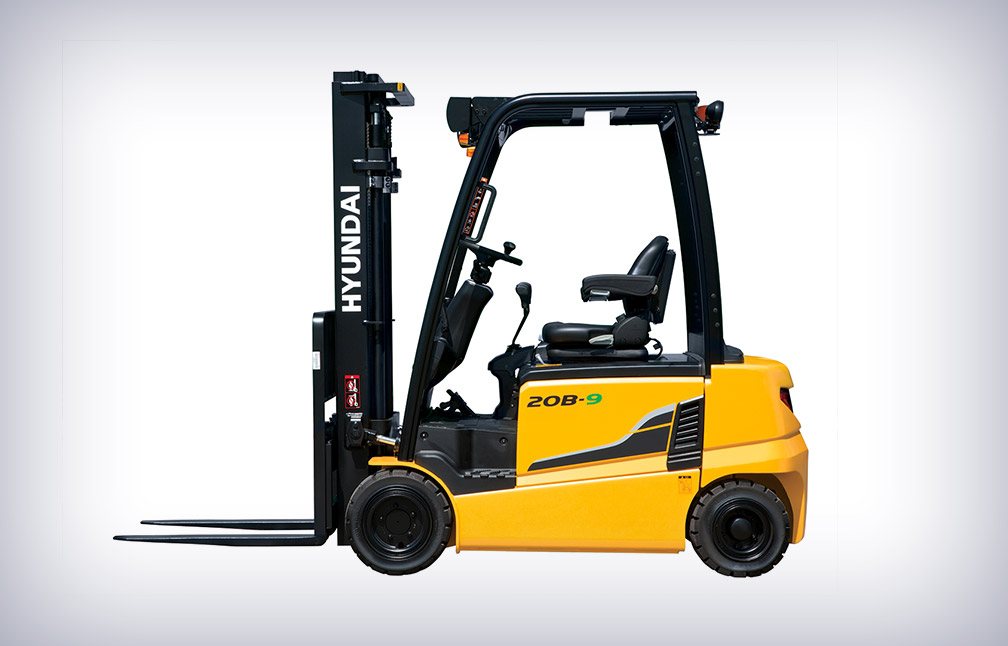

Introducing the upgraded Hyundai 9 series 48 volt electric four wheel design counter balance forklifts. The 9 Series brings customers added value with market leading energy efficiency and enhanced powertrain durabilty. This forklift is unique in that it is also capable of running on a Lithium ion battery with no cost of modifications.

LOAD CAPACITY
1,600kg to 2,000kg
Power Type
Battery
Battery Info
48 V

Product

Features

V

PERFORMANCE

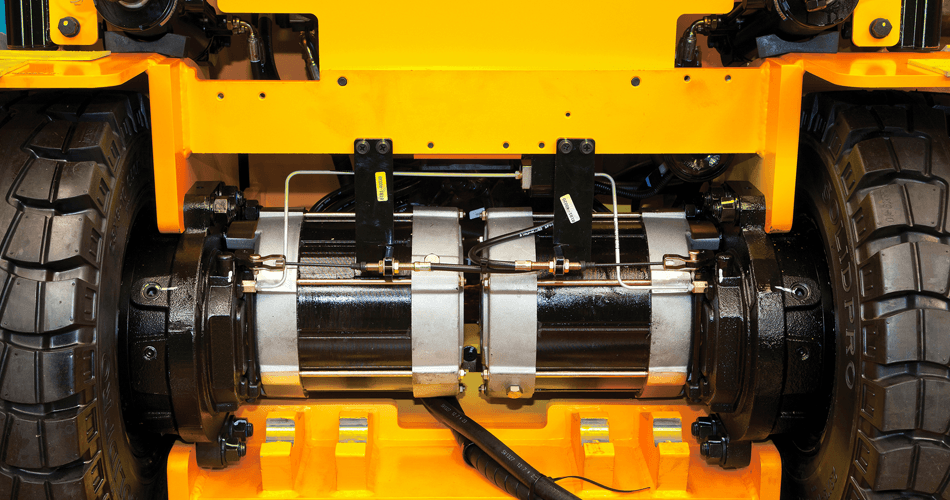

DUAL DRIVE MOTORS

The dual drive motor system consists of two separately controlled brushless AC drive motors. As opposed to a single drive motor forklift, the dual drive motors are more energy efficient and provide smaller turning circles as they operate independently.

PERFORMANCE

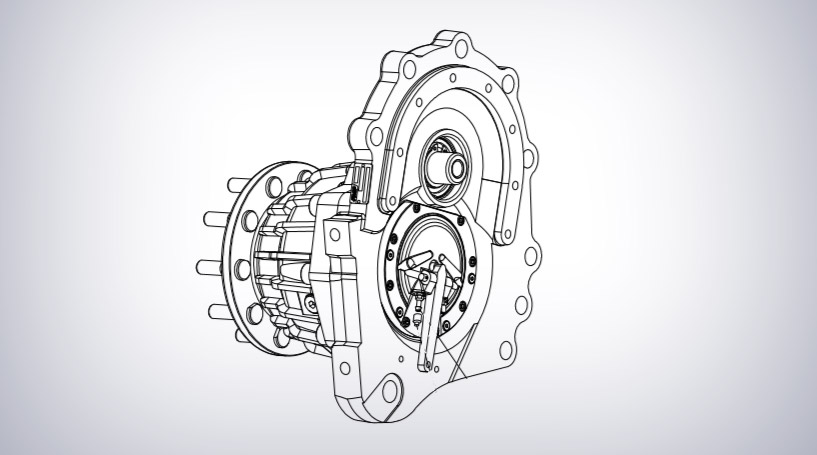

WET DISC BRAKES

The Sealed wet disc brakes offer easy, safe and reliable operation. With longer service intervals and low maintenance costs uptime is maximised.

PERFORMANCE

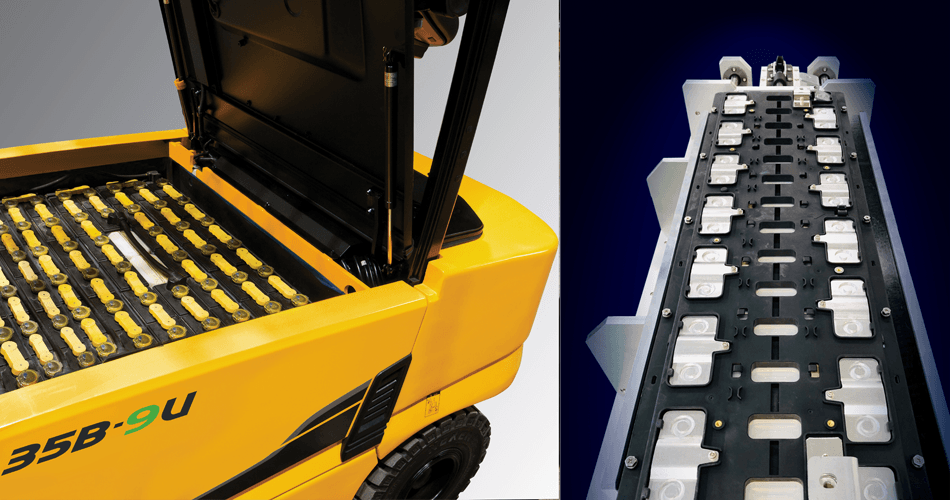

HIGH EFFICIENCY LITHIUM ION BATTERIES

Li-ION batteries allow extended hours of continued operation by use of short high-current opportunity charges. They are maintenance free removing the need for watering and cleaning of lead acid batteries and are more energy efficient. With a life span estimated at three times that of a lead acid battery your TCO will be significantly lower compared to lead-acid batteries.

ERGONOMICS

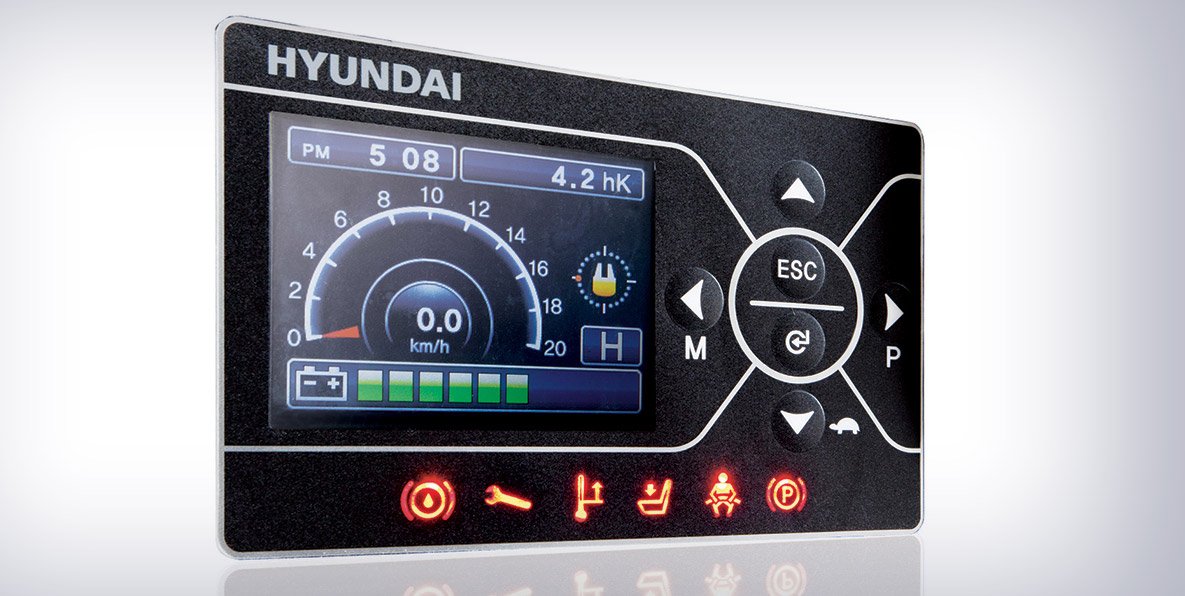

Advanced 3.5 Inch LCD Monitor

The LCD monitor with 3.2 inch graphic smart display allows the operator to easily and efficiently control the machine. The monitor provides information about speed & accelerator level, steer angle & travel direction, battery discharge indicator, hour meter, & working mode.

ERGONOMICS

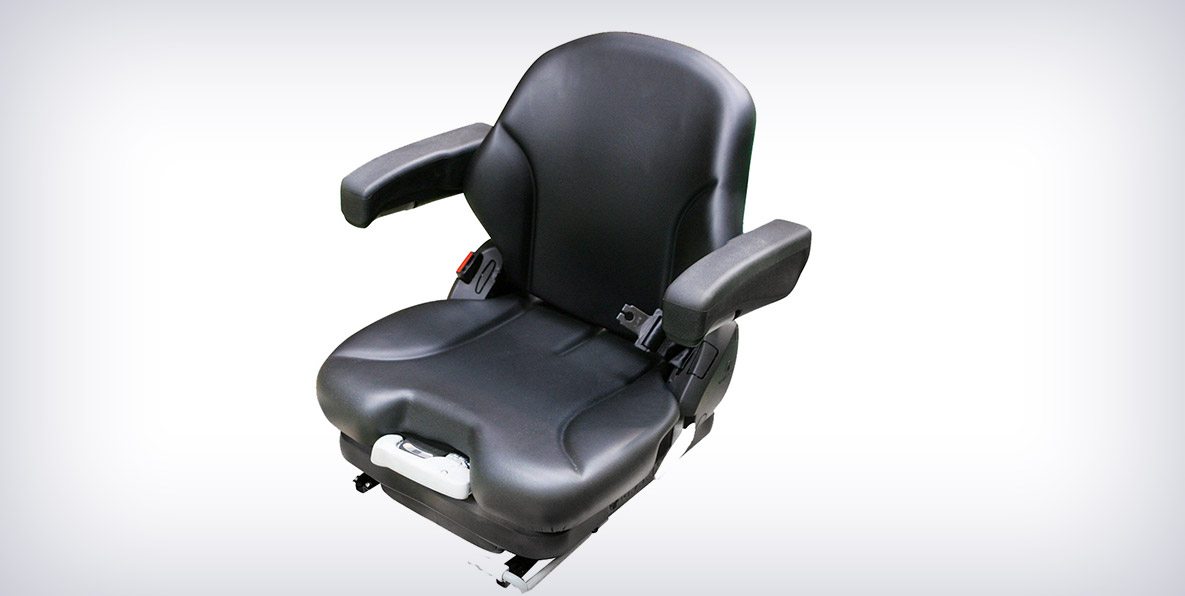

Grammer™ Full Suspension Seat

With fully adjustable backrest and armrests, the adjustable ergonomic seat provides great operator comfort and safety.

ERGONOMICS

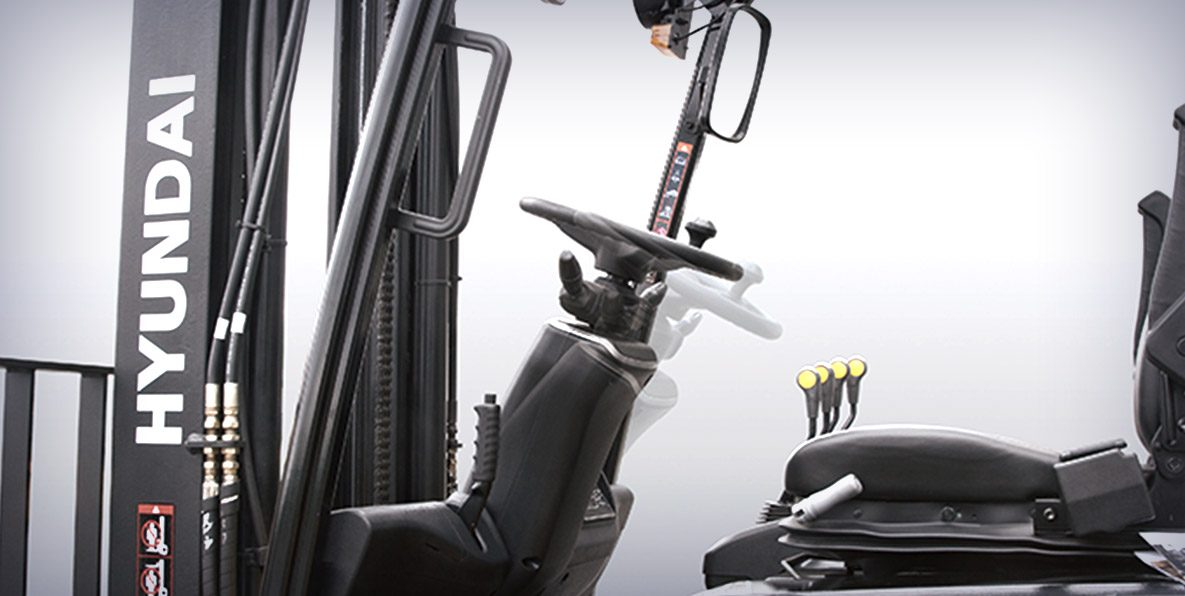

Adjustable Steering Wheel

To achieve a comfortable drive position, the angle of the steering column can easily be adjusted through a lever on the right-hand side of the steering column.

ERGONOMICS

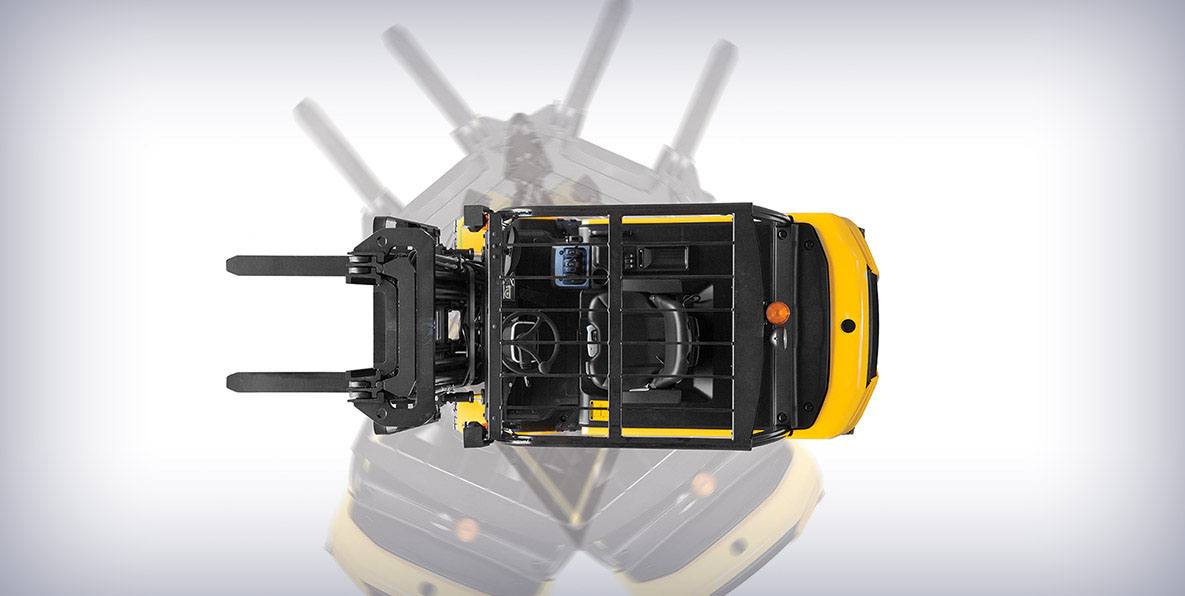

Compact Turning Radius

The combination of 3-wheel design and rear wheel drive offers central pivot turning. This allows the driver to work in very confined spaces.

Serviceability

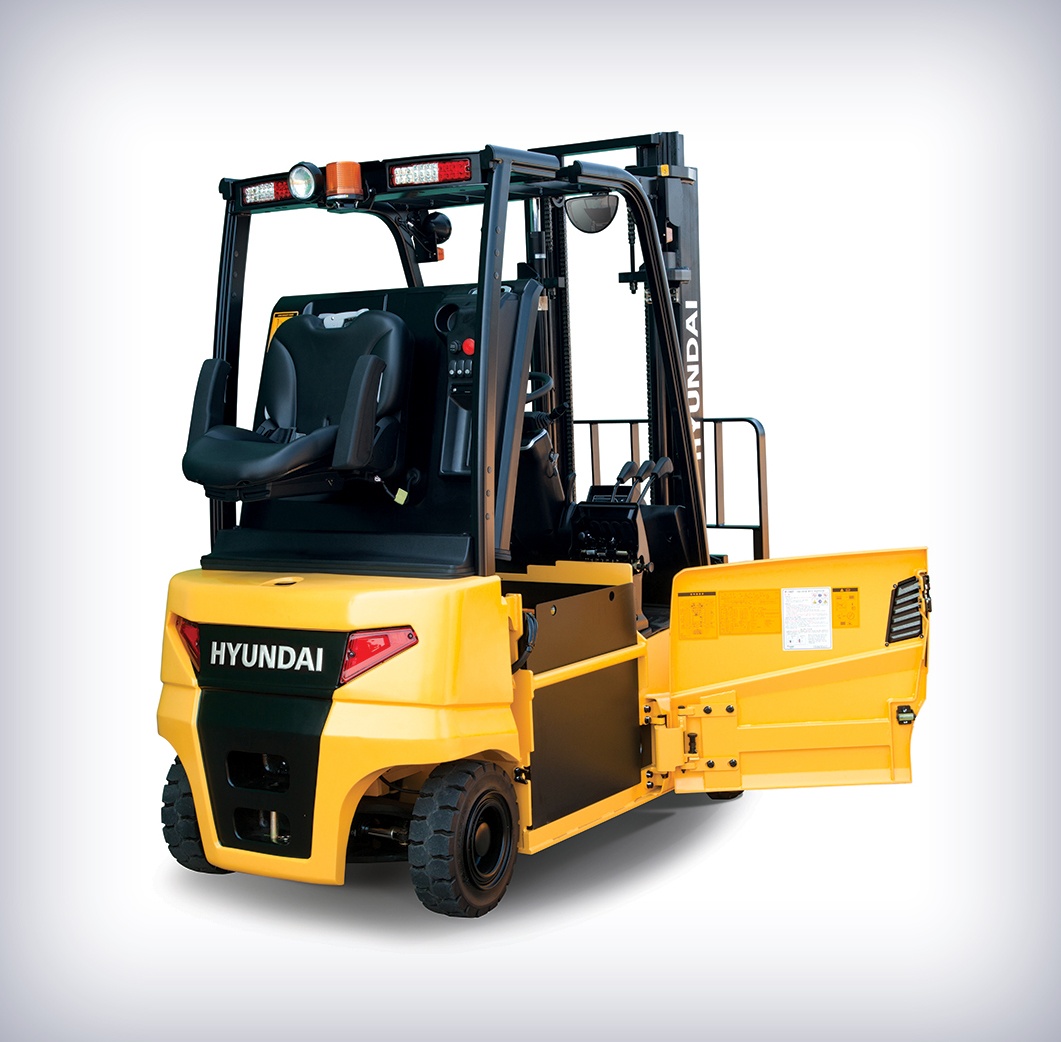

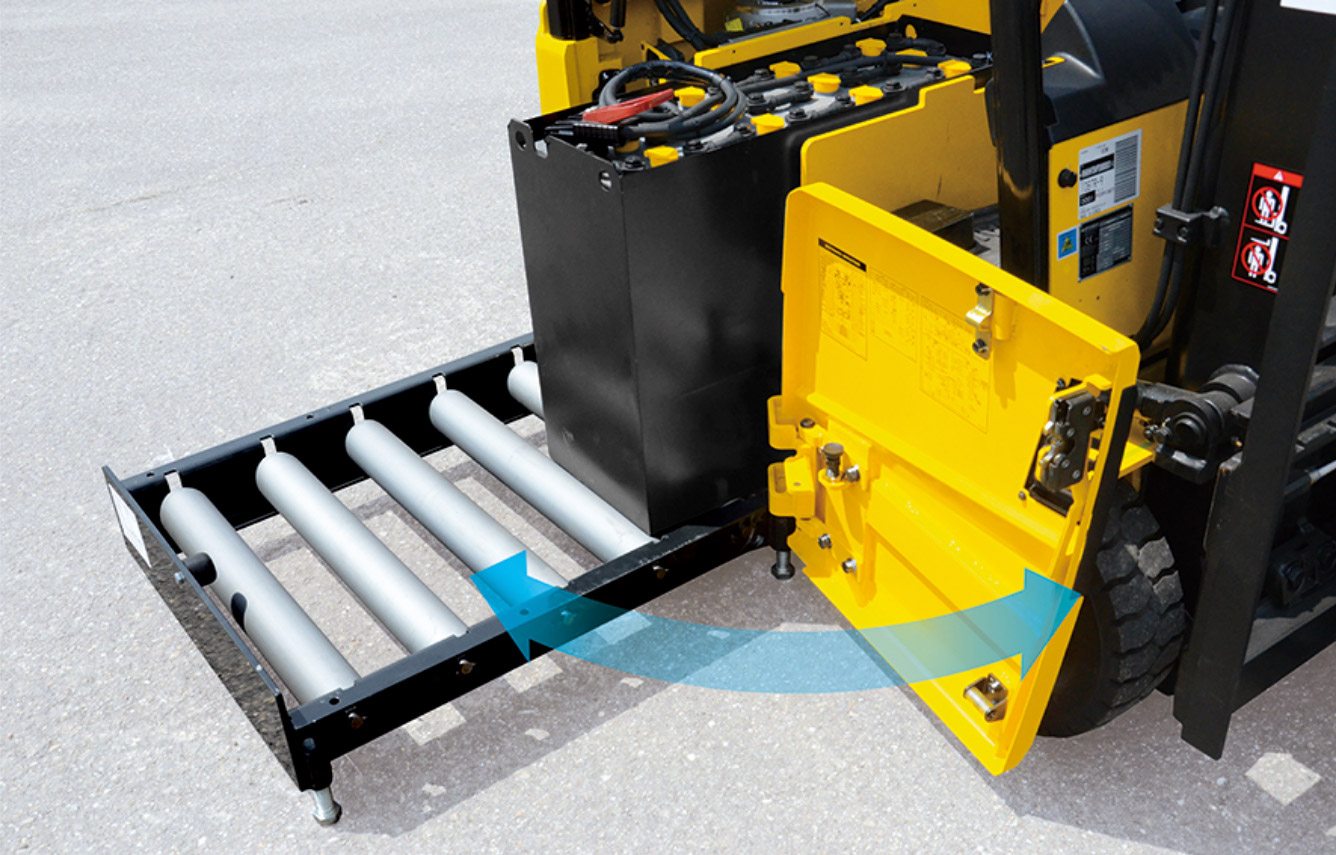

EASY BATTERY REPLACEMENT

The battery compartment is equipped with a side battery removal assembly for easy removal and replacement.

SERVICEABILITY

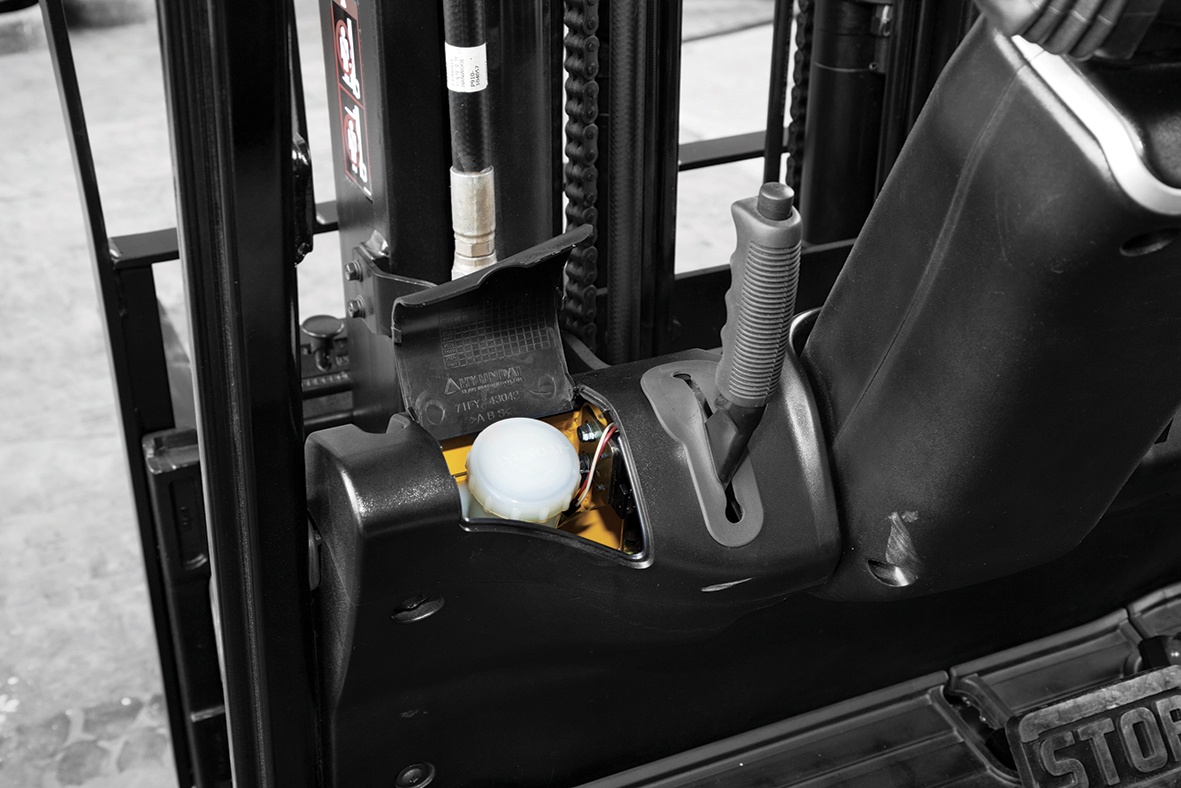

BRAKE OIL RESERVOIR WITH LEVEL SENSOR

The enhanced brake oil reservoir, located in the upper left dash, is equipped with an electronic level sensor and easily visible through the monitor.

SERVICEABILITY

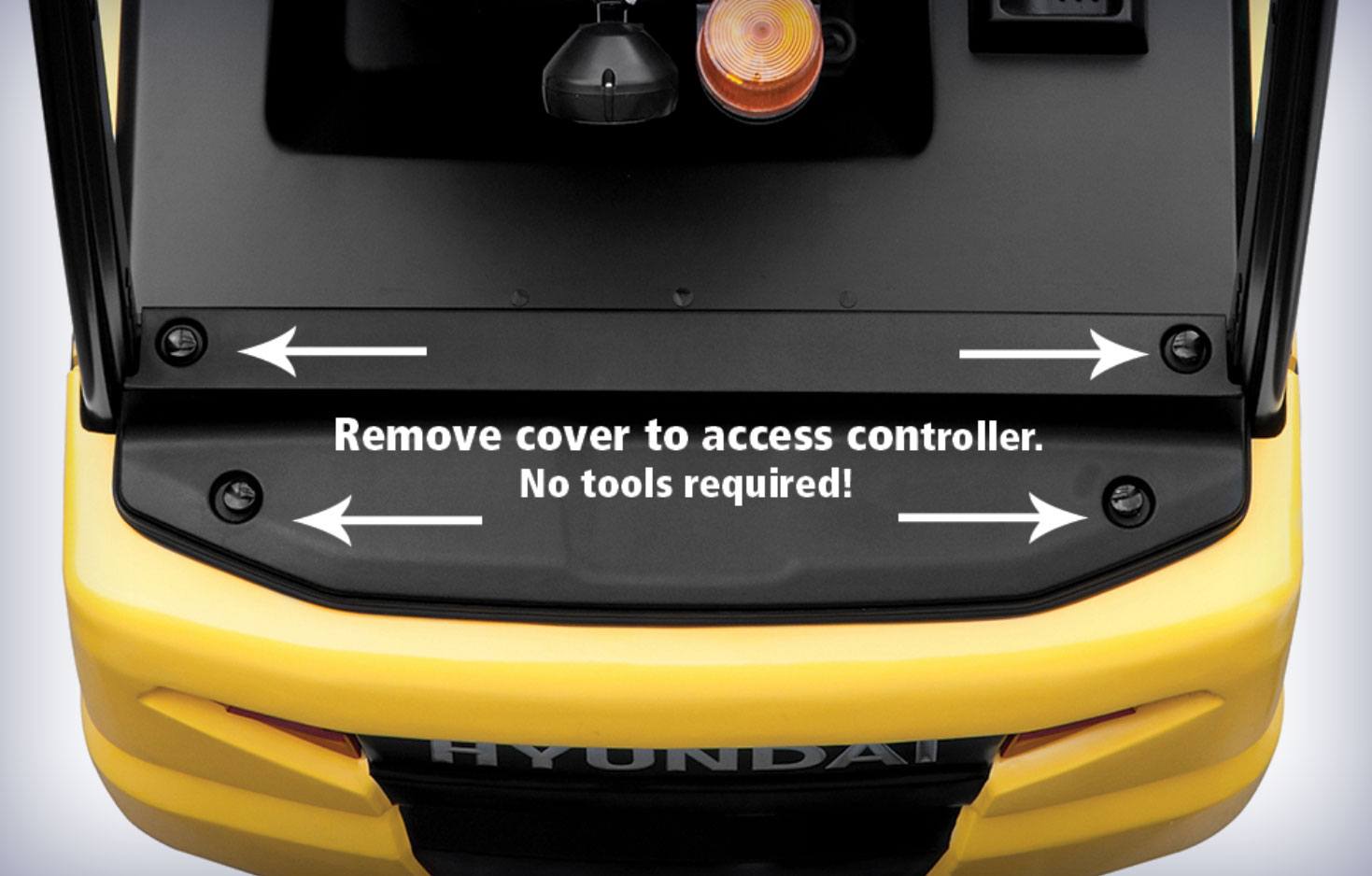

EASY TO MAINTAIN CONTROLLER

The AC controller is strategically placed for quick access.

SERVICEABILITY

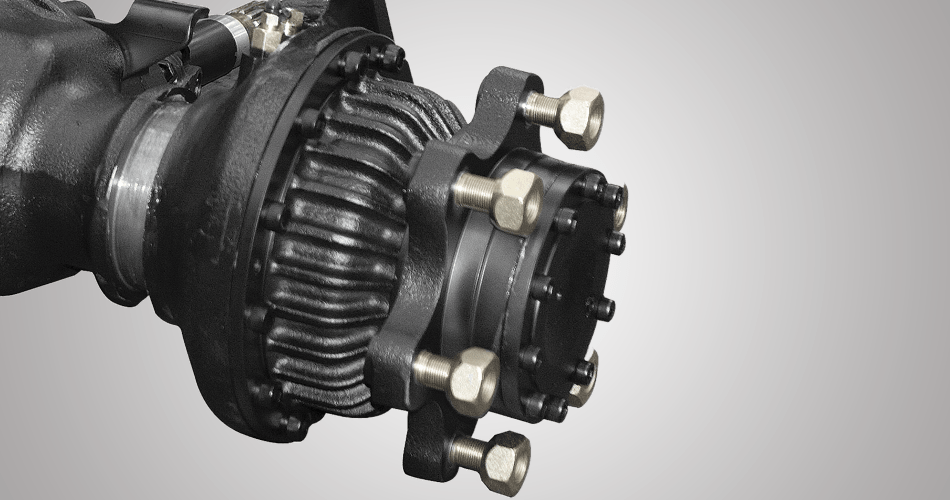

WET DISK BRAKE SYSTEM

This maintenance free system allows for less heat development and is fully enclosed to protect from water and dust, leading to less wear on components.

SAFETY

OPSS (OPERATOR PRESENCE SENSING SYSTEM)

All mast and drive movements stop functioning when the operator is not in the seat.

SAFETY

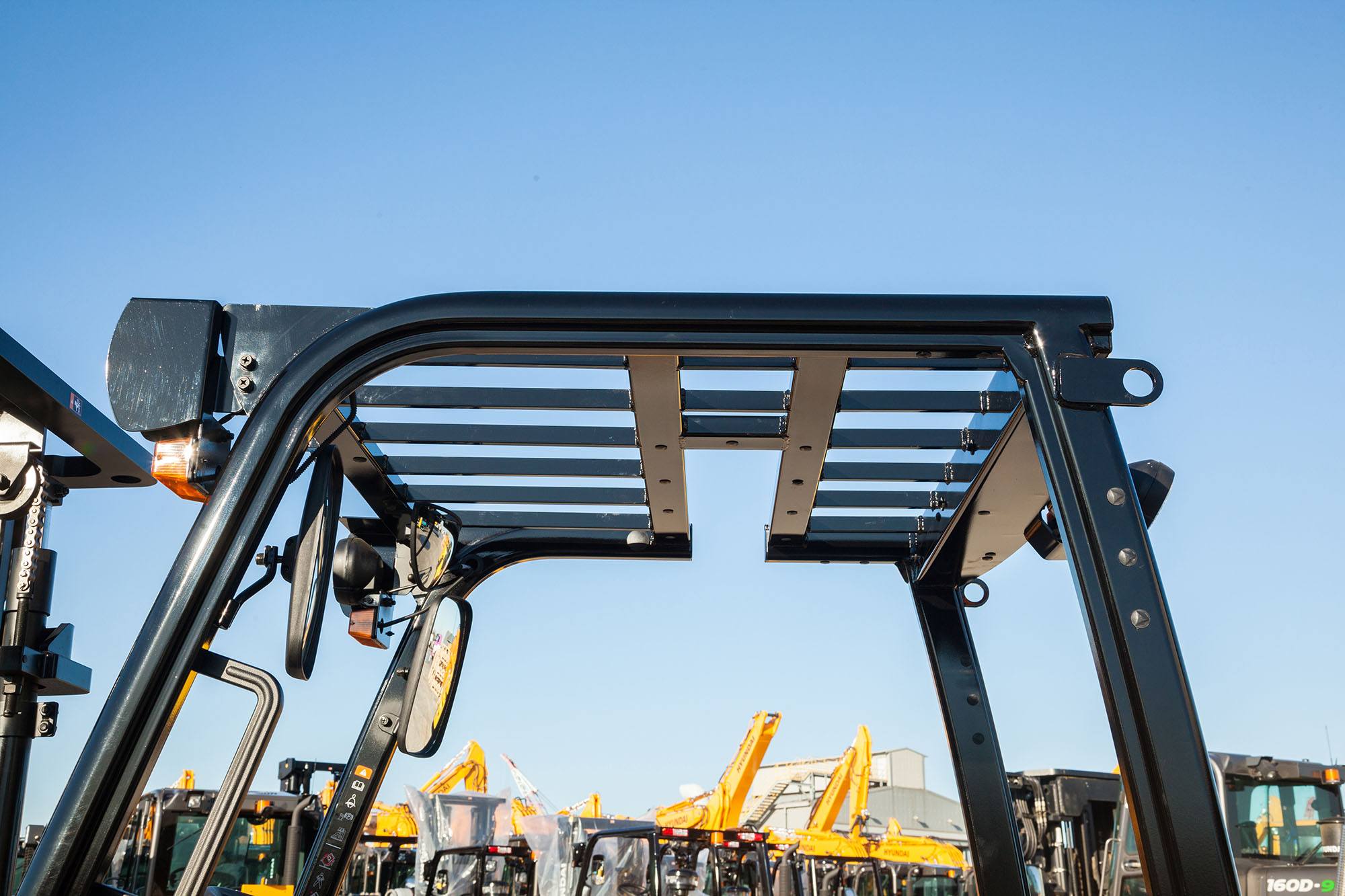

STRONG OVERHEAD GUARD

Exceeding CEE and ANSI regulations, the overhead guard offers great protection combined with excellent all round visibility.

SAFETY

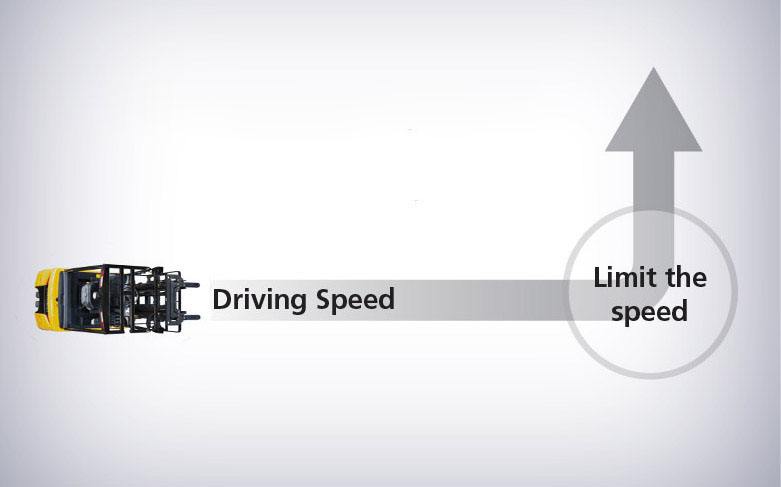

Curve Control

The speed of the forklift is controlled by the angle of the steer wheels and reduces as the operator turns the steering wheel. This provides greater stability when cornering. In addition, in line with changes to Australian Standards, the speed of the forklift is reduced to 3kph when the carriage is elevated to certain heights.

SAFETY

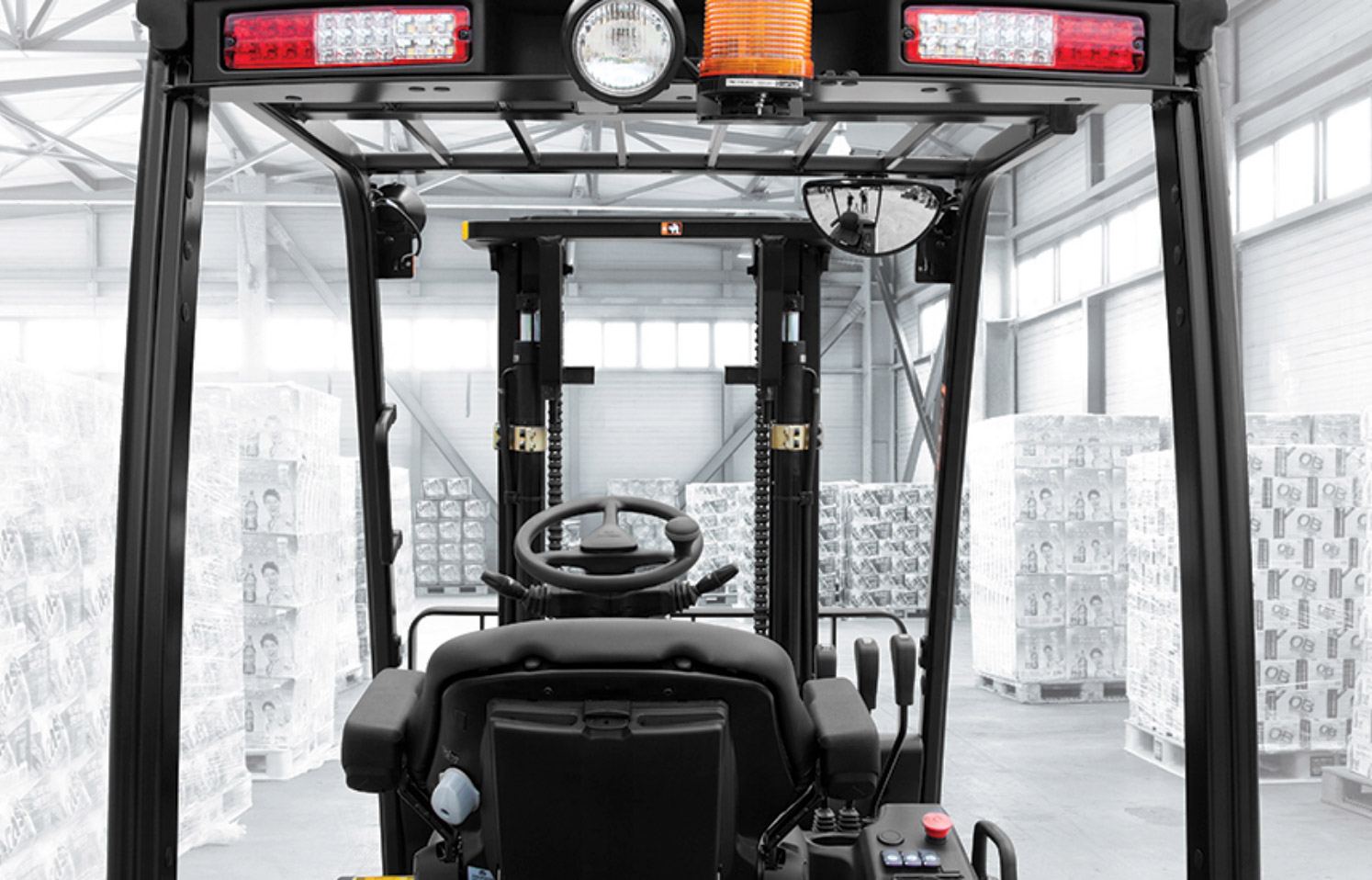

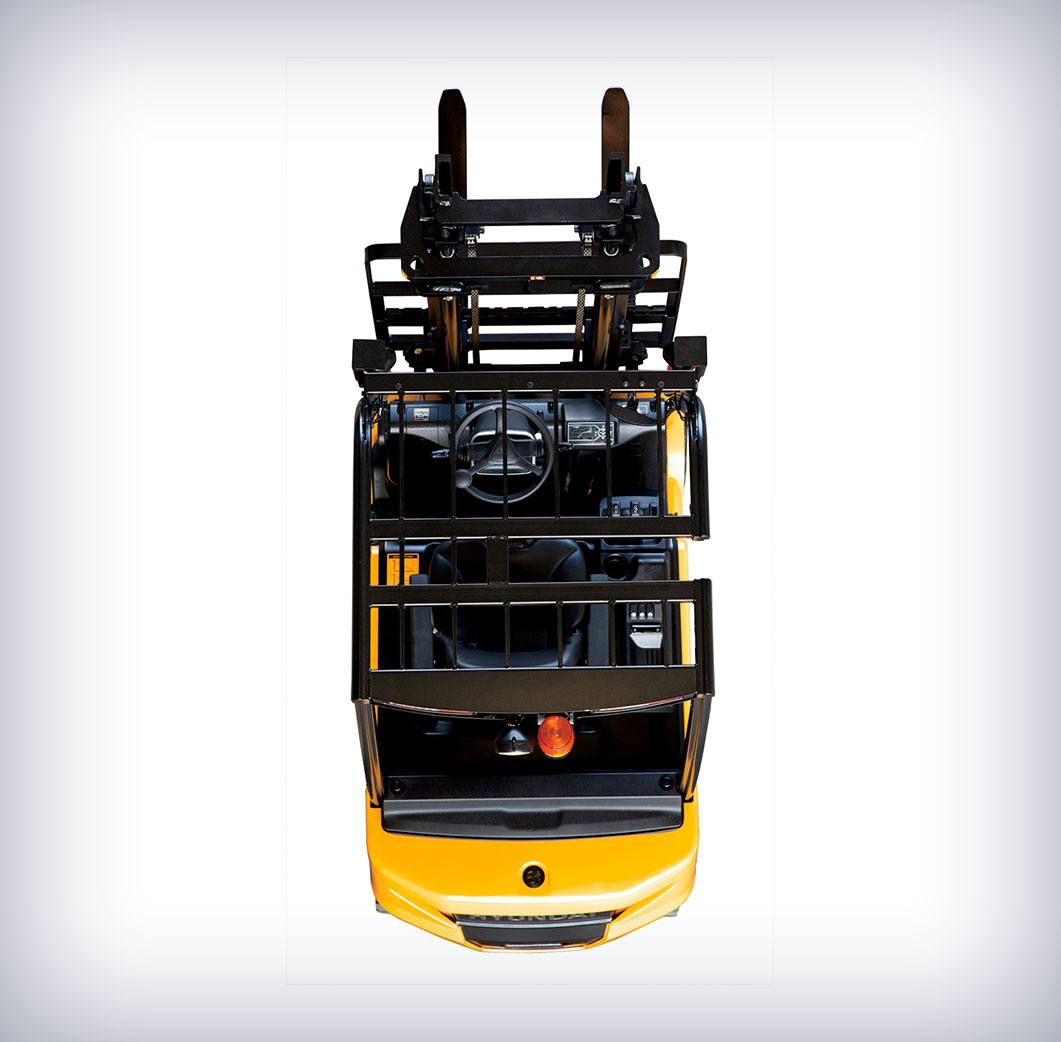

EXCELLENT VISIBILITY

Optimised lift cylinder arrangement provides operator with wider visibility. The panoramic mirror expands the driver’s view when backing up.

Product

Specifications

16, 18, 20B-9

SpecificationsDownload Product Brochure

LOAD CAPACITY
1,600kg to 2,000kg
TRAVEL SPEED (FULL LOAD)
17.1 kph (unloaded)
VOLTAGE
48 V
LENGTH TO WORKFACE
2,035 - 2,131mm
OVERHEAD GUARD HEIGHT
2,065mm
OVERALL WIDTH
1,074mm to 1,105mm
