ELECTRIC 4 WHEEL

25, 30, 35BH-9

COUNTER BALANCE

ELECTRIC 4 WHEEL

25, 30, 35BH-9

COUNTER BALANCE

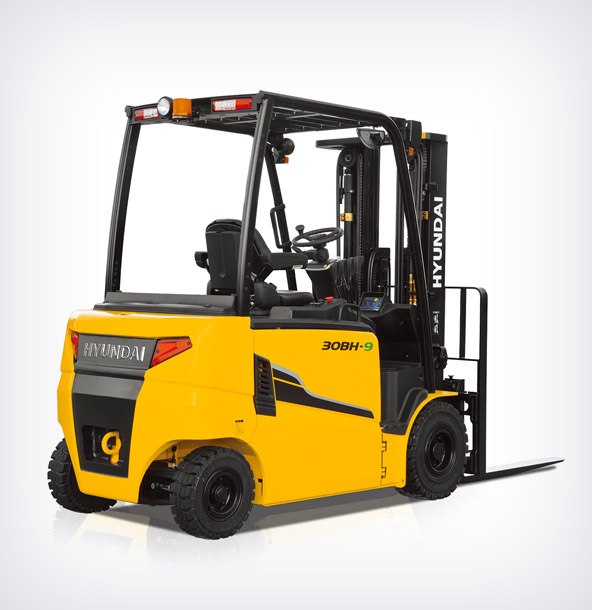

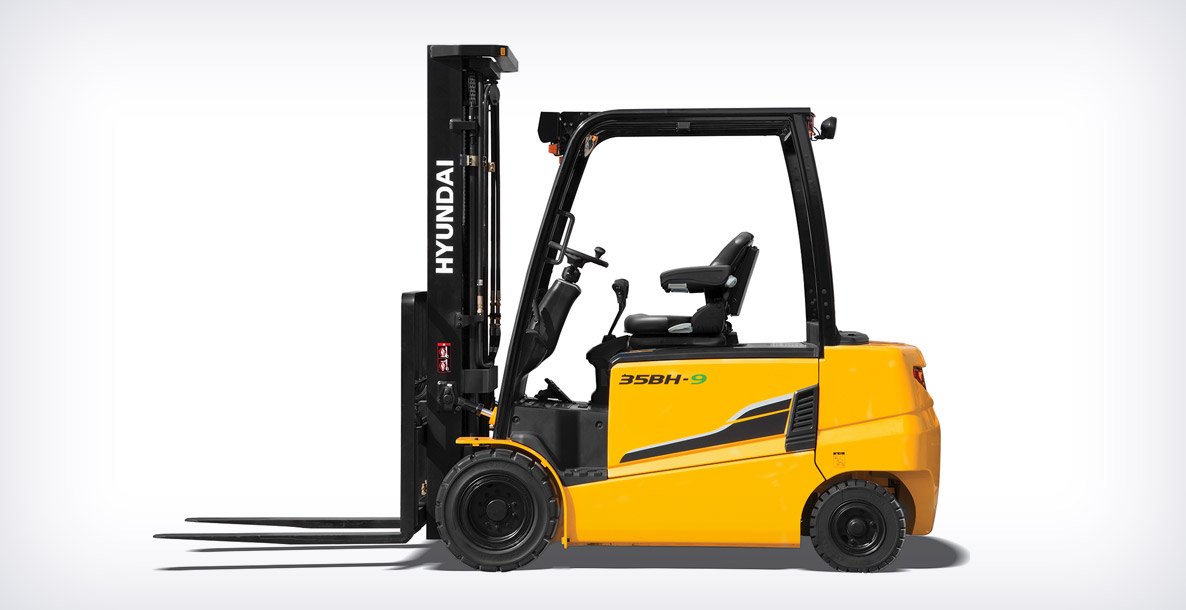

Hyundai introduces a new line of 9-series battery forklift trucks. The newly designed 4 wheel counterbalance trucks provide every operator comfortable driving, increased productivity and easy maintenance.

Load Capacity
2,500kg to 3,500kg
TIRE TYPE
Pneumatic
BATTERY TYPE
80V/500-600Ah

Product

Features

V

Performance

100% AC ZAPI CONTROL SYSTEM

The enclosed drive and pump motor with AC technology combine power, high maintenance intervals and excellent durability. The brushless AC motors offer improved efficiency and reduced
maintenance cost.

PERFORMANCE

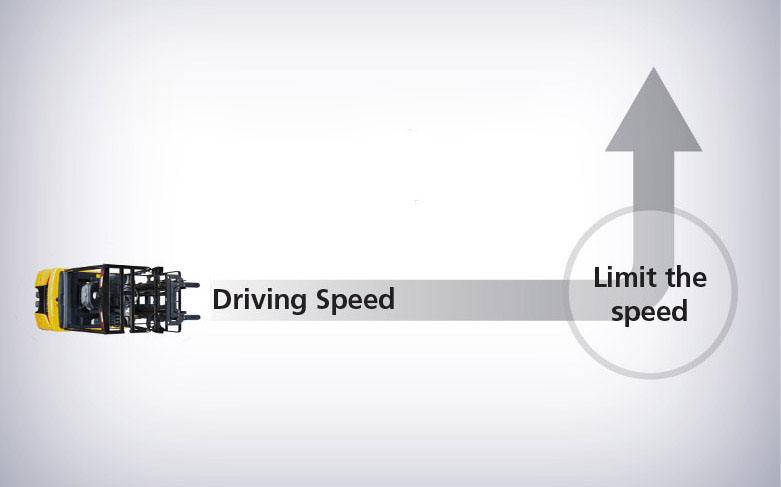

CURVE CONTROL

Curve control limits travel speed based on turning radius, reducing speed for a smooth, precise turning operation for the driver.

PERFORMANCE

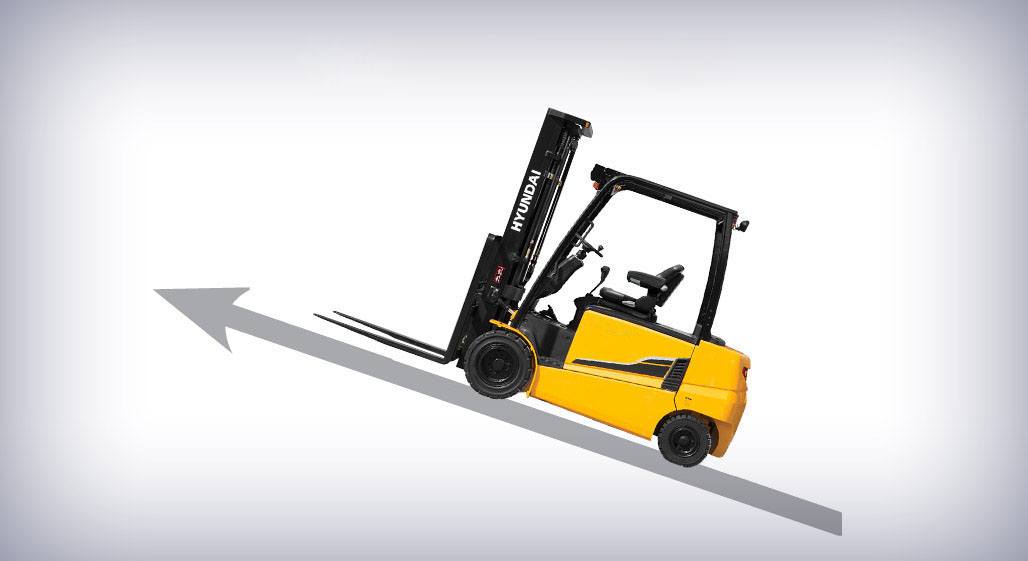

ANTI-ROLL BACK SYSTEM

Anti Roll-back system offers protection against the machine rolling back on a ramp in combination with exceptional ramp start capabilities.

PERFORMANCE

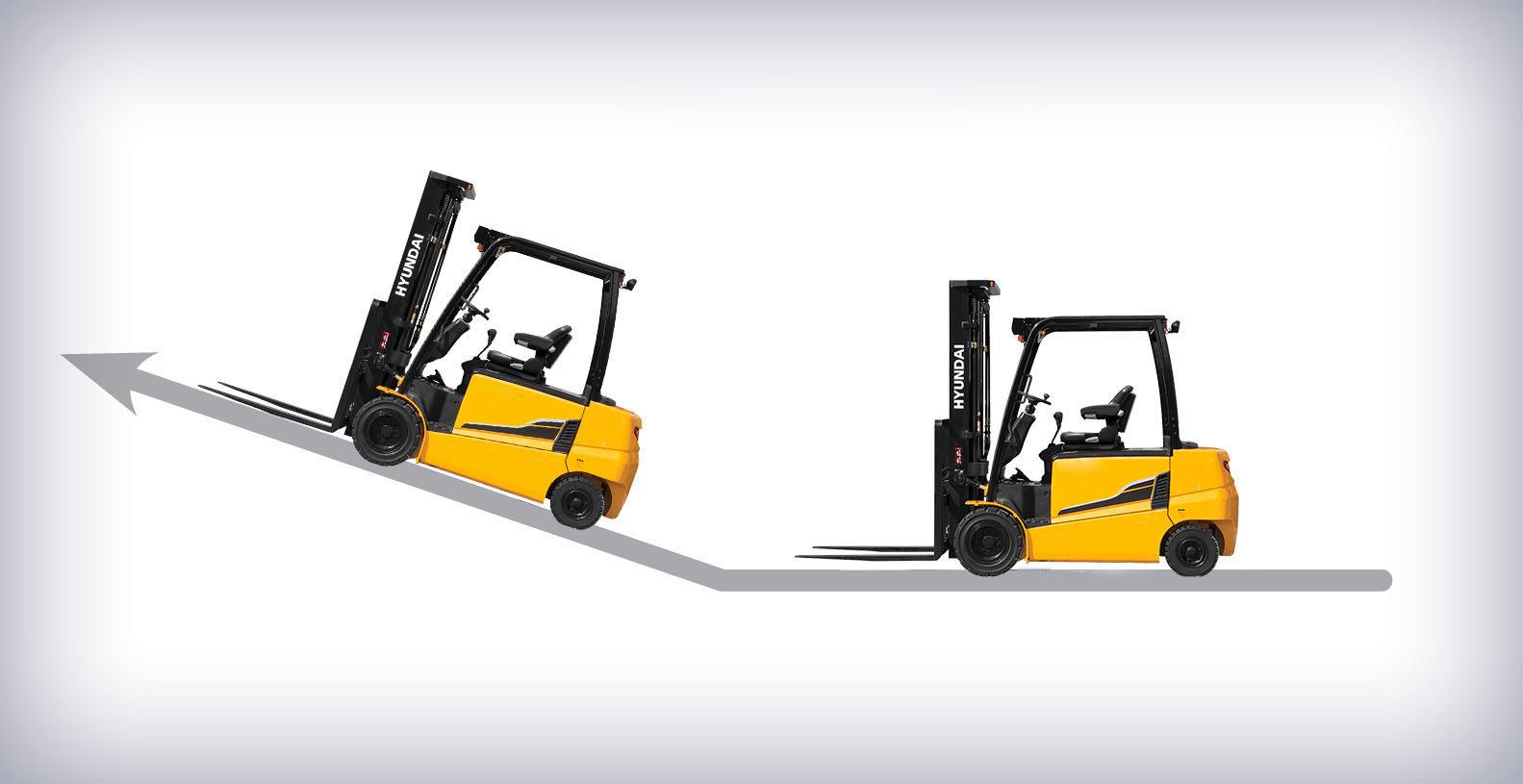

EXCELLENT GRADEABILITY

The gradeability ranges from 22%-24% with a max speed of 19 km per hour.

ERGONOMICS

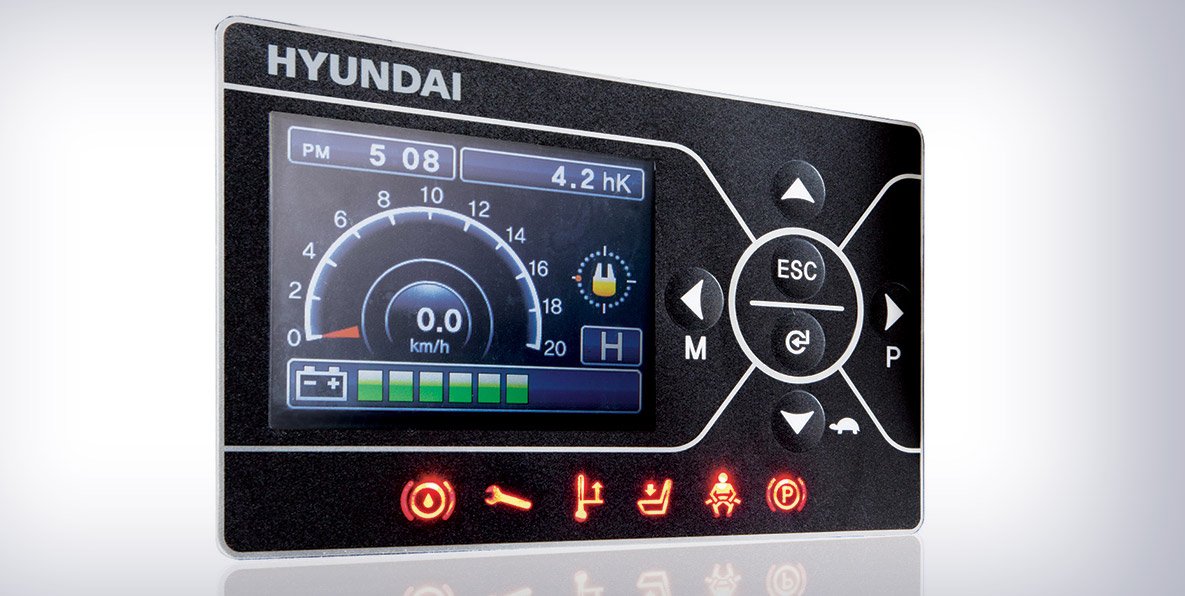

Advanced 3.5 Inch LCD Monitor

The LCD monitor with 3.2 inch graphic smart display allows the operator to easily and efficiently control the machine. The monitor provides information about speed & accelerator level, steer angle & travel direction, battery discharge indicator, hour meter, & working mode.

ERGONOMICS

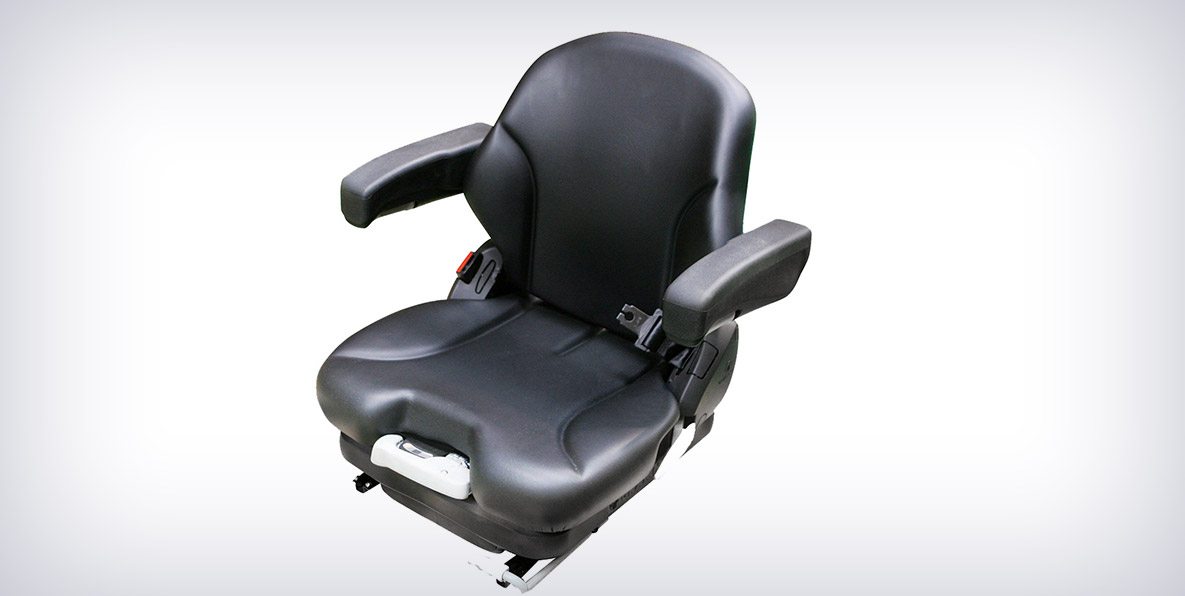

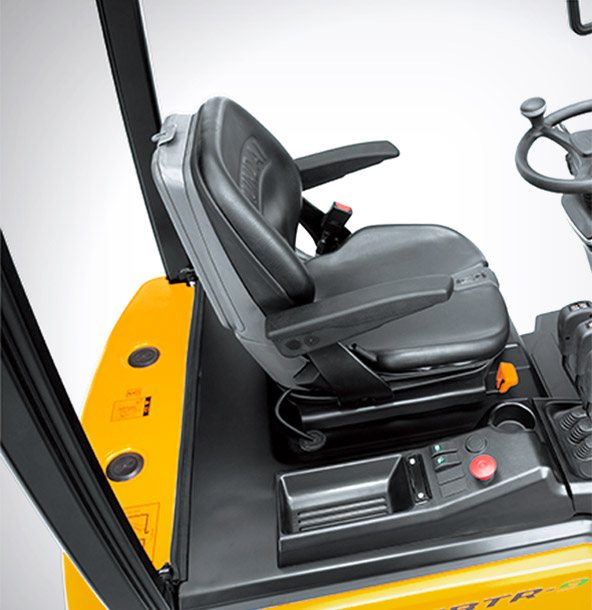

Grammer™ Full Suspension Seat

An easily adjustable ergonomic seat provides unmatched comfort and reduces operator fatigue. Energy locking retractor (ELR) seat belt, heater (OPT) and headrest (OPT) & adjustable armrests.

ERGONOMICS

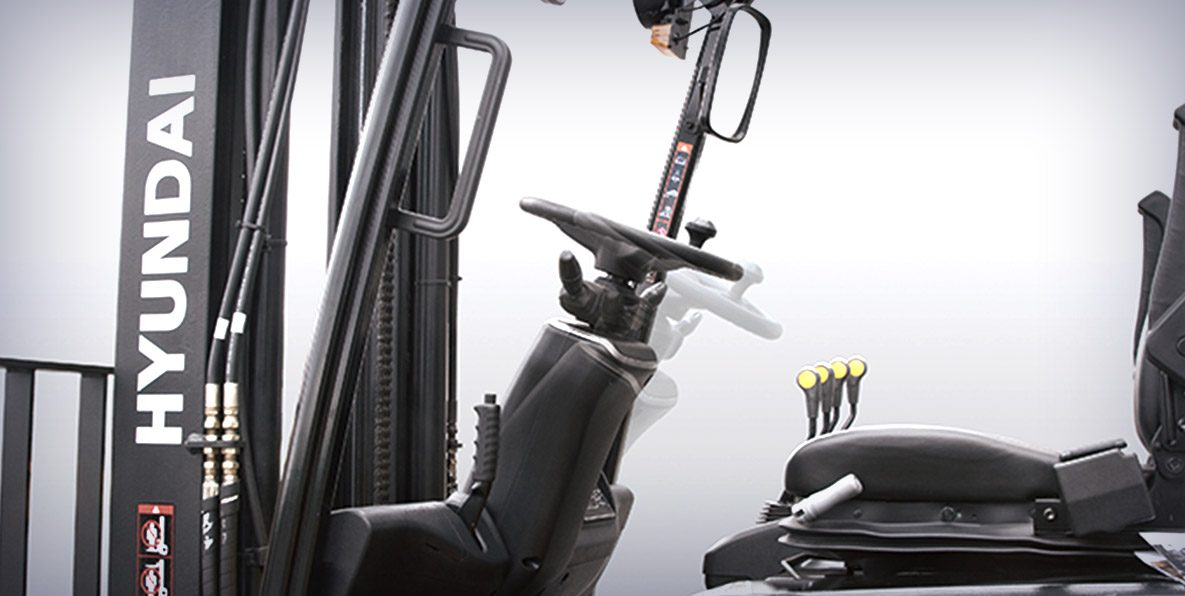

Adjustable Steering Wheel

To achieve a comfortable drive position, the angle of the steering column can easily be adjusted through a lever on the right-hand side of the steering column.

Serviceability

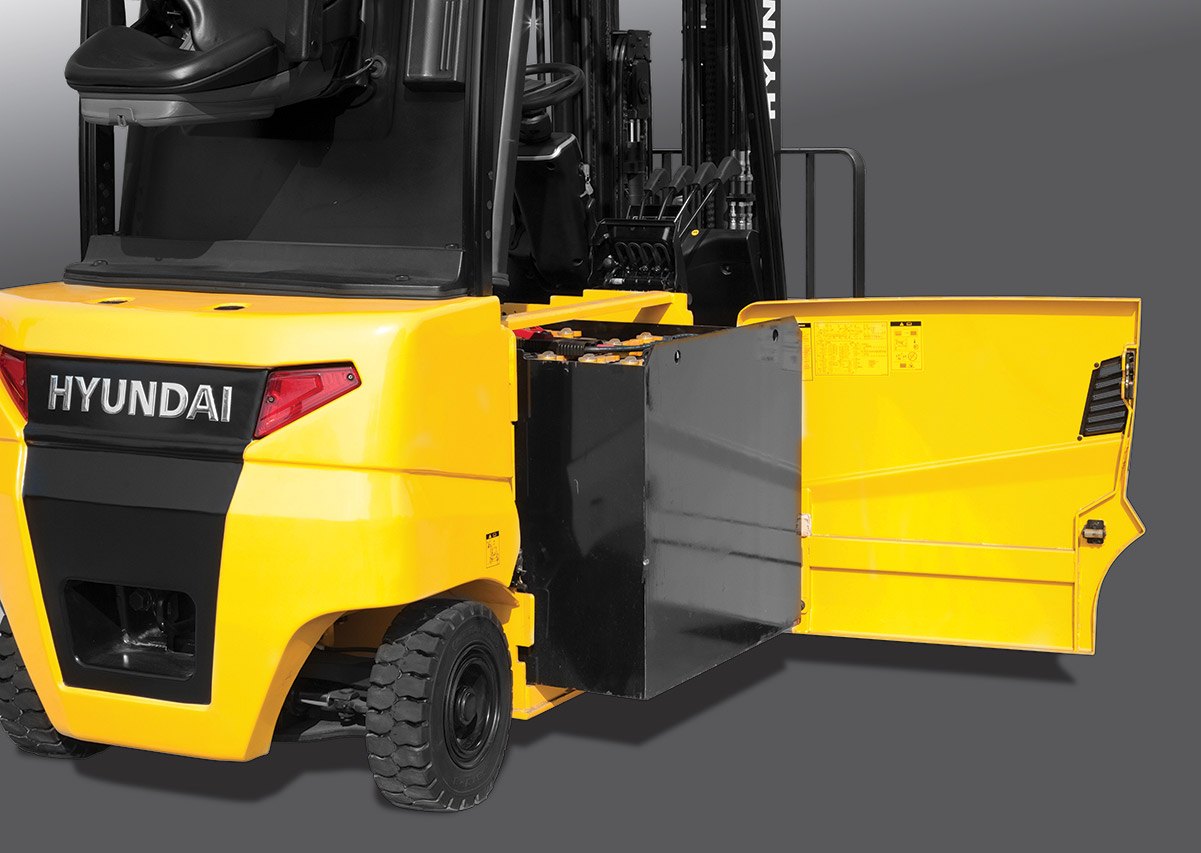

EASY BATTERY REPLACEMENT

The battery compartment is equipped with a side battery removal assembly for easy removal and replacement.

SERVICEABILITY

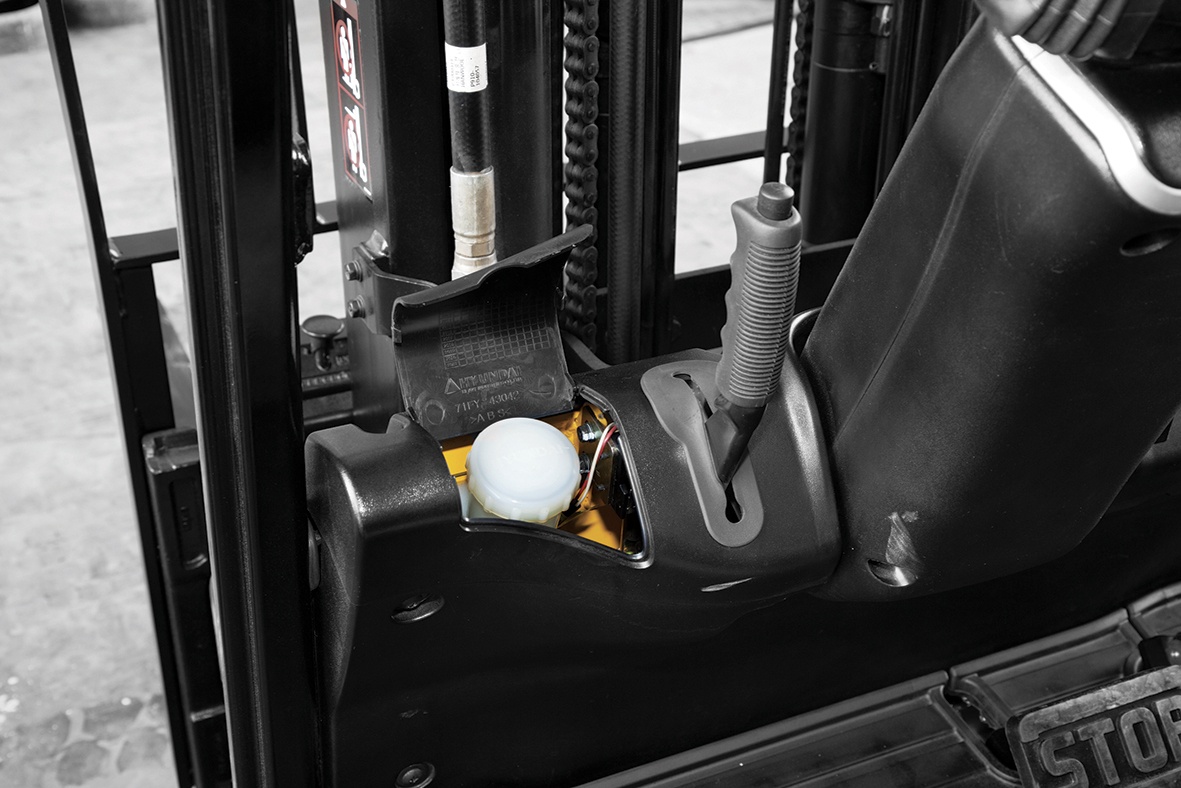

BRAKE OIL RESERVOIR WITH LEVEL SENSOR

The enhanced brake oil reservoir, located in the upper left dash, is equipped with an electronic level sensor and easily visible through the monitor.

SAFETY

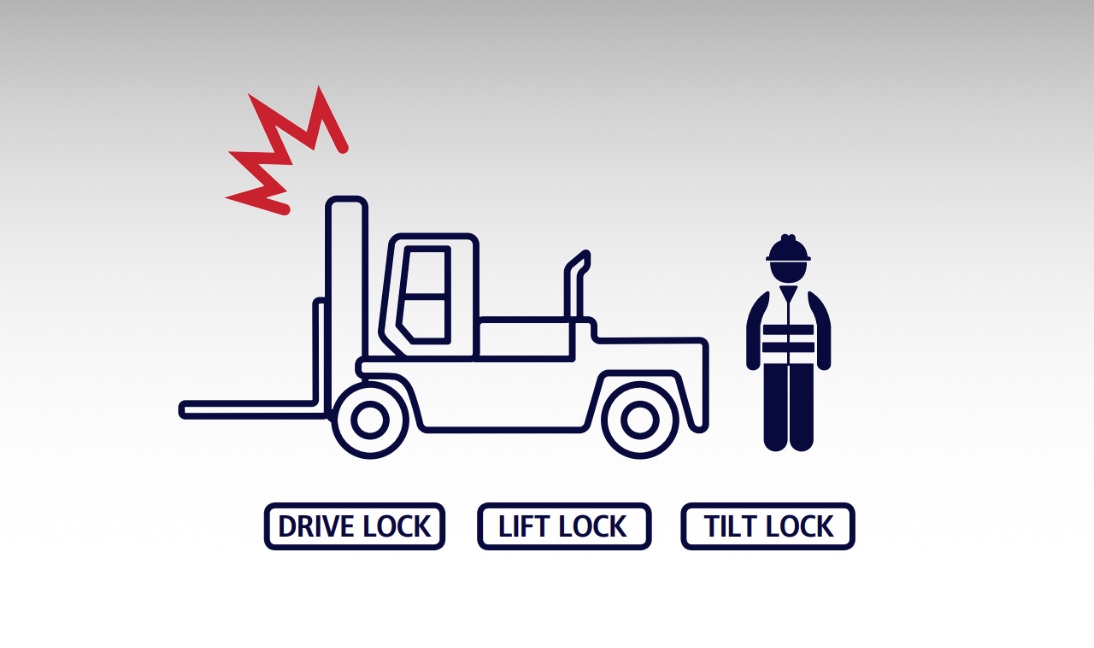

OPSS (OPERATOR PRESENCE SENSING SYSTEM)

All mast and drive movements stop functioning when the operator is not in the seat.

SAFETY

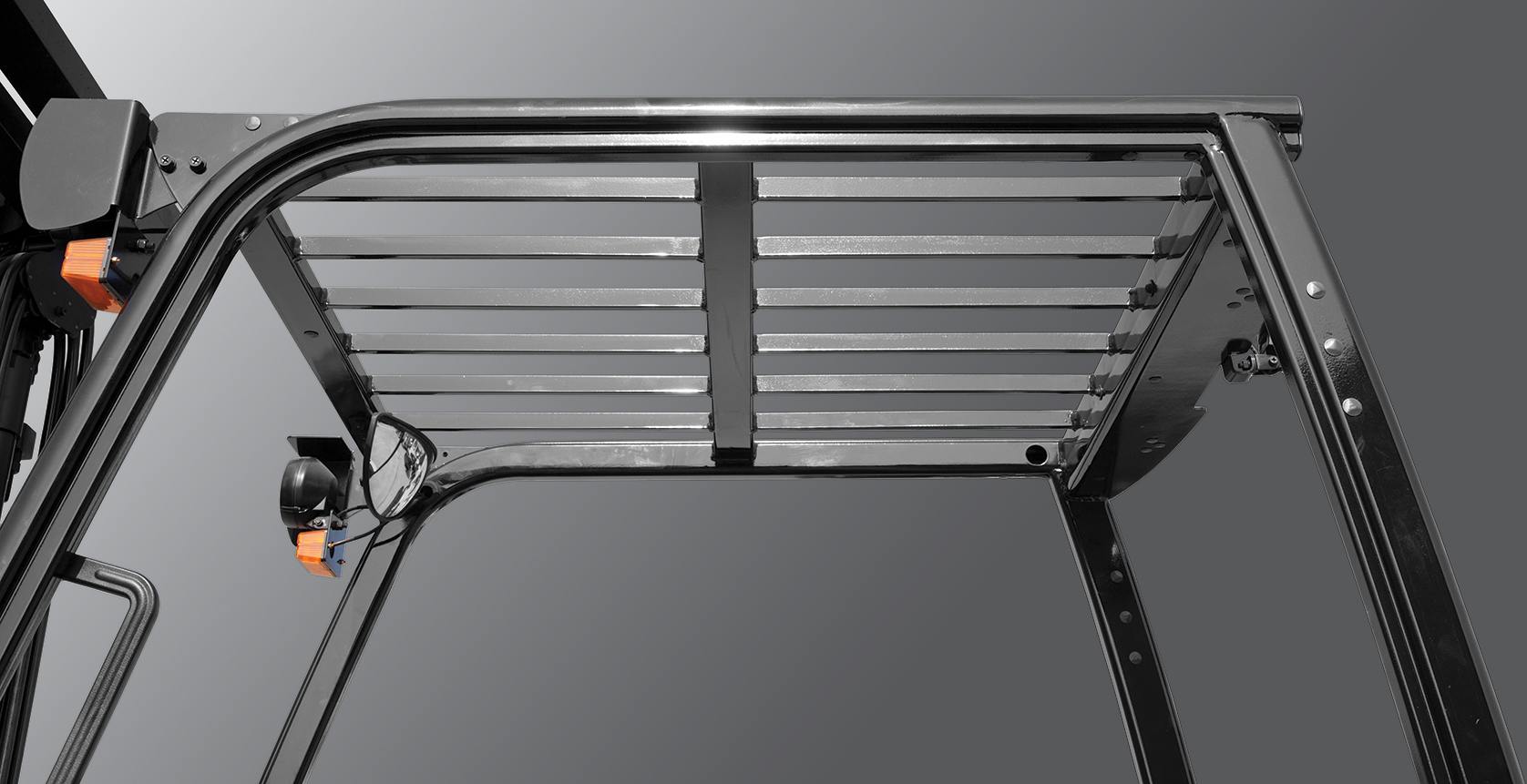

STRONG OVERHEAD GUARD

Exceeding CEE and ANSI regulations, the overhead guard offers great protection combined with excellent all round visibility.

SAFETY

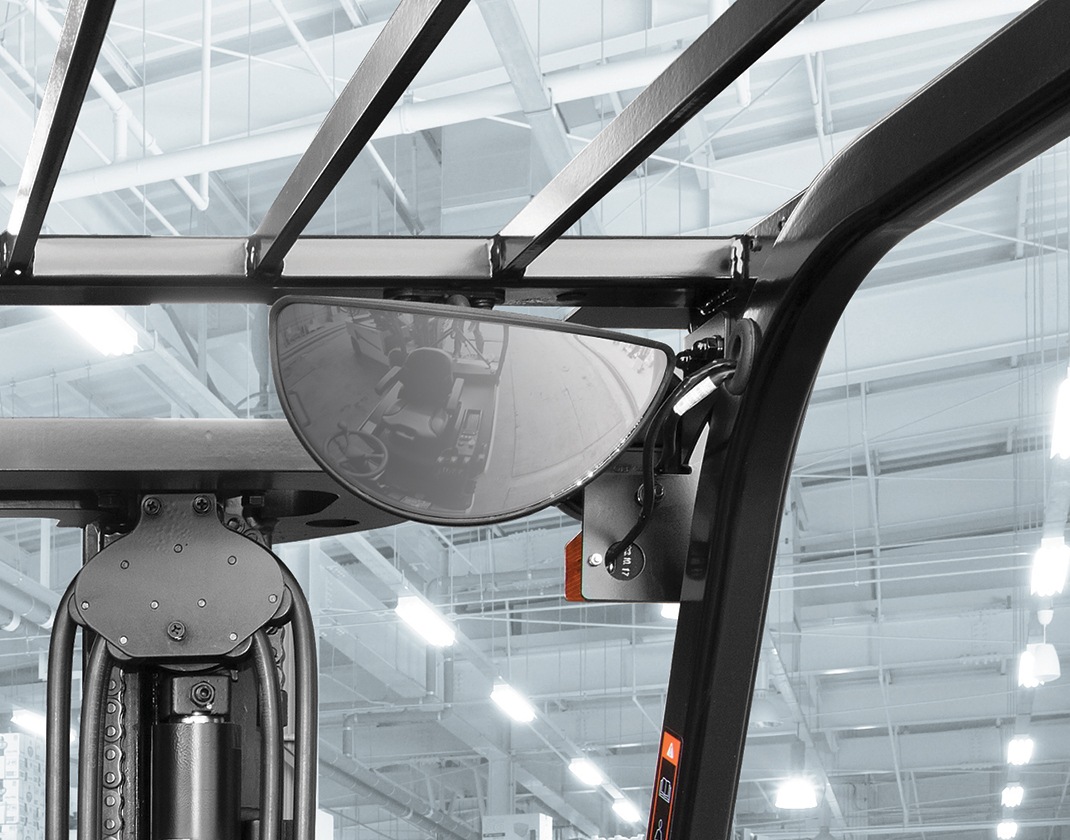

PANORAMIC MIRROR

The panoramic mirror expands the driver’s view when backing up.

SAFETY

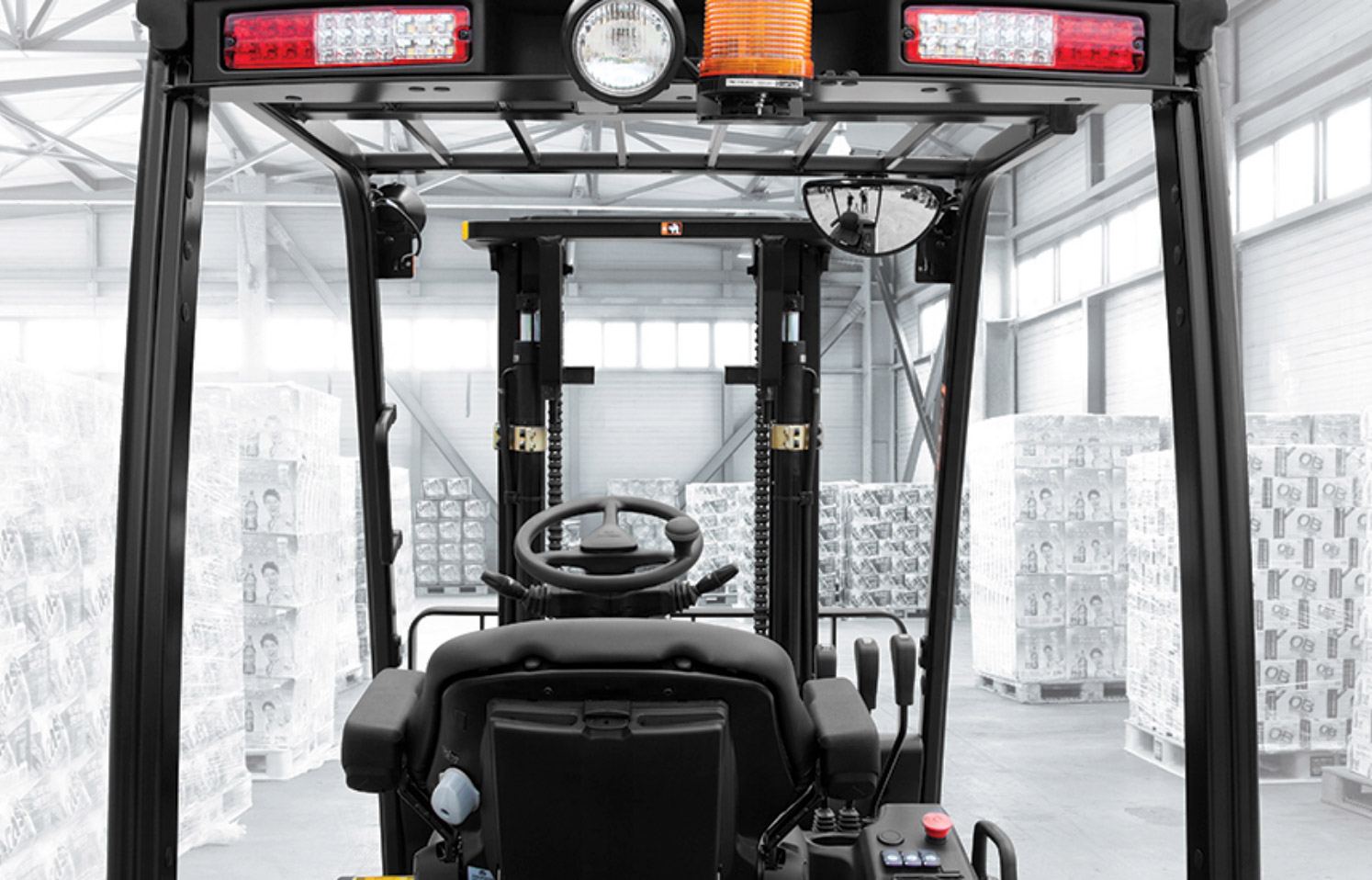

EXCELLENT VISIBILITY

Optimized lift cylinder arrangement provides operator with wider visibility. The panoramic mirror expands the driver’s view when backing up.

Product

Specifications

25, 30, 35BH-9

SpecificationsDownload Product Brochure

Load Capacity
2,200kg to 3,500kg
TRAVEL SPEED (UNLOADED)
19 kph
VOLTAGE/AMPERAGE
80V/500-600Ah
LENGTH TO FACE OF FORKS
2,365mm to 2,601mm
OVERHEAD GUARD HEIGHT
2,210mm
Overall Width
1,194mm to 1,245mm
TURNING RADIUS
1,925mm to 2,144mm
