ELECTRIC 4 WHEEL

25, 30, 32, 35B-9U

COUNTER BALANCE

ELECTRIC 4 WHEEL

25, 30, 32, 35B-9U

COUNTER BALANCE

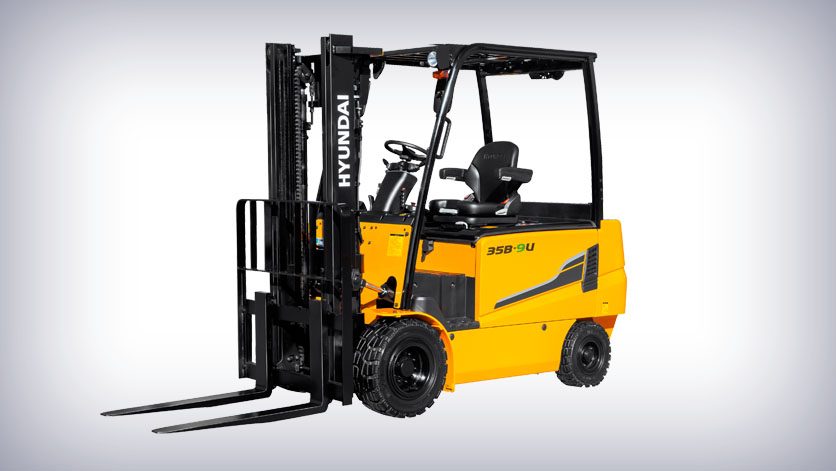

Introducing the upgraded Hyundai 9 series 48 volt electric four wheel design counter balance forklifts. The 9 Series brings customers added value with market leading energy efficiency and enhanced powertrain durabilty. This forklift is unique in that it is also capable of running on a Lithium ion battery with no cost of modifications.

LOAD CAPACITY
2,500kg to 3,500kg
TYRE TYPE
Pneumatic
BATTERY TYPE
48V/660-715Ah

Product

Features

V

PERFORMANCE

CURVE CONTROL

Curve control limits travel speed based on turning radius, reducing speed for a smooth, precise turning operation for the driver.

Performance

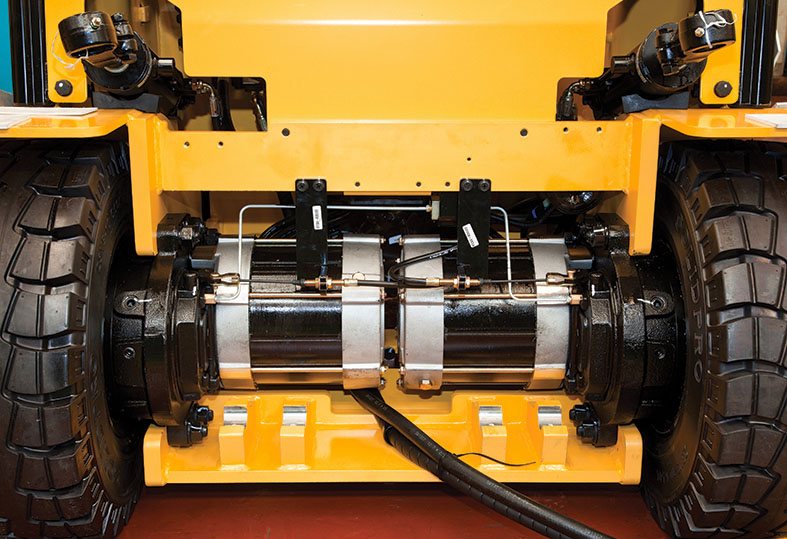

100% AC ZAPI CONTROL SYSTEM

The enclosed drive and pump motor with AC technology combine power, high maintenance intervals and excellent durability.

PERFORMANCE

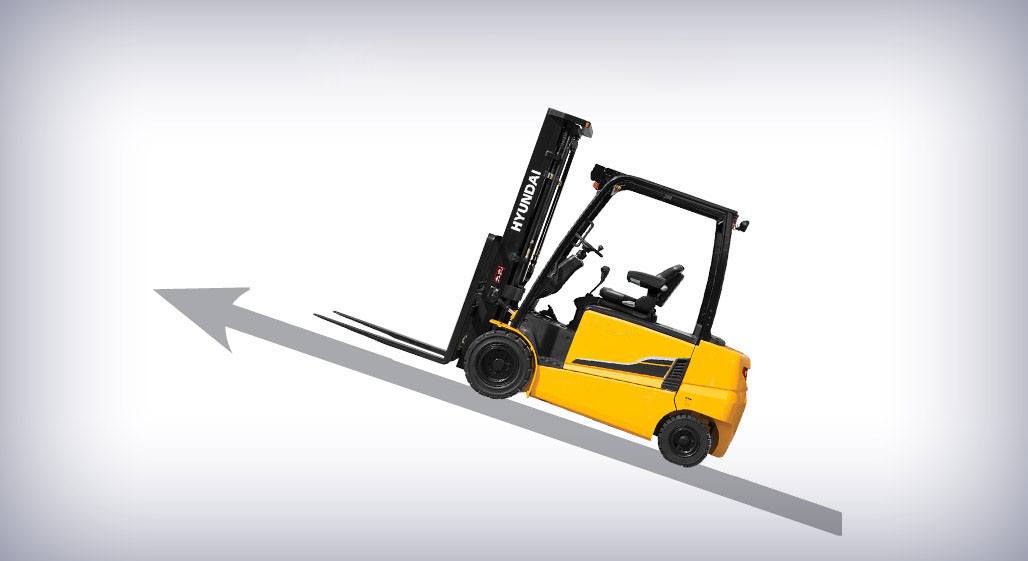

ANTI-ROLL BACK SYSTEM

Anti Roll-back system offers protection against the machine rolling back on a ramp in combination with exceptional ramp start capabilities.

PERFORMANCE

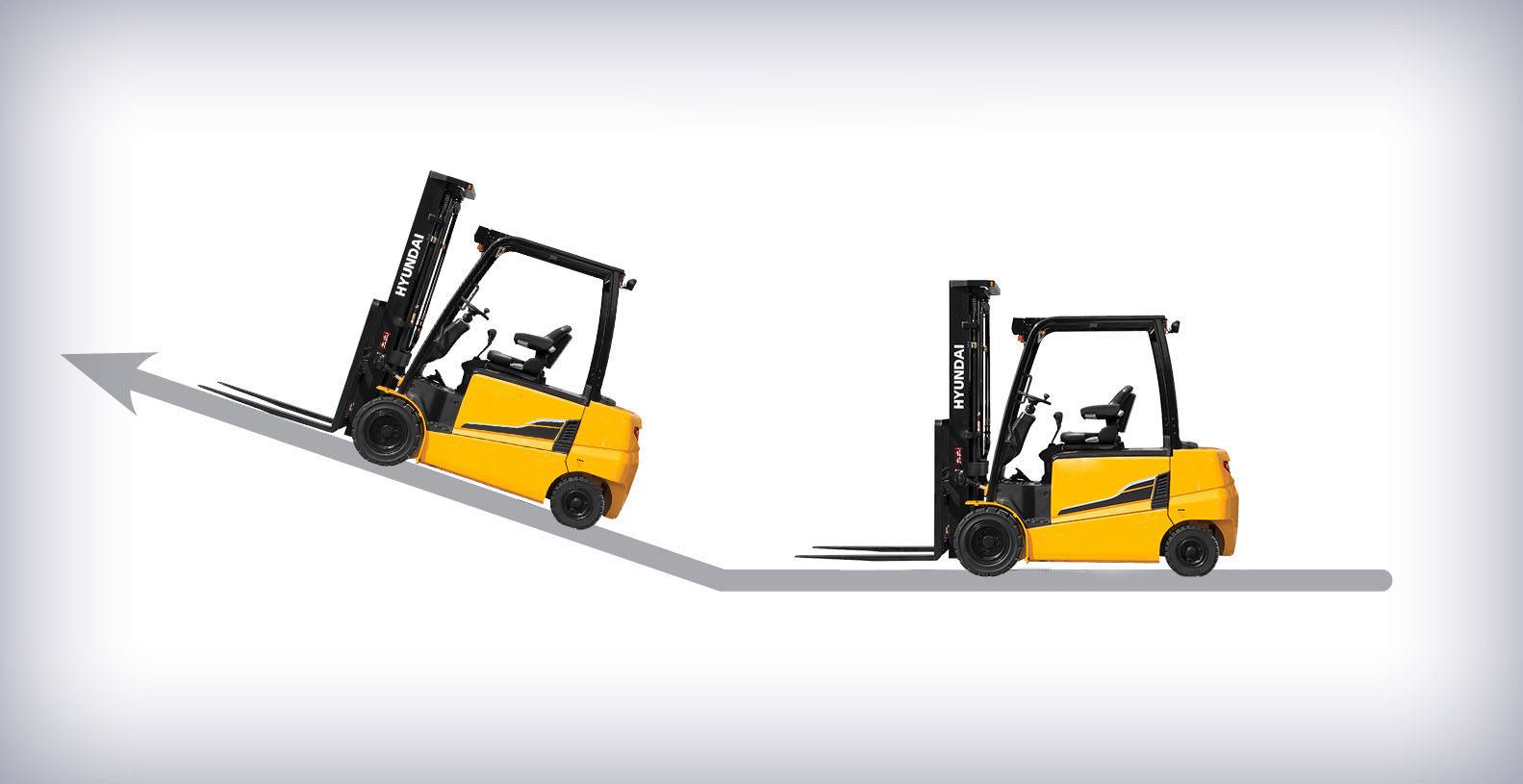

EXCELLENT GRADEABILITY

The gradeability ranges from 22%-17% with a max speed of 16.1 km per hour.

ERGONOMICS

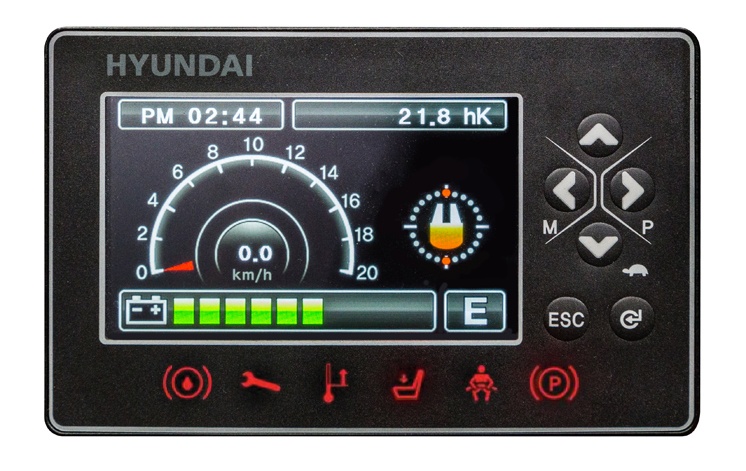

4.3 inch LCD color monitor

The LCD color monitor with 4.3 inch graphic smart display allows the operator to identify speed, travel direction, and operating hours and control the machine efficiently. The load indicator displays the load weight in the monitor. The operator can select various performance modes to meet all working conditions. Multilanguage (maximum 11) is available.

ERGONOMICS

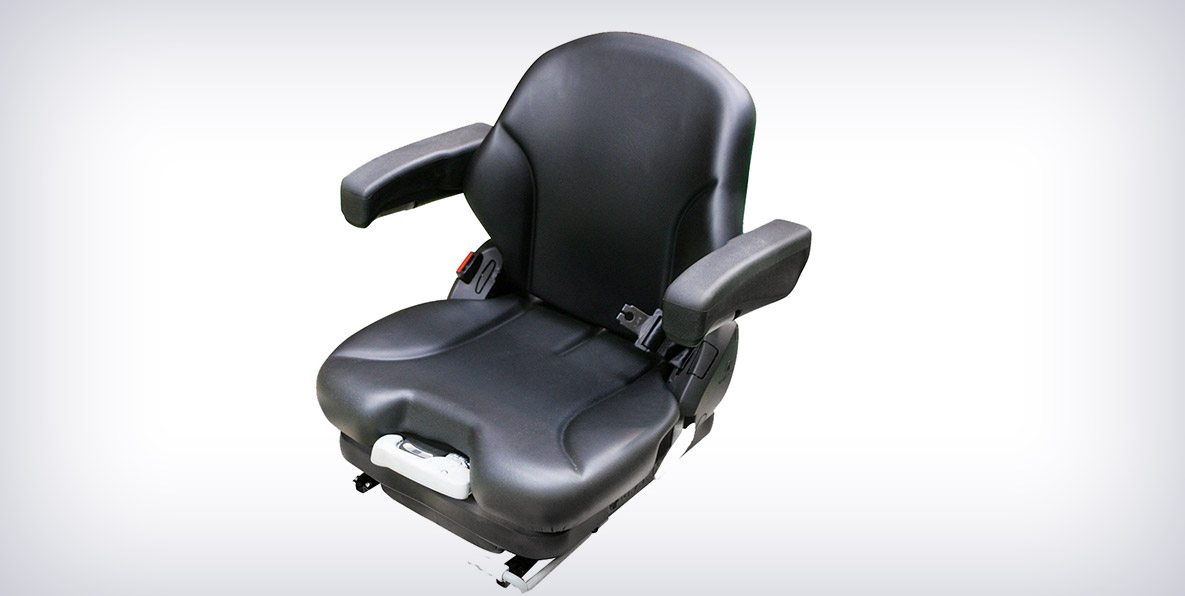

Grammer™ Full Suspension Seat

An easily adjustable ergonomic seat provides unmatched comfort and reduces operator fatigue. Energy locking retractor (ELR) seat belt, heater (OPT) and headrest (OPT) & adjustable armrests.

ERGONOMICS

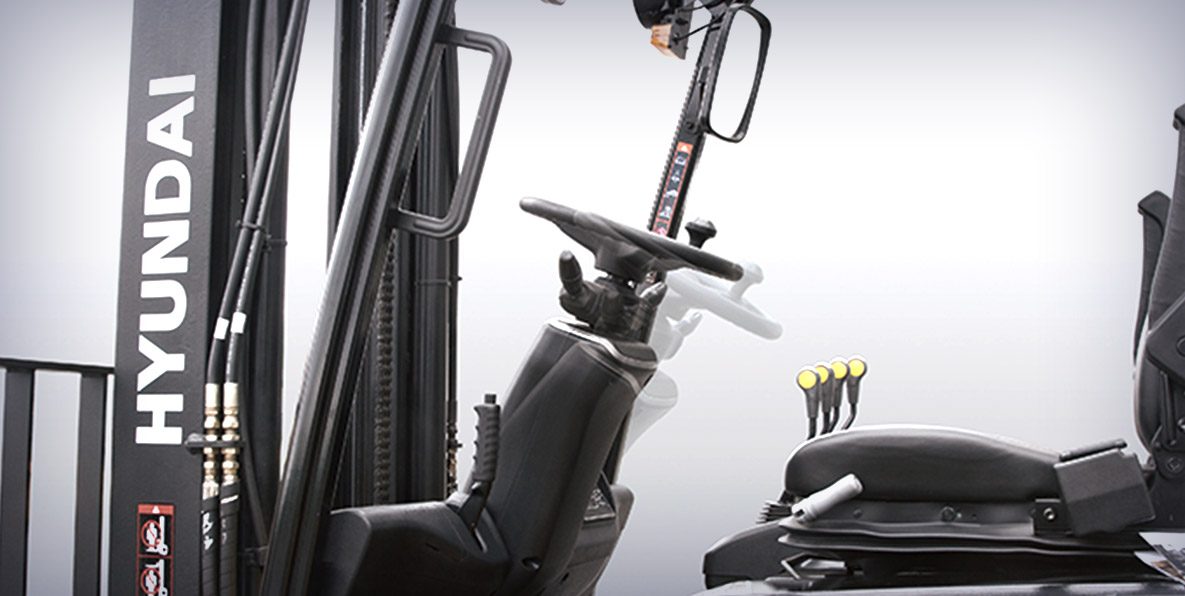

Adjustable Steering Wheel

To achieve a comfortable drive position, the angle of the steering column can easily be adjusted through a lever on the right-hand side of the steering column.

Serviceability

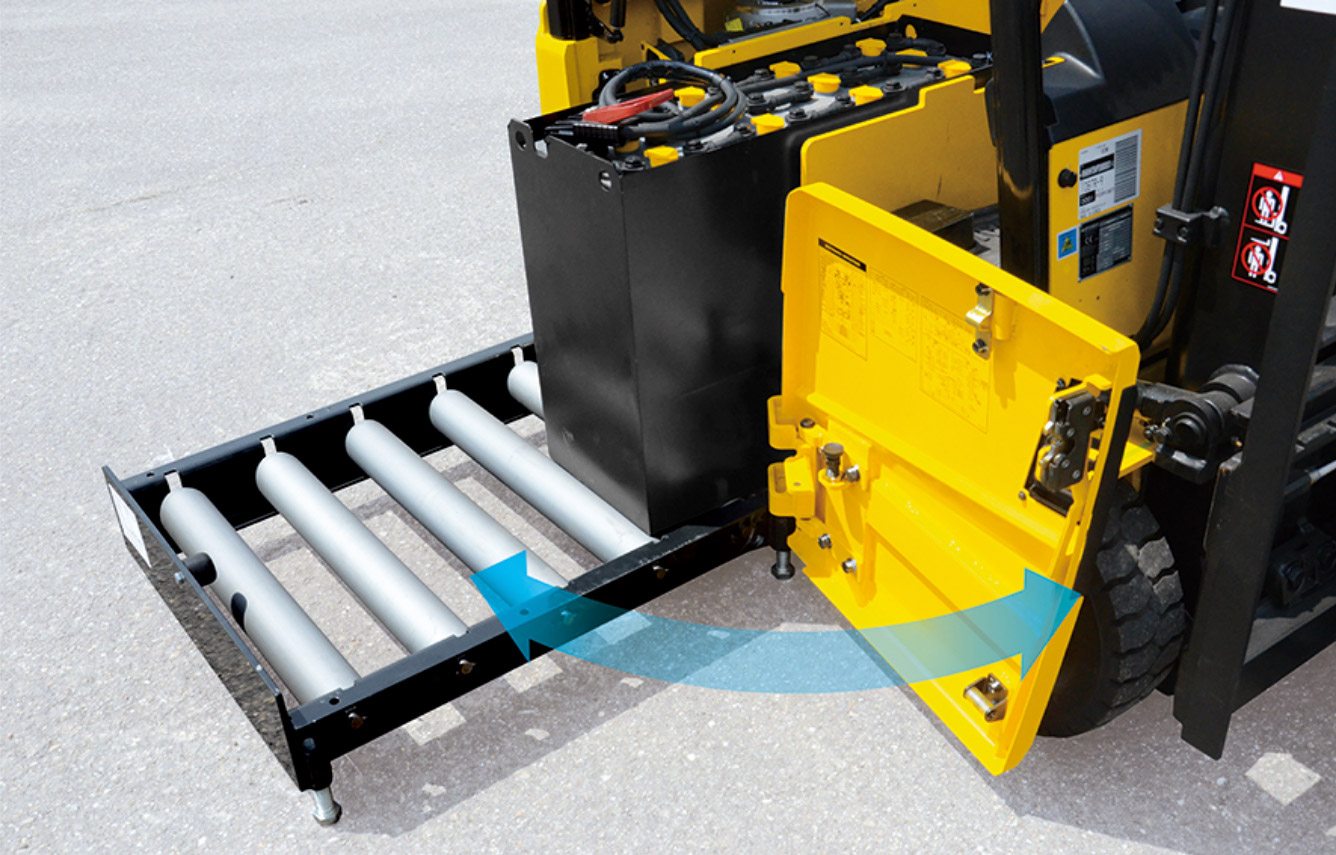

EASY BATTERY REPLACEMENT

The battery compartment is equipped with a side battery removal assembly for easy removal and replacement.

SERVICEABILITY

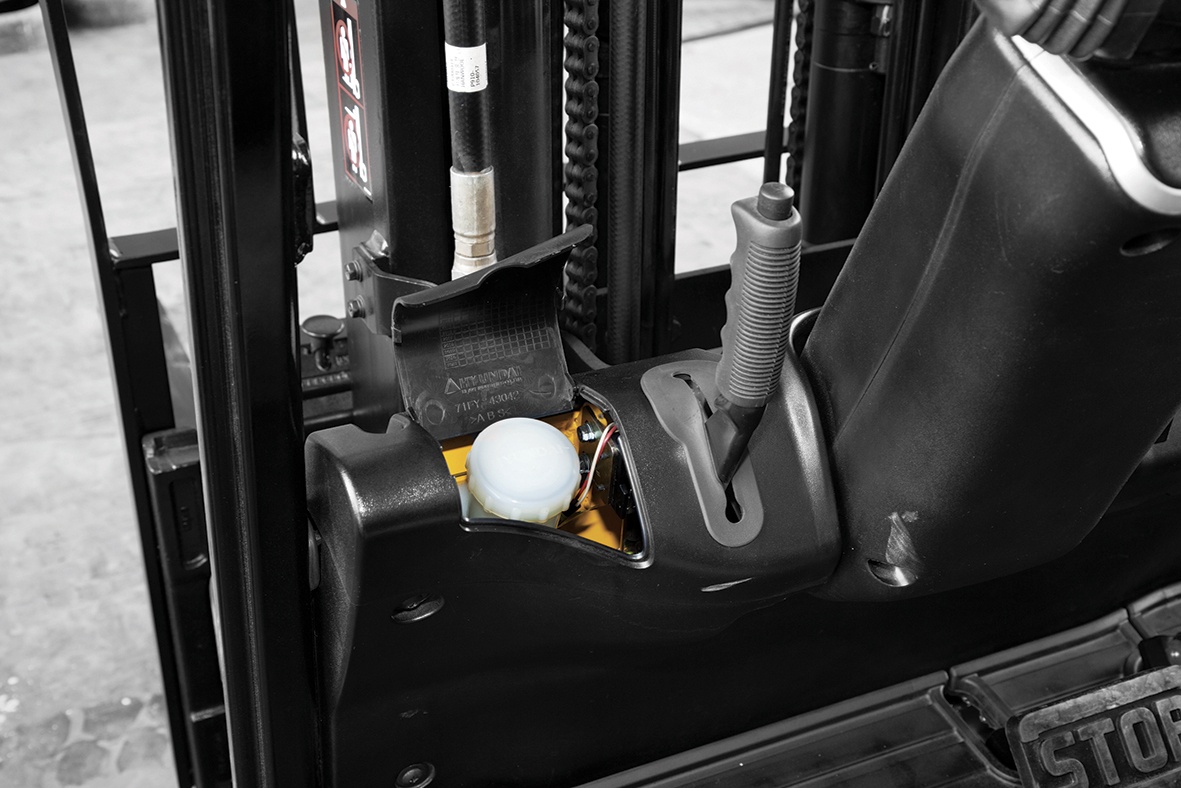

BRAKE OIL RESERVOIR WITH LEVEL SENSOR

The enhanced brake oil reservoir, located in the upper left dash, is equipped with an electronic level sensor and easily visible through the monitor.

SERVICEABILITY

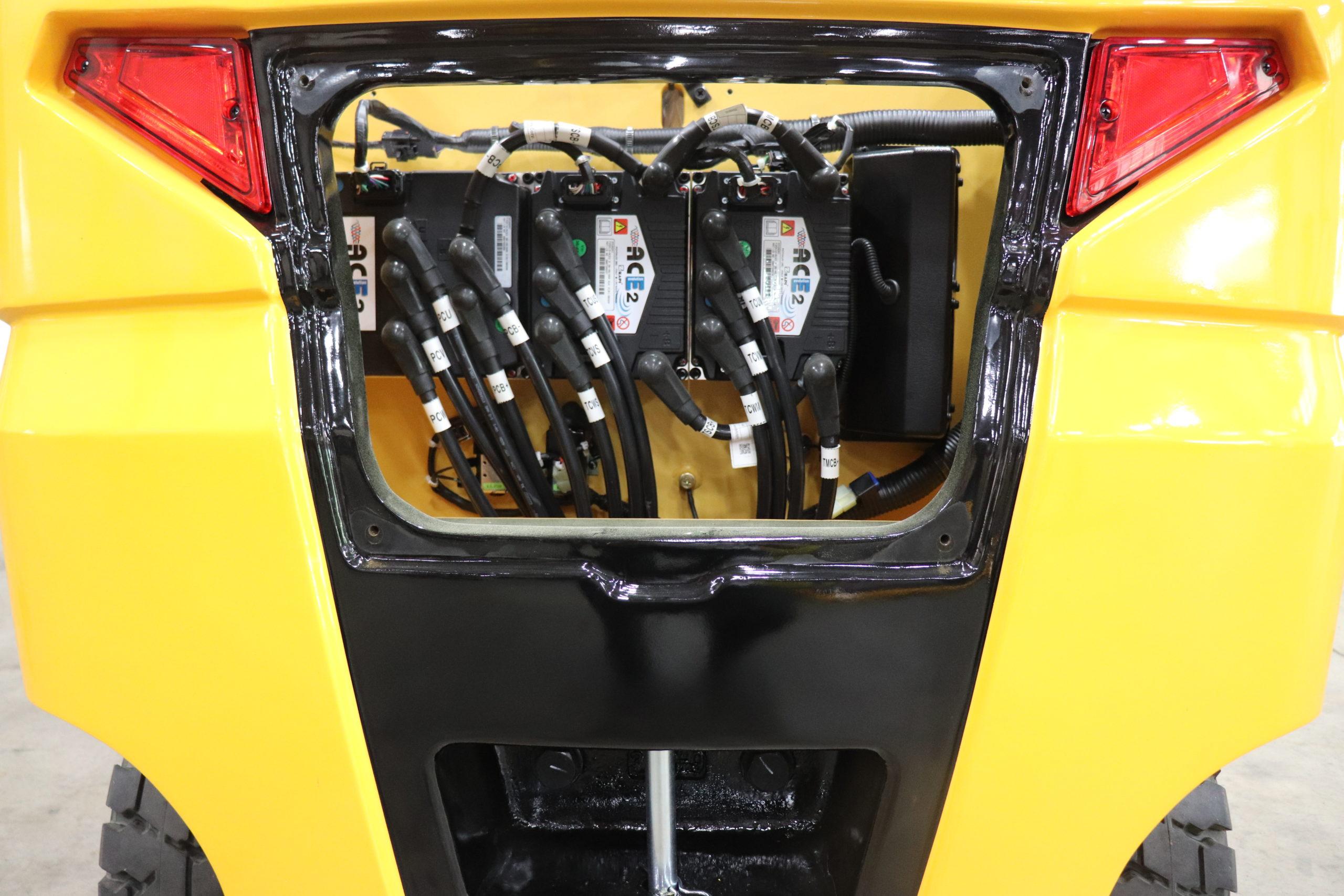

EASY TO MAINTAIN CONTROLLER

The AC controllers are strategically placed for quick access.

SAFETY

OPSS (OPERATOR PRESENCE SENSING SYSTEM)

All mast and drive movements stop functioning when the operator is not in the seat.

SAFETY

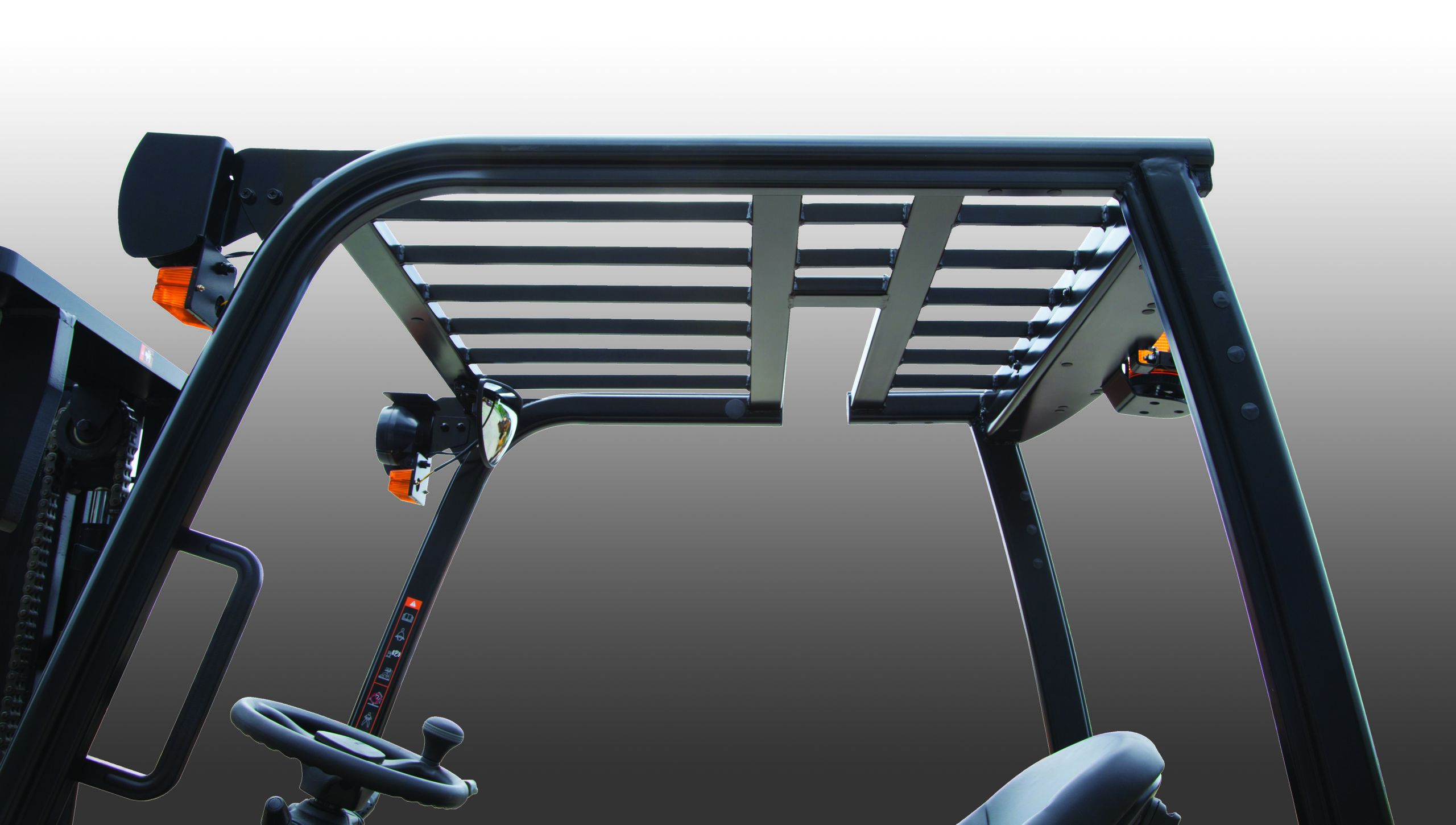

STRONG OVERHEAD GUARD

Exceeding CEE and ANSI regulations, the overhead guard offers great protection combined with excellent all round visibility.

SAFETY

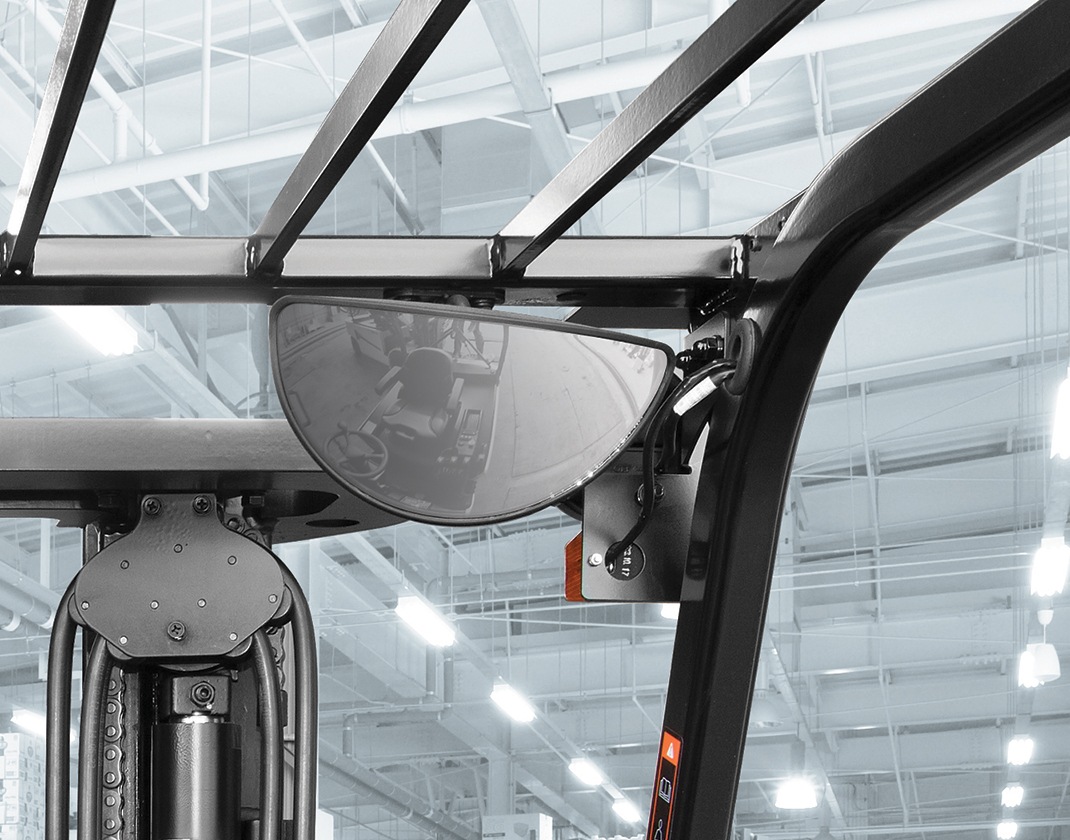

PANORAMIC MIRROR

The panoramic mirror expands the driver’s view when backing up.

SAFETY

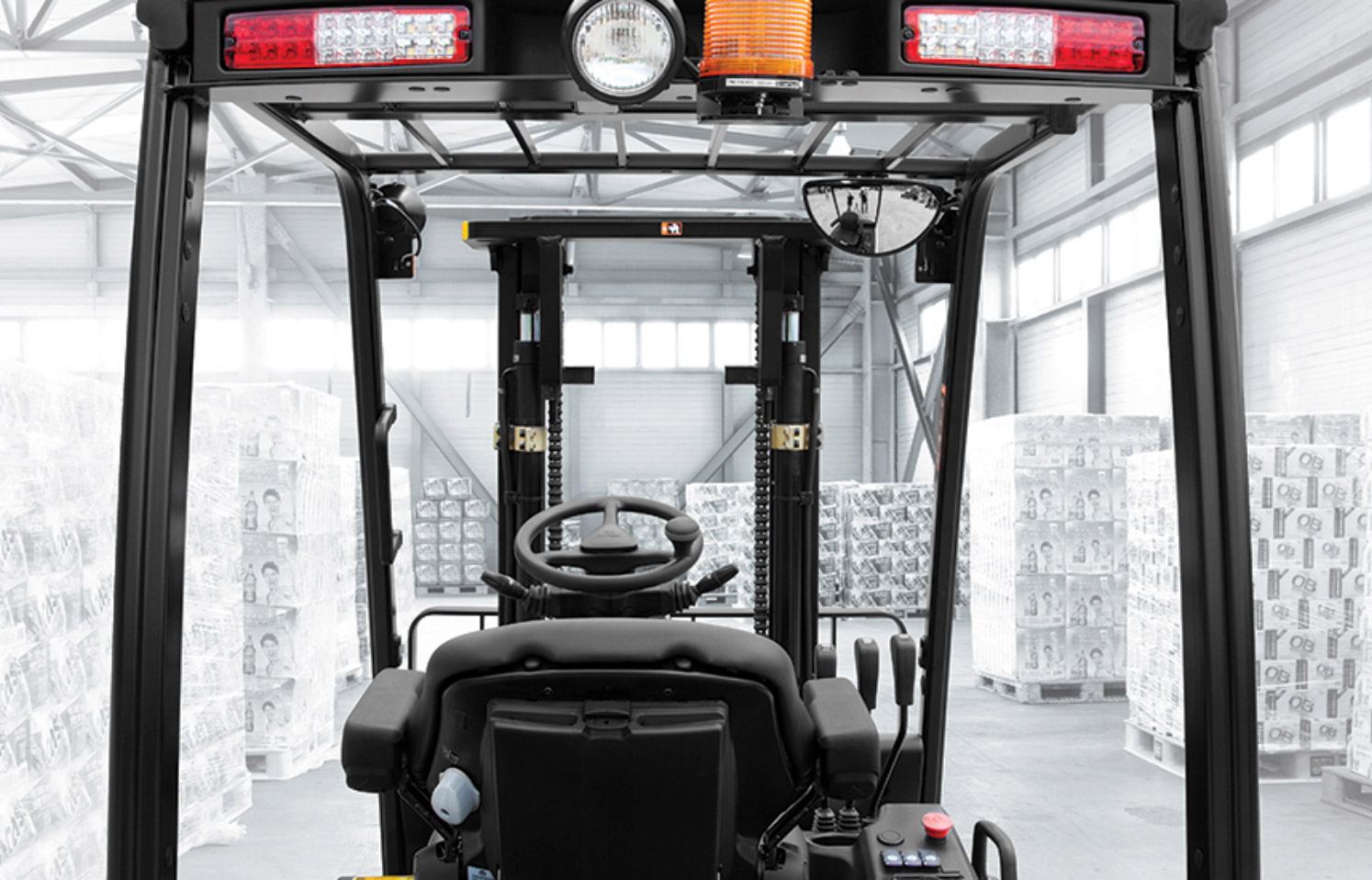

EXCELLENT VISIBILITY

Optimised lift cylinder arrangement provides operator with wider visibility. The panoramic mirror expands the driver’s view when backing up.

Product

Specifications

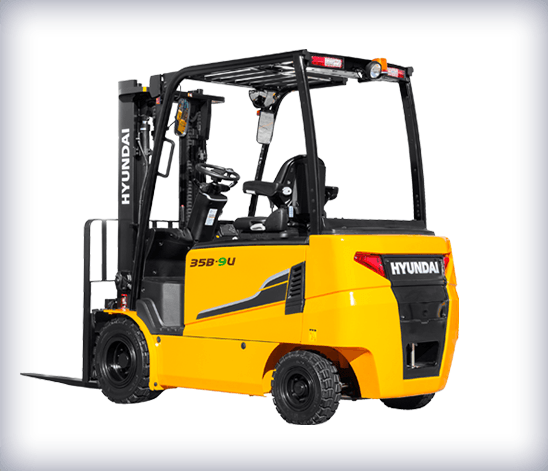

25, 30, 32, 35B-9U

SpecificationsDownload Product Brochure

LOAD CAPACITY
2,500kg to 3,500kg
TRAVEL SPEED (UNLOADED)
16.1 kph
VOLTAGE/AMPERAGE
48V/660-715Ah
LENGTH TO FACE OF FORKS
2,296mm to 2,591mm
OVERHEAD GUARD HEIGHT
2,230mm
OVERALL WIDTH
1,199mm to 1,250mm
TURNING RADIUS
1,941mm to 2,205mm
