LPG (PREMIUM MODEL)

25-30-33L-9A 35LN-9A

TIER 4 ENGINE

LPG (PREMIUM MODEL)e

25-30-33L-9A 35LN-9A

TIER 4 ENGINE

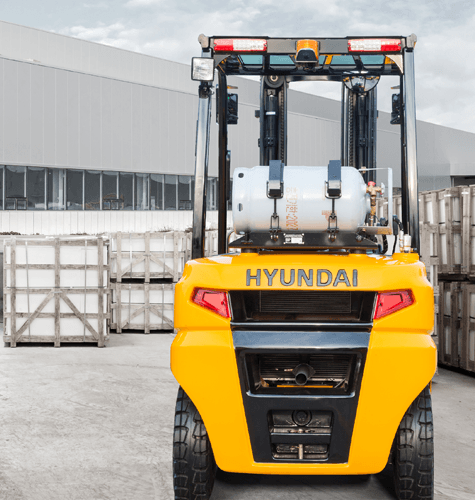

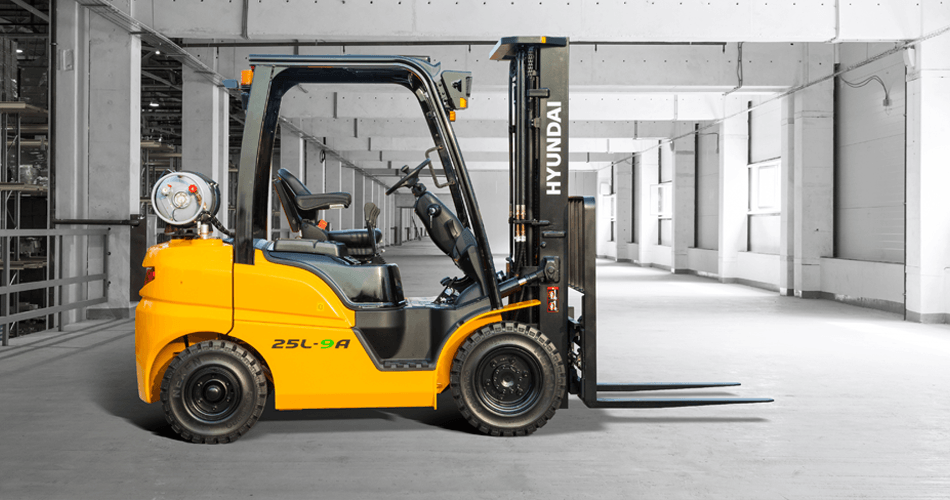

Hyundai 9 Series LPG Counter Balance Forklifts from 2,500kg to 3,500kg capacity. The units come standard with a Fully certified Tier 4 engine providing much lower fuel consumption and reducing carbon monoxide emissions to negligible levels. Wet disc brakes are standard providing longer life, greater uptime with greatly reduced servicing costs. Also standard is a 5.6″ LCD Color Control Monitor, In Built Load Indicator, Hill-start Assist Control and Hyundai's Inclination Warning System to prevent incidents from instability.

LOAD CAPACITY
2,500 - 3,300kg
POWER TYPE
LPG
ENGINE POWER/ MANUFACTURER
60HP / HYUNDAI L4KB

Product

Features

V

PERFORMANCE

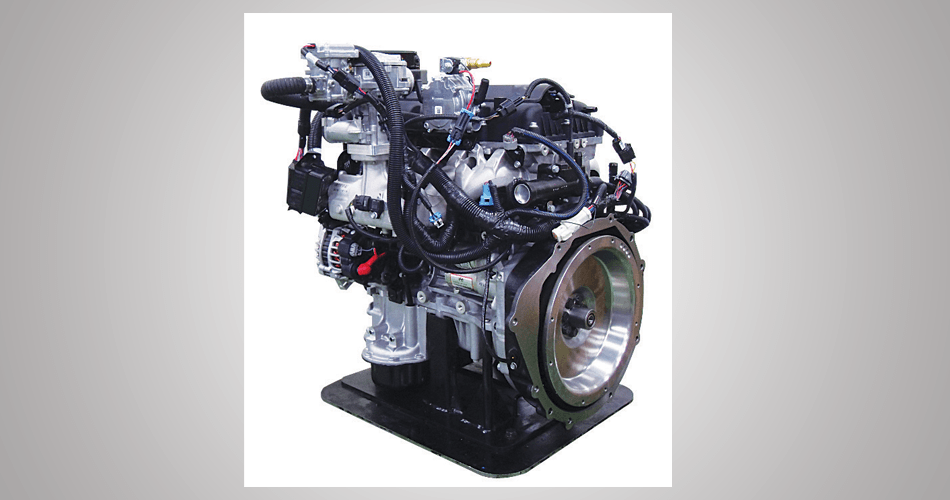

POWERFUL ENGINE

Hyundai L4KB engine ensures incomparable performance and durability. The fully certified Tier 4 Engine offers market leading fuel consumption and up to a 90% reduction in PM and NOx emissions through the use of Hyundai smart control technologies.

PERFORMANCE

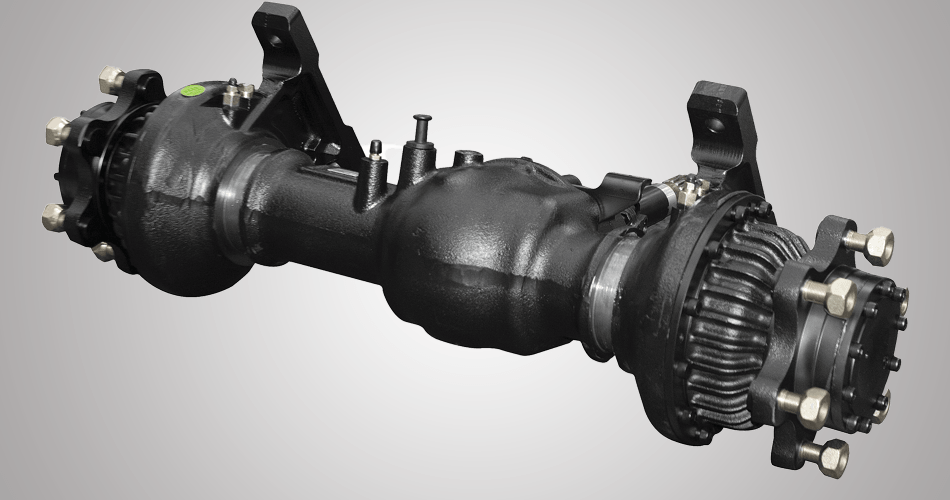

WET DISC BRAKES

The Sealed wet disc brakes offer easy, safe and reliable operation. With longer service intervals and low maintenance costs uptime is maximised.

PERFORMANCE

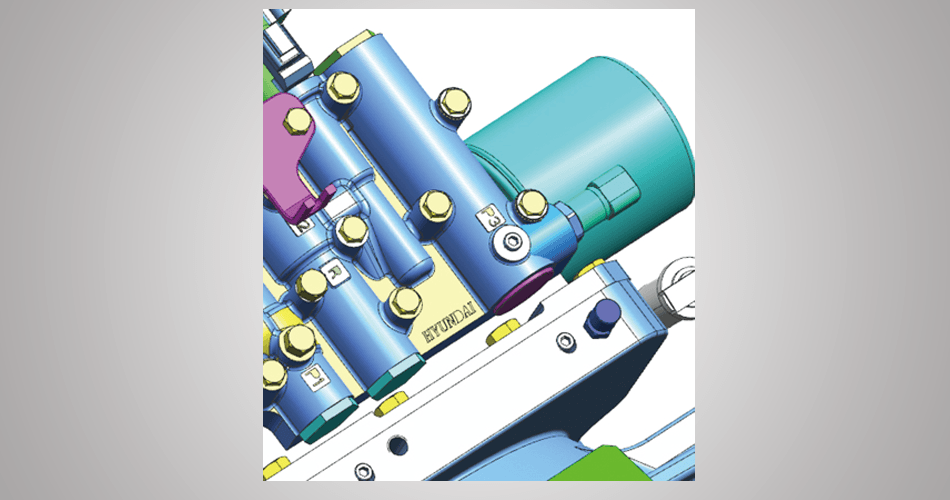

CLUTCH PROTECTION SYSTEM

The Clutch Protection System monitors the inching control of the operator and illuminates a warning lamp should the operator excessivley slip the clutch, offering enhanced proctection and better durabilty.

PERFORMANCE

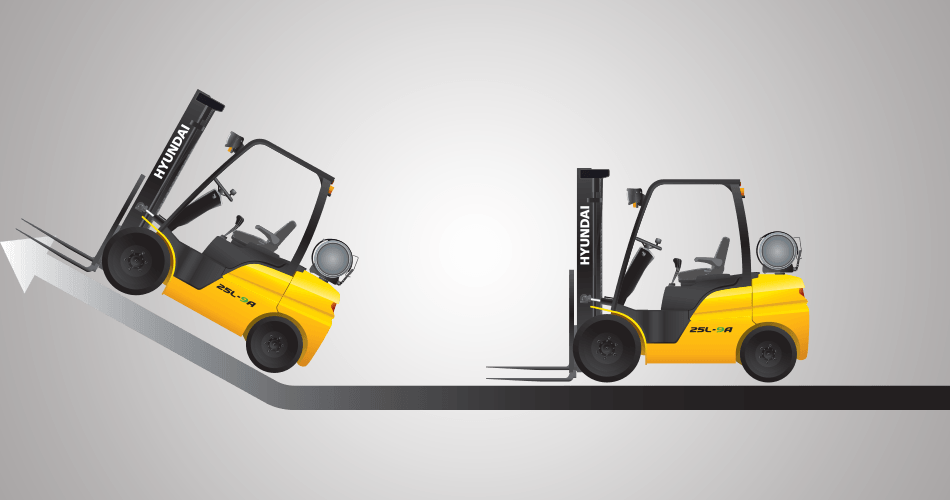

EXCELLENT GRADEABILLITY

The powerful high-output engine delivers improved acceleration (18.7 kph) and gradeabillity (34.2% – 41.2%) on the toughest terrain or slope.

ERGONOMICS

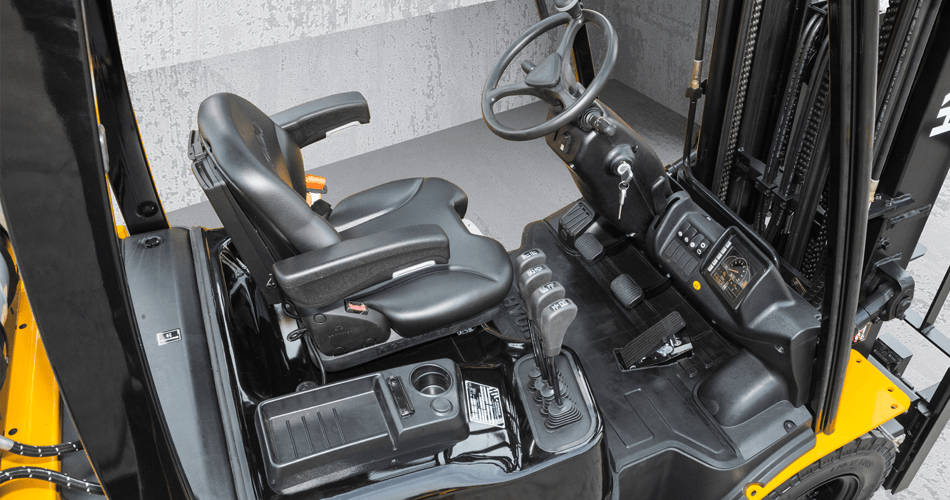

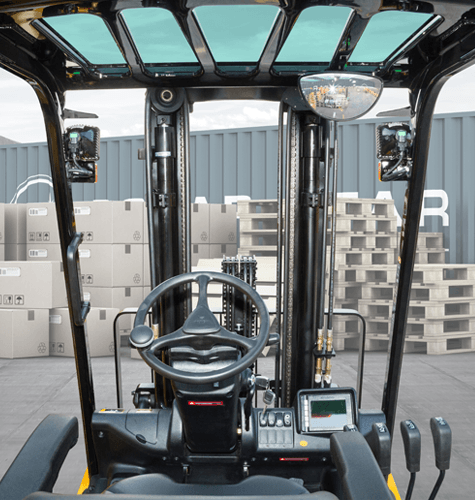

SPACIOUS OPERATOR CABIN

The newly designed rubber mounted cabin provides excellent visibility. The adjustable Grammer seat and angled foot peddles ensures a spacious operating environment ensuring all day comfort for your operator.

ERGONOMICS

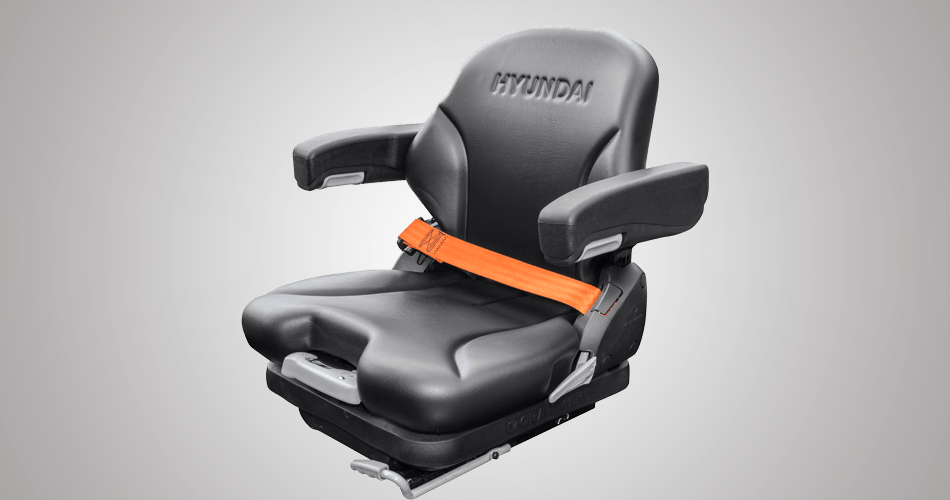

GRAMMER™ FULL SUSPENSION SEAT

With fully adjustable backrest and armrests, the adjustable ergonomic seat provides great operator comfort and safety.

ERGONOMICS

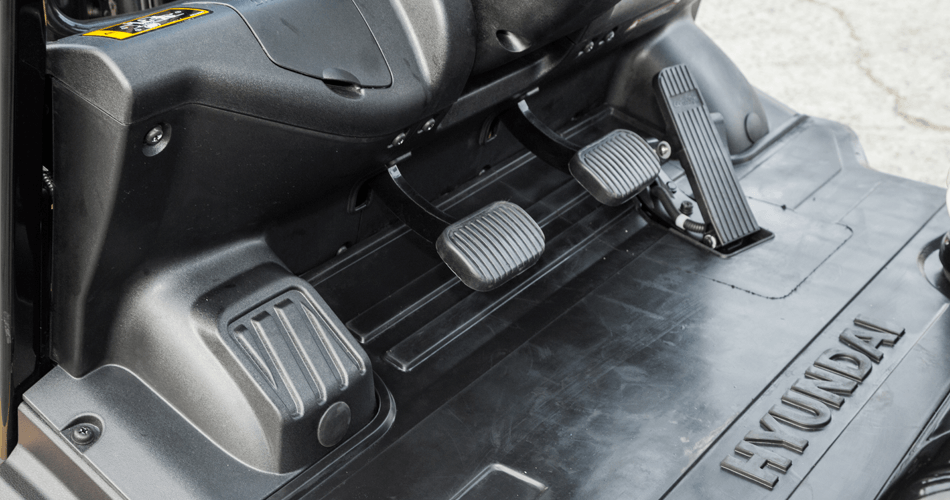

OPTIMISED PEDAL LOCATION

On the 9-series the pedals are mounted to the console and angled to reduce operator fatigue. This feature also reduces noise levels and dust from the engine compartment.

ERGONOMICS

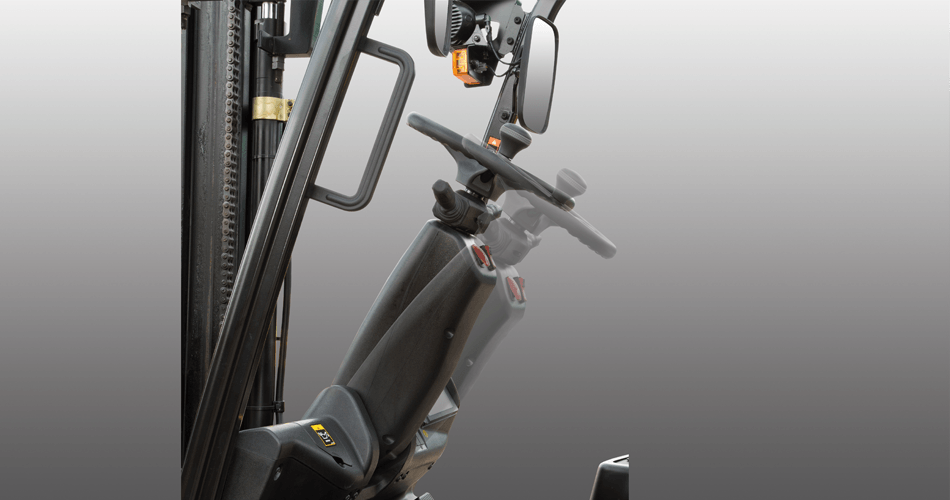

ADJUSTABLE STEERING WHEEL

Featuring a horn button and a right-hand lever, the steering wheel can be adjusted by the operator for comfortable positioning.

SERVICEABILITY

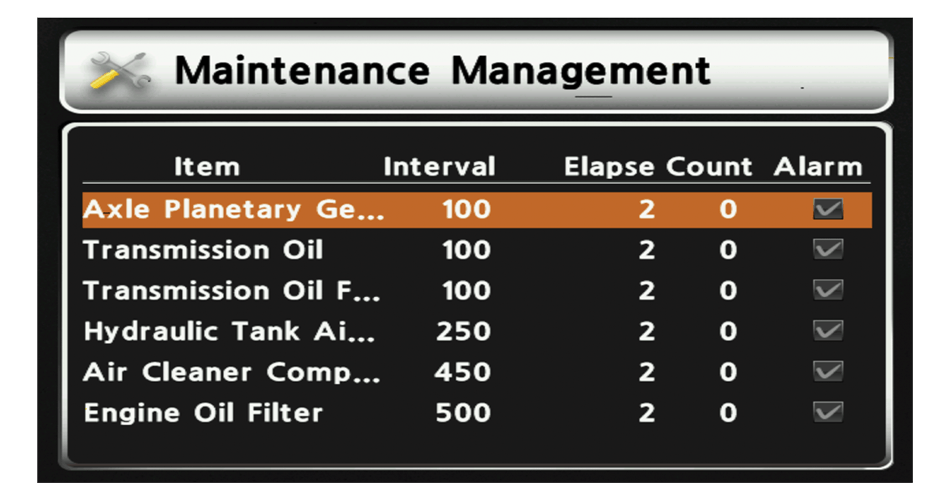

IN-BUILT MAINTENANCE MANAGEMENT SYSTEM

This system automatically monitors the replacement cycle of key consumable items and alerts the operator before a failure occurs. This increases uptime, makes managing maintenance easy and helps extend the life of the machine.

SERVICEABILITY

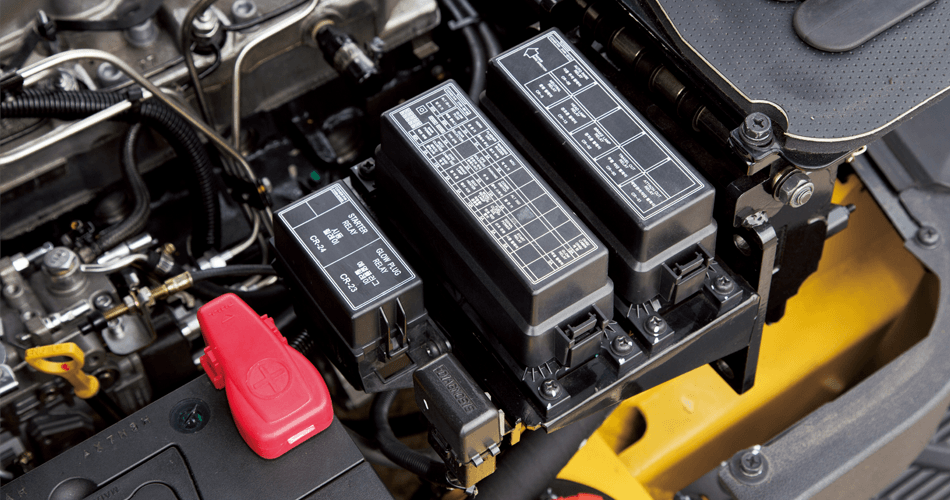

WATERPROOF ELECTRICS

Newly developed IP67 rated fuse and relay box for ease of maintenance and better durability.

SERVICEABILITY

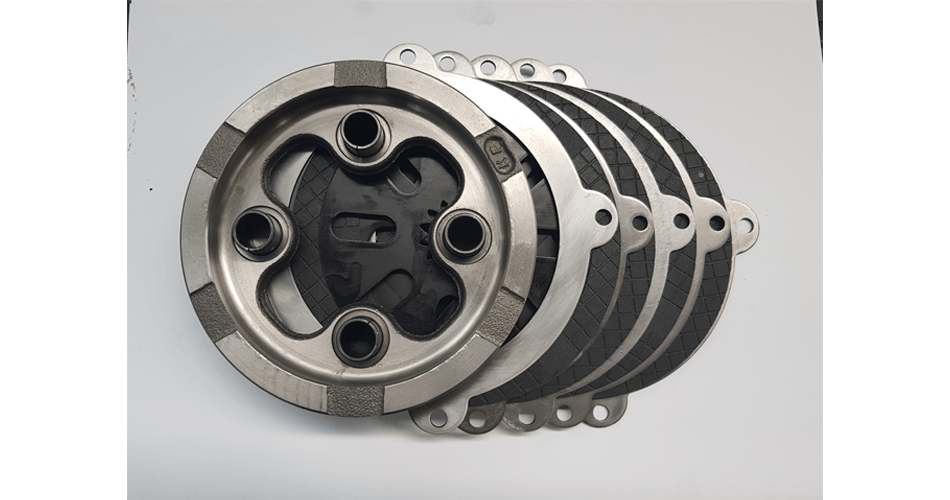

WET DISC BRAKES

The sealed wet disc brake system offers easy operation, smooth response and are maintenance free. This amounts to greater uptime and greatly reduced maintenance costs. In addition, an oil cooler has been added to improve durability in working environments where the frequency of brake operation is high.

SERVICEABILITY

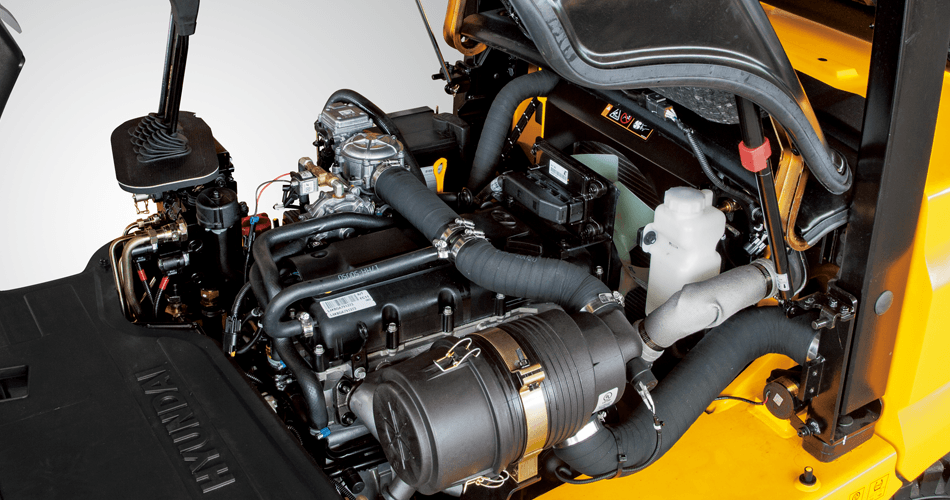

EASY ACCESS FOR FASTER SERVICING

Easy access to engine bay and air filters for quick service exchange.

SAFETY

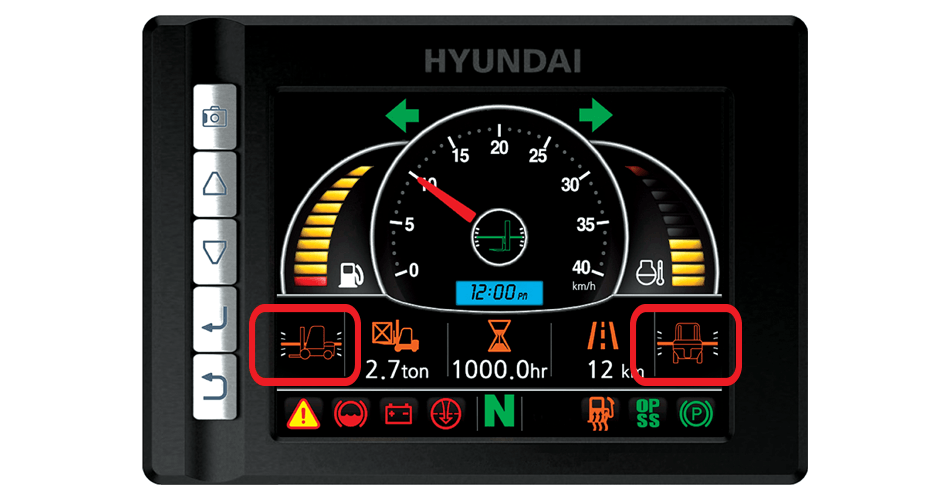

INCLINATION WARNING SYSTEM

This industry leading stability system has grade and slope sensors built into the MCU. They provide status information in real time. Should the machine reach the AUS standard of cross grade or slope, the electronic park brake will automatically engage while at the same time the engine will go into limp mode. As a result the unit is immediately returned to a position of stability and once back under the AUS standard levels the limp mode is disengaged and the operator can release the handbrake. This greatly reduces the risk of serious incidents caused by instability.

SAFETY

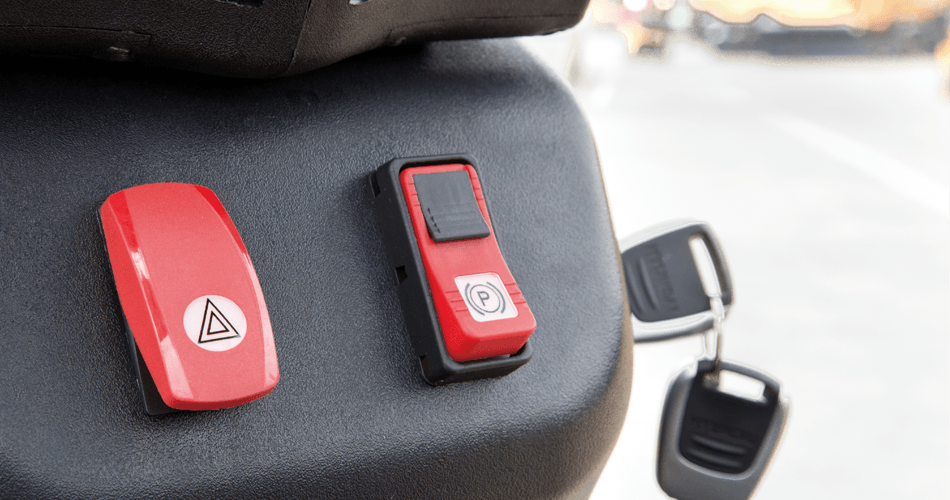

AUTOMATIC PARK BRAKE

The electronic parking brake removes the need for the operator to apply the handbrake when they leave the machine. When the operator leave the seat with the gear lever in neutral, the parking brake is automatically engaged to secure safety and ios automatically released upon the operator's return to the seat.

SAFETY

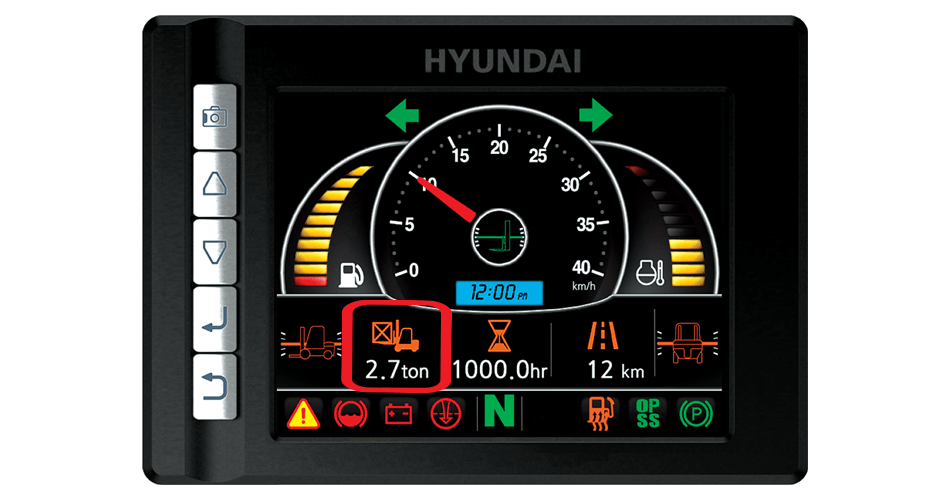

Built in load indicator

The optional load indicator displays the load weight on the dash. The load sensor reduces the time to check loaded weight and the alarm alerts the driver when overloaded.

SAFETY

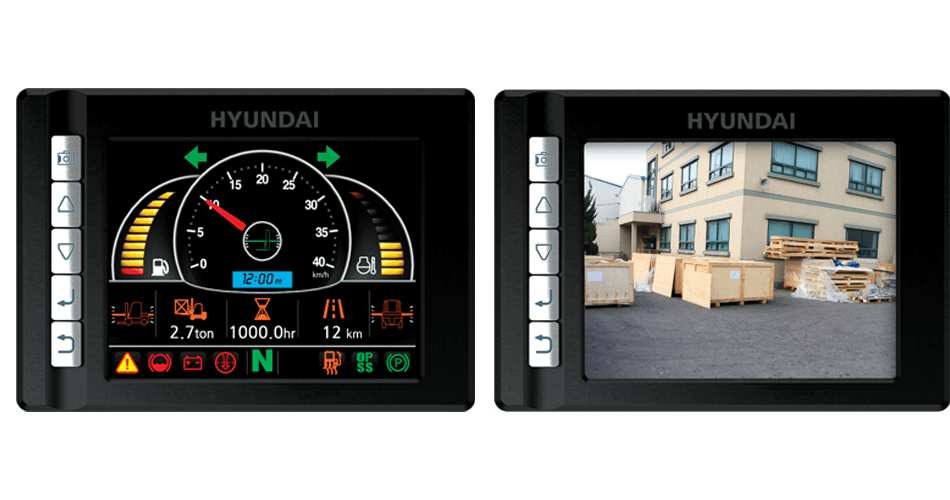

IN-BUILT REVERSE CAMERA

The in-built reverse camera is connect to the dash display, once the operator selects reverse gear the dash display switchs to a reverse monitor, guaranteeing a safe working environment and better visabilty.

Product

Specifications

25, 30, 33L-7A

SpecificationsDownload Product Brochure

LOAD CAPACITY
2,500 - 3,300kg
TRAVEL SPEED (FULL LOAD)
11.0 - 18.7 kph (unloaded)
ENGINE MODEL
HMC / L4KB
POWER (HP/RPM)
59 HP / 2,300 RPM
FUEL TYPE
LPG
LENGTH TO WORKFACE
102.1 - 2,733mm
OVERALL WIDTH
45.7 - 1,229mm
