Low / Mid Order Picker

TSV

Low / Mid Order Picker

TSV

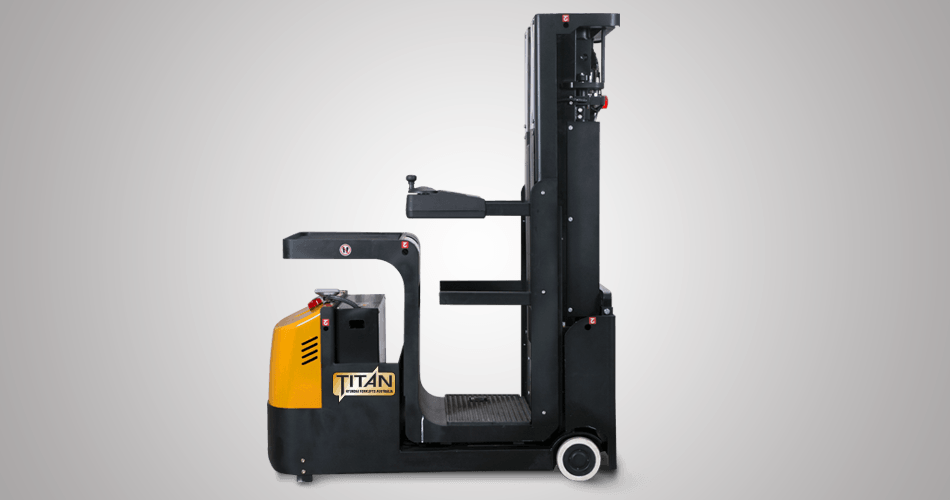

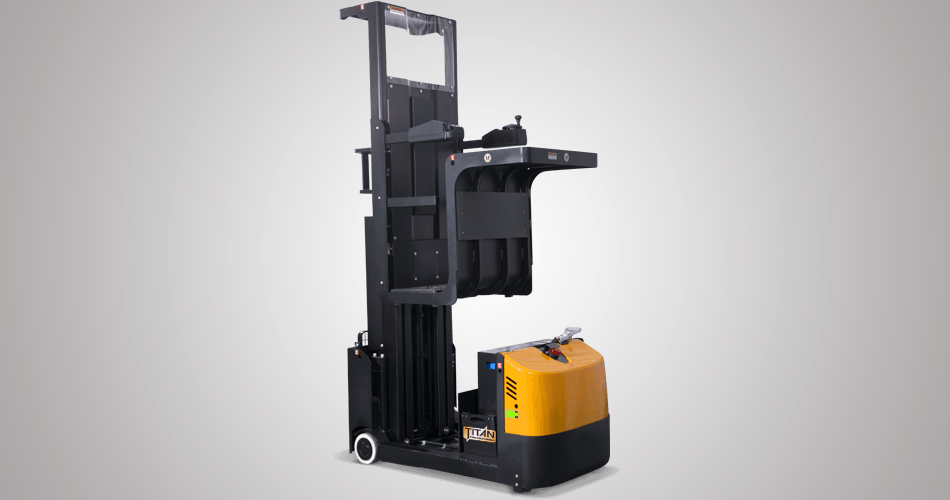

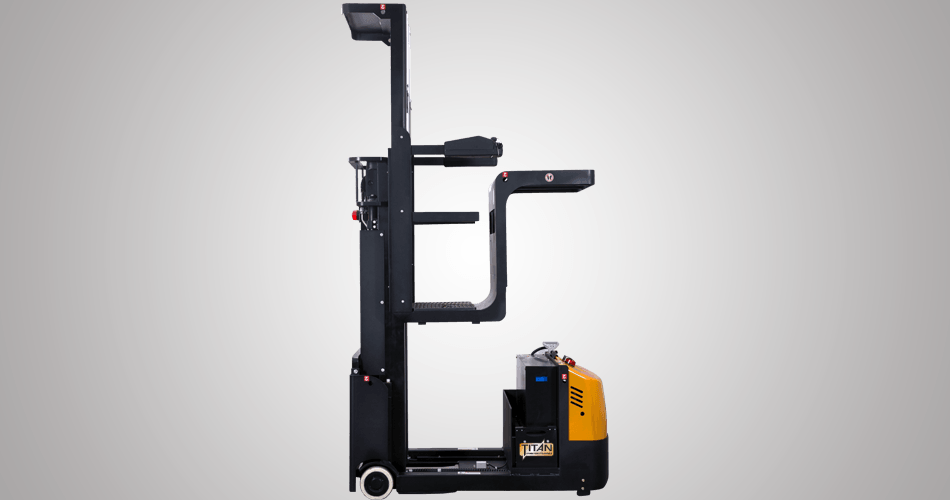

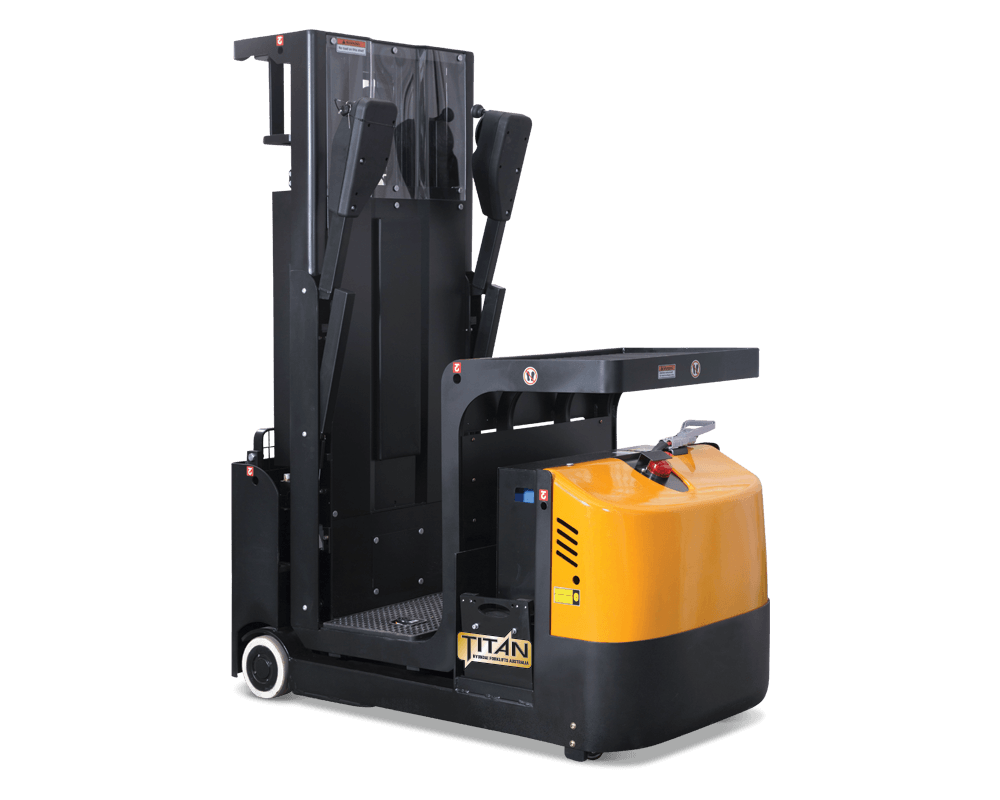

The TSV is a worldwide unique order picker. Small, flexible but yet powerful! With a lift height of 4880mm the Task Support Vehicle combines attributes of elevating work platforms, order pickers and tuggers in a compact vehicle design

Find a Dealer
Battery voltage V
24
Battery capacity Ah
224
Load capacity kg
Rated capacity on front platform - 227kg
Rated capacity on behind platform - 137kg
Rated capacity on standing platform – 136kg
Download Family Brochure

Product

Features

V
Key BenefitsSafety

Key Benefits

  • High volume order picking in a warehouse environment

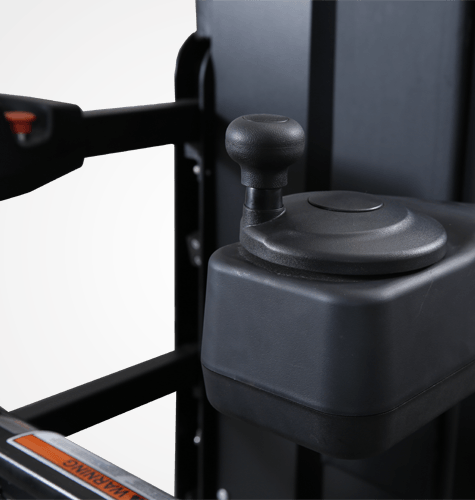

  • Mini steering wheel and finger-tip controls make for easy operation
  • Front steer wheel set up makes for easy navigation and operator control
  • Max. Platform height: 2.99m - Picking height 4.50m
  • Max Platform height: 4.80m - Picking height 6.3m
  • Truck Size 1590x1500x800, turning radius (1385mm), suitable for narrow aisles in the warehouse
  • 1 Tonne Towing Capacity
  • Strong and steady

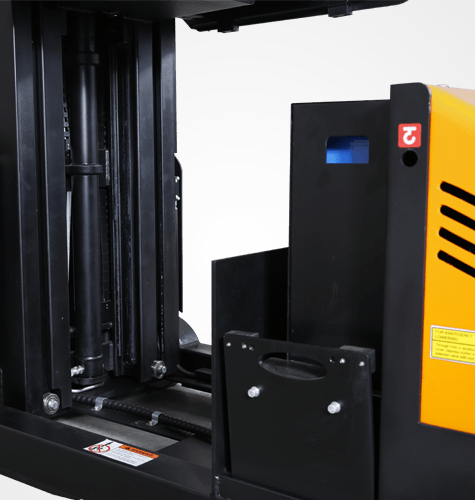

  • AGM Battery (maintenance free), Large Lead-Acid battery as option. Simple Battery exchange
  • Electronic Power Steering
  • Field proven permanent magnet DC drive motor
  • Integral batteries and charger

Safety

  • Safe Valve system design prevents the mast from falling abruptly if a hose fails
  • Mast limit switches reduces the ground speed as the platform height increases
  • Obstruction presence sensors below operator compartment
  • Automatic locking rear entry gate when elevated
  • Infra – Red laser operator presence system
  • Tilt sensors monitor the tilt angle of the machine
  • Deadman pedals located on the floor of the compartment to monitor operator presence
  • Manual override on base of unit to allow lower of platform in the event of an emergency
  • Low entry level height
  • Entry via both side of the unit for easy and safe picking

Product

Specifications

TSV

Specifications

Battery voltage V
24
Battery capacity Ah
224
Load capacity kg
Rated capacity on front platform - 227kg
Rated capacity on behind platform - 137kg
Rated capacity on standing platform – 136kg
Lift height mm
3200 - 4880
Turning radius mm
1,385
Travel speed km/h
5.5
