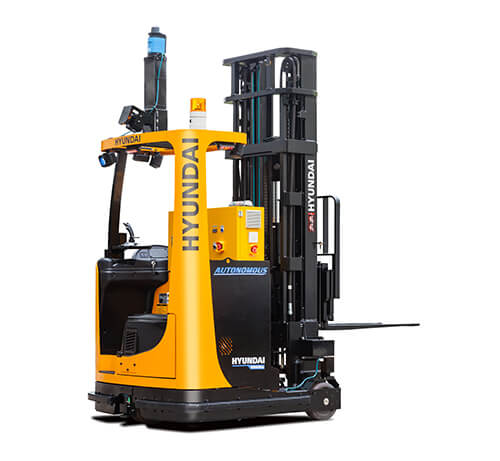

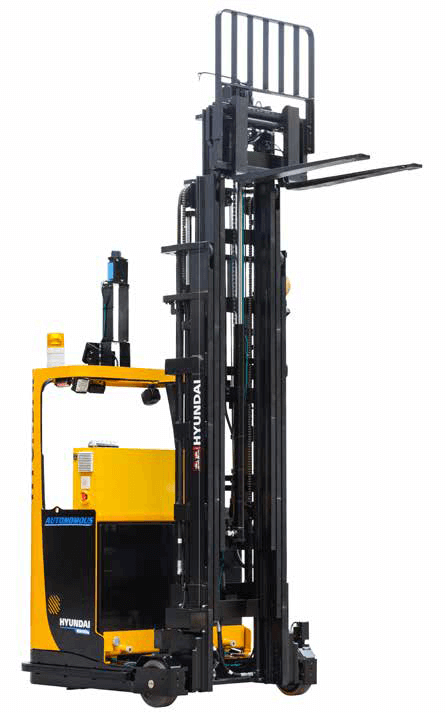

RS010A-9

RS010A-9

Load capacity:

1,000 kg

Service weight:

3,576 kg

Load center:

600 mm

Wheelbase:

1,160 mm

Tire size, front:

305x140 mm

Tire size, rear:

285x100 mm

Mast lowered height (TF670):

2,853 mm

Maximum fork height:

6,705 mm

Maximum height lifted (with load backrest):

7,772 mm

OHG height (NAV sensor height):

2,116 (2,956) mm

PRODUCT FEATURES

AUTONOMOUS CONTROL SYSTEM
Convenient manual control system

When operating the machine manually, the driver can use the multifunctional joystick to adjust the equipment easily. In addition, it is not fixed to allow the driver to change the direction of lever according to his or her habit.

AUTONOMOUS CONTROL SYSTEM

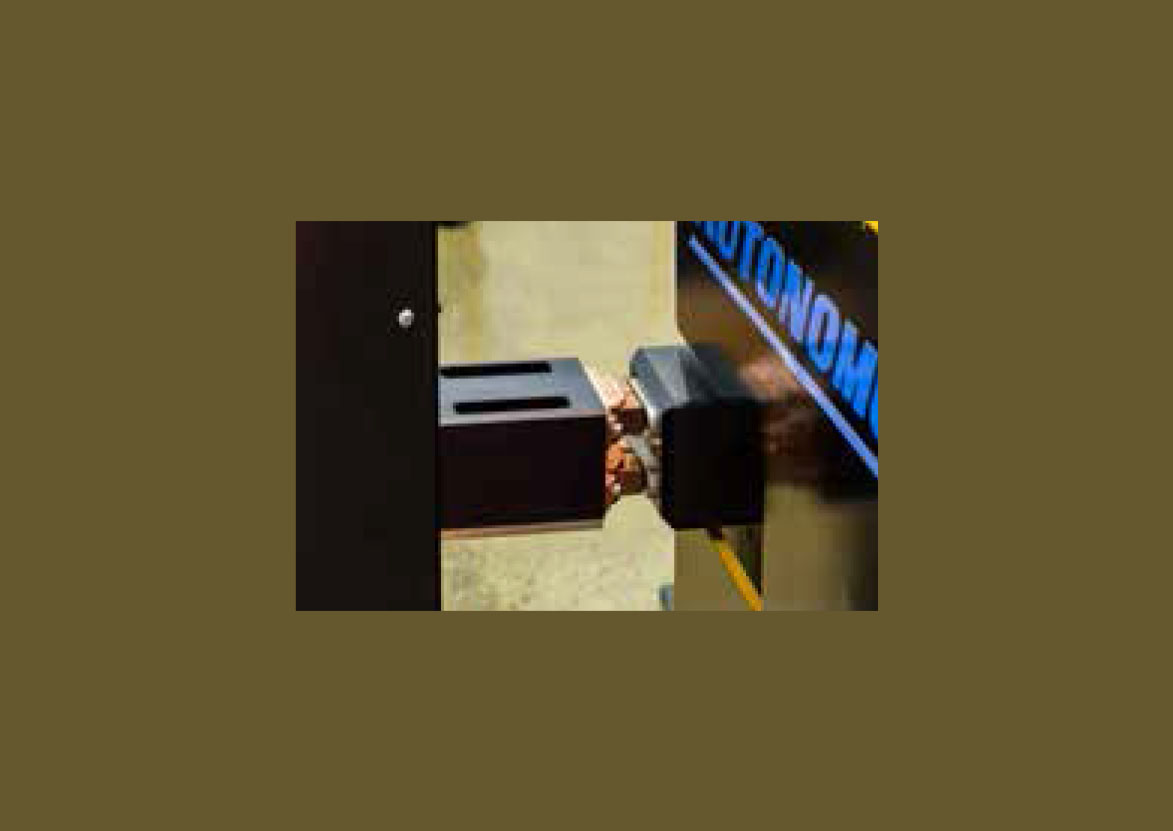

Automated wireless charging system

When the battery life drops below the pre-set value or is suspended for over the pre-set period of time, the forklift automatically connects to the automated wireless charging system to recharge the battery.

AUTONOMOUS CONTROL SYSTEM

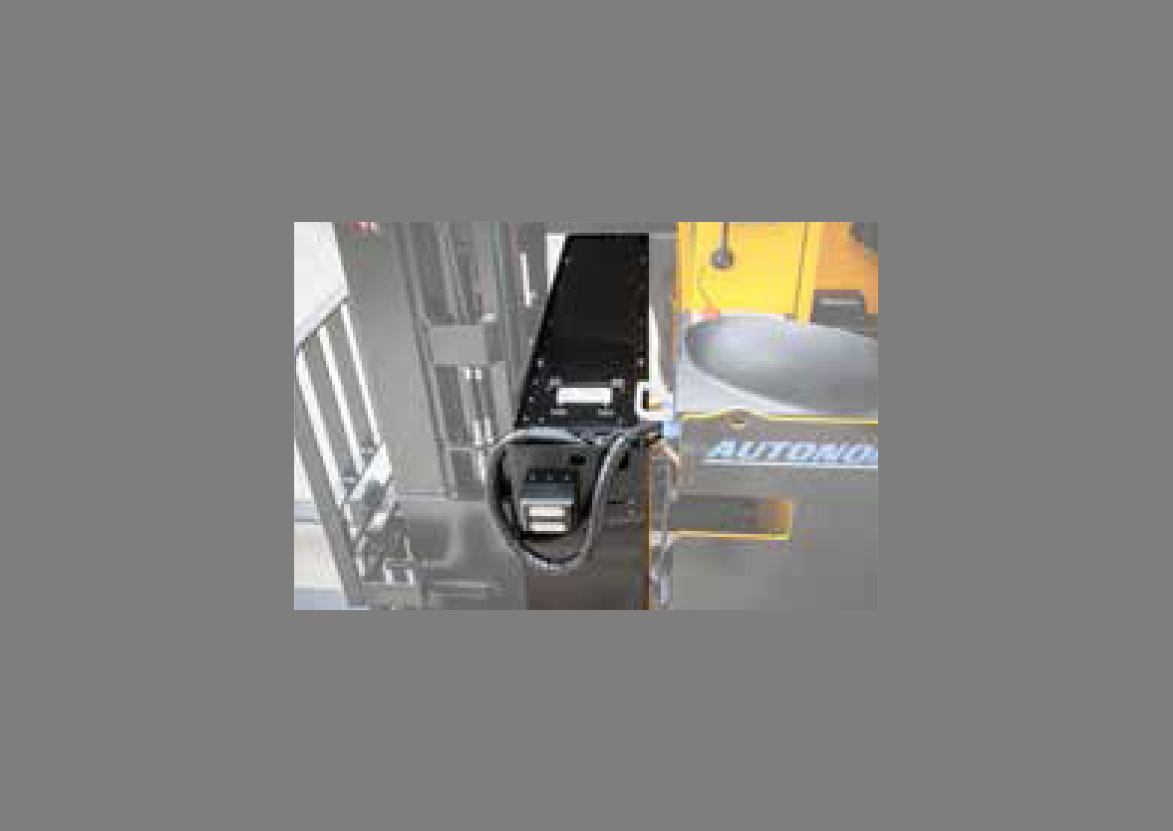

Li-ion battery

A lead-acid battery needs to have distilled water refilled manually and requires maintenance and resting of equipment as it needs 8 hours for recharging. A lithium-ion battery, on the other hand, does not require regular maintenance and can be recharged fast to complete the automation system and enhance the efficiency of operation.

OPERATION SOFTWARE
Forklift control software & system

  • Link the forklift’s electronic hardware, telecommunications & I/O
  • Control driving and process the sensor system
  • Autonomous operation enabled by standalone or central control
  • Real-time telecommunication with the control software via wireless communication

OPERATION SOFTWARE

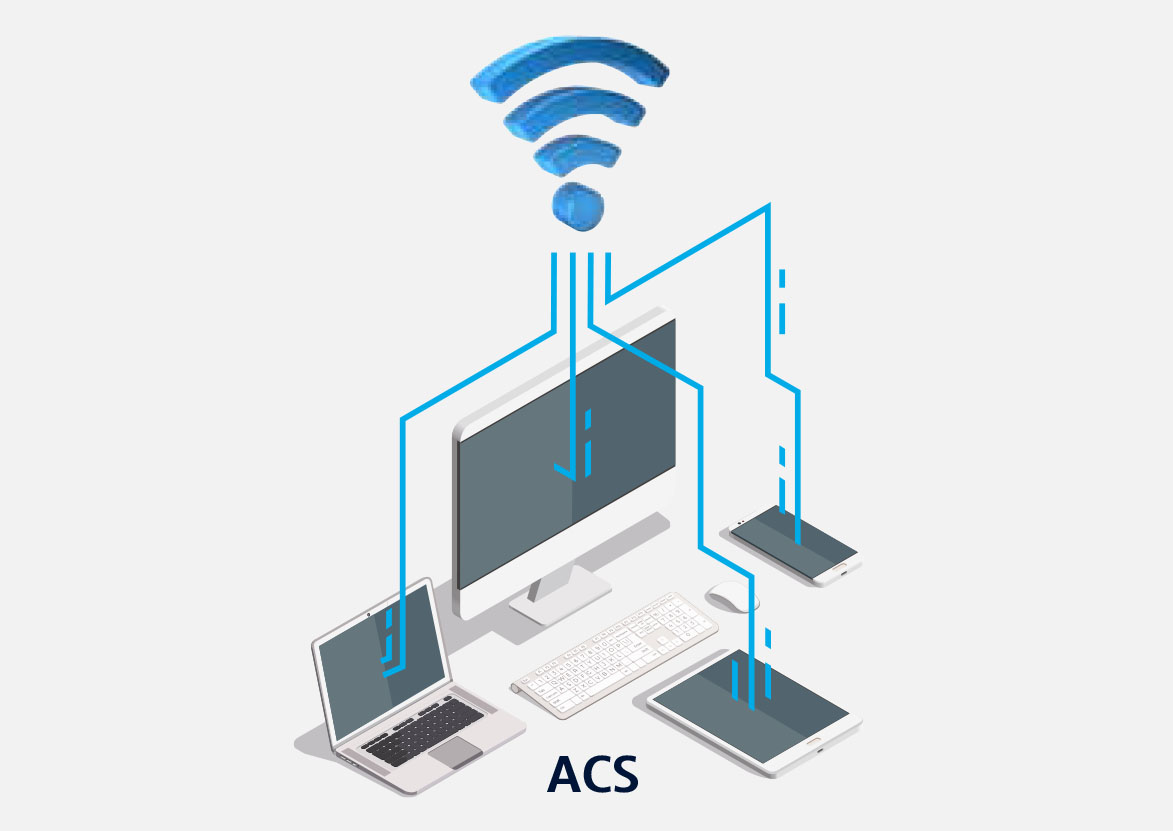

Environmental set-up & mapping

  • Utilize navigation sensor (NAV-350) to acquire information on local driving environment
  • Create and store map data
  • The map data can be manually updated

OPERATION SOFTWARE
Autonomous driving & routing

  • Location sensing
  • Detect & avoid obstacles
  • Plan and follow driving routes

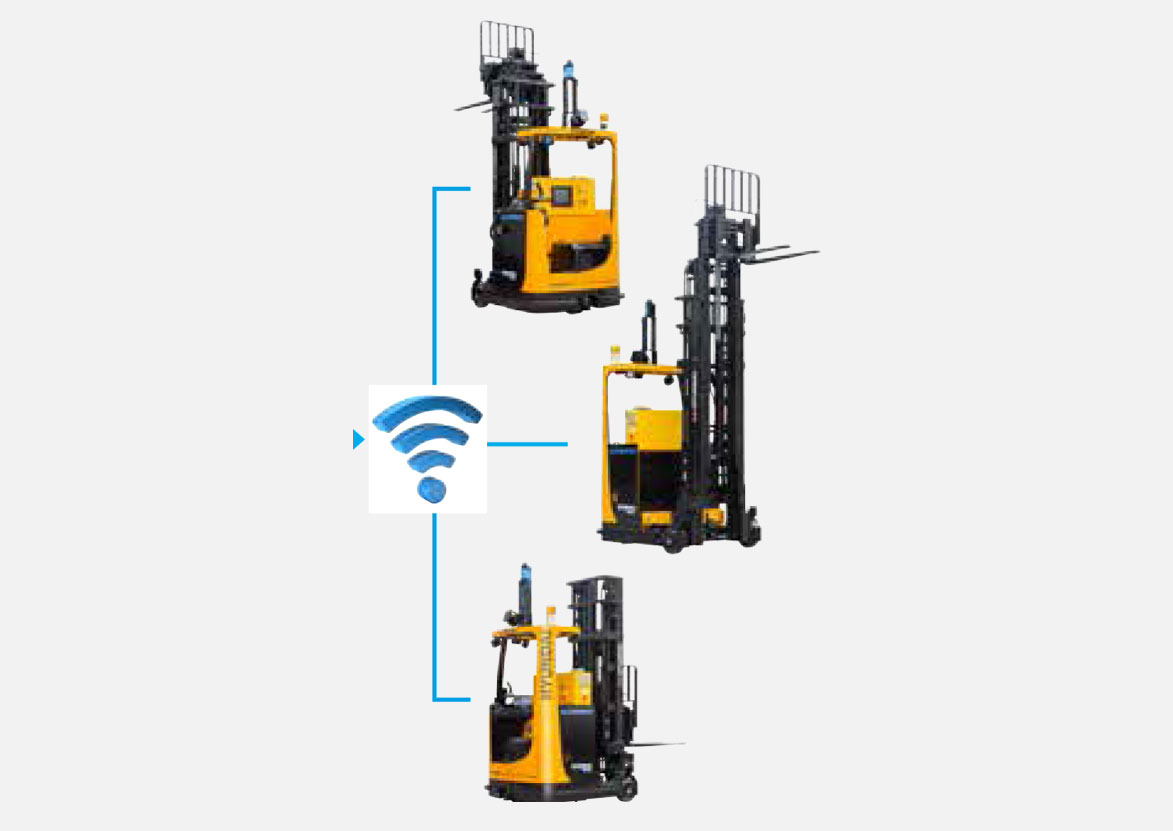

OPERATION SOFTWARE

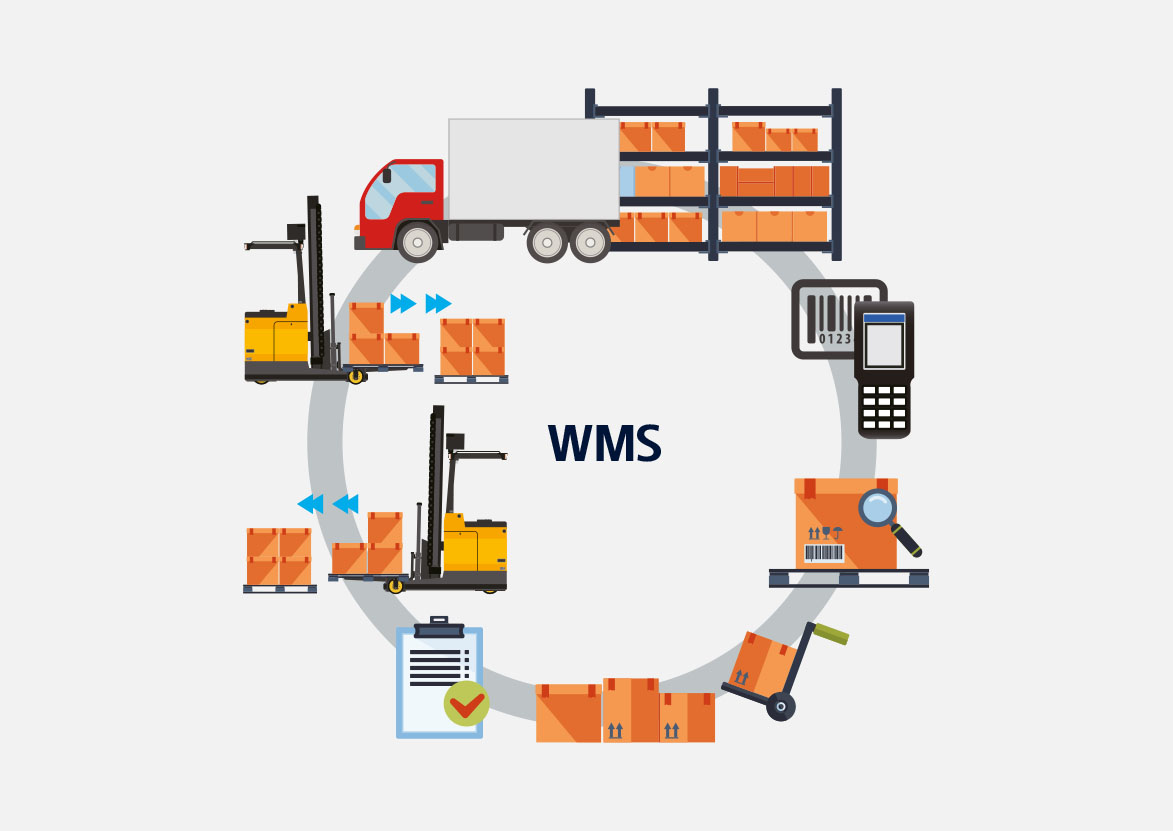

Work sequence scheduling

  • Arrange a sequence of actions, i.e. driving, loading, unloading, turning, advancing and reversing
  • Ensure scheduling and formation control of individual operations through central control

SAFETY

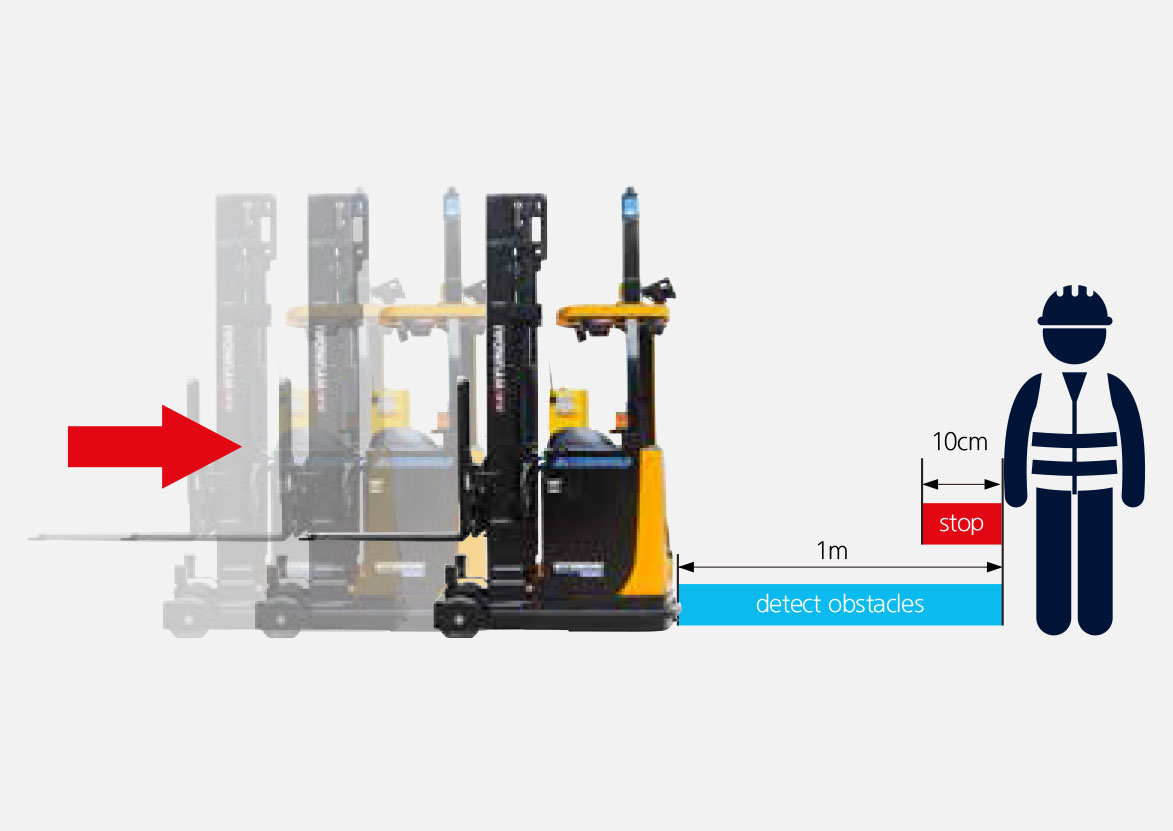

Safe stop after detecting moving obstacles

The system detects moving objects that appear in front of the forklift from 1m away. and stops 10cm from the obstacle to prevent collisions.

SAFETY

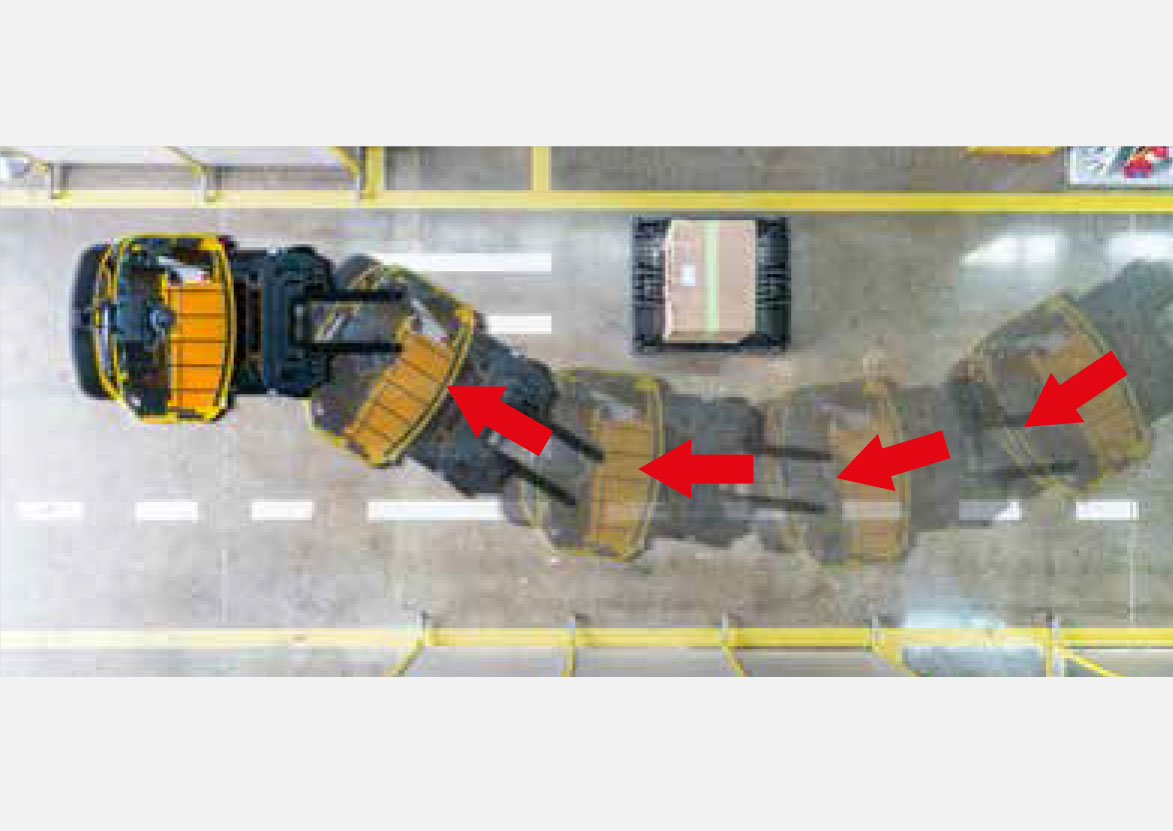

Avoiding static obstacles

Create a new driving route to avoid collsions. If a stationary obstacle appears on the way.

SAFETY

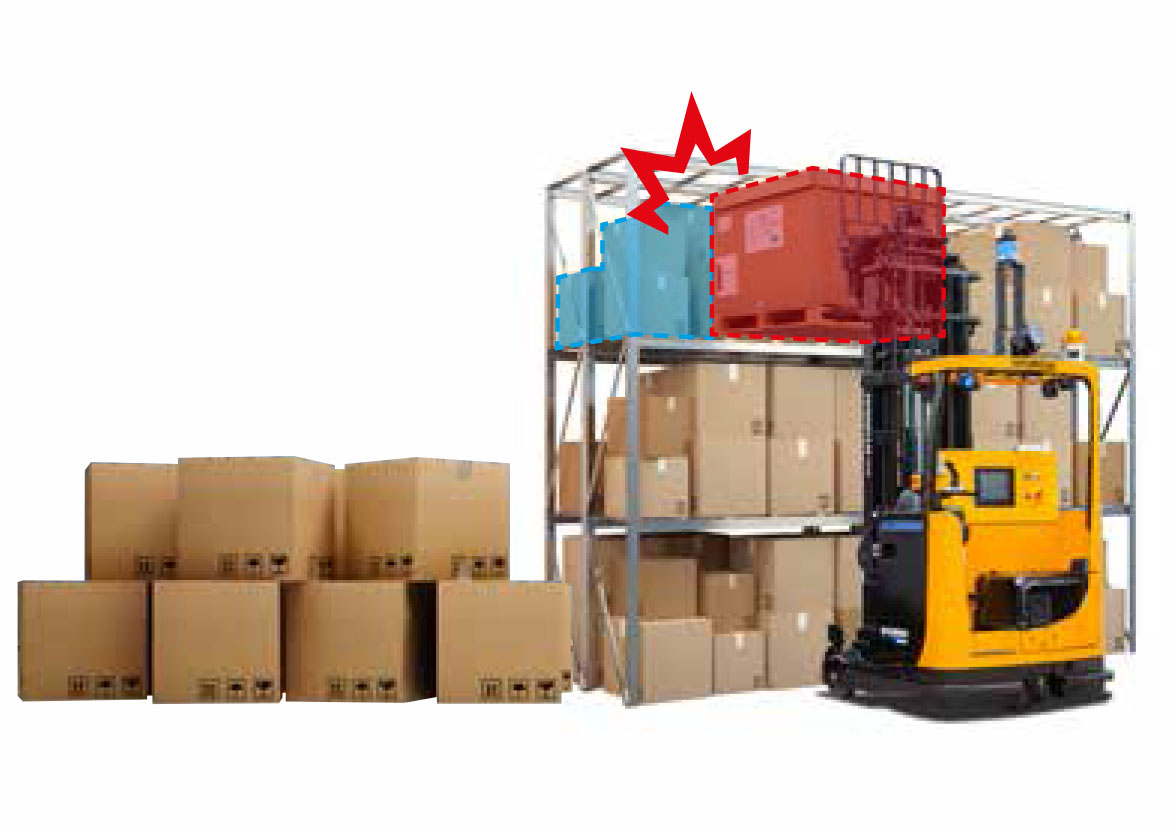

Safe stacking

Check each stacking job and cancel the hazardous one that was ordered incorrectly.
