EAV

EAV

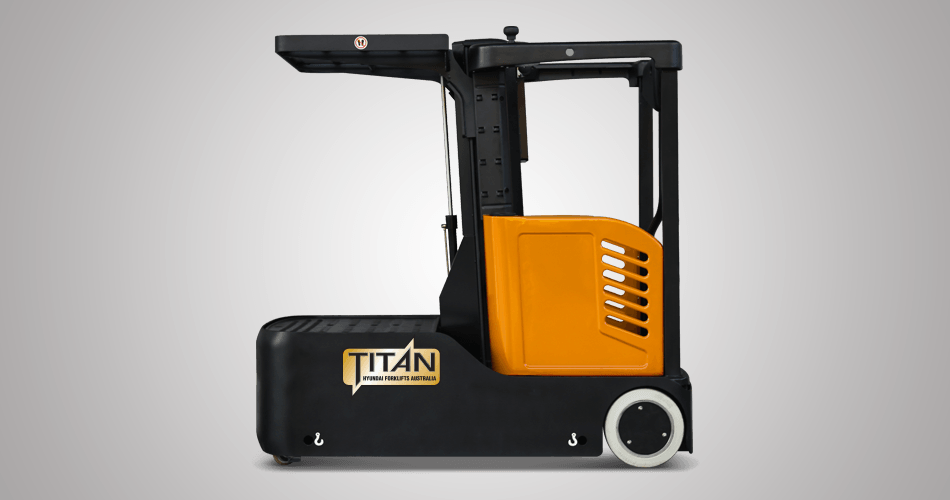

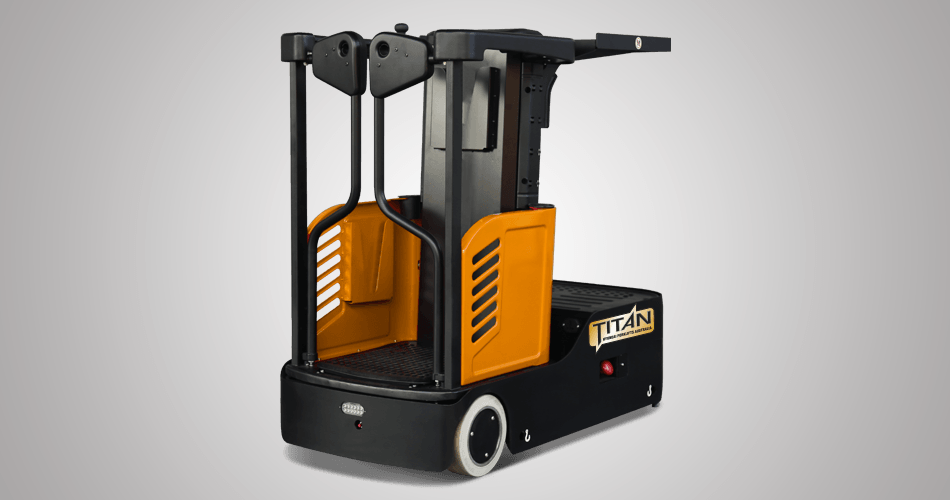

The EAV meets the needs of retail, order picking, inventory as well as maintenance workers with a lifting height of 2.99m and a picking height of over 4.5m, this versatile machine covers all order picking needs.

LOAD CAPACITY KG:

90KG FRONT LOAD TRAY/113KG FRONT LOWER DECK/ 136KG STANDING PLATFORM

BATTERY VOLTAGE :

24V

BATTERY CAPACITY:

120AH

LIFT HEIGHT MM :

4089

TURNING RADIUS MM:

1,260

TRAVEL SPEED KM/H:

6.0 TO 6.5

PRODUCT FEATURES

KEY BENEFITS

  • Low/Medium volume order picking and retail environment

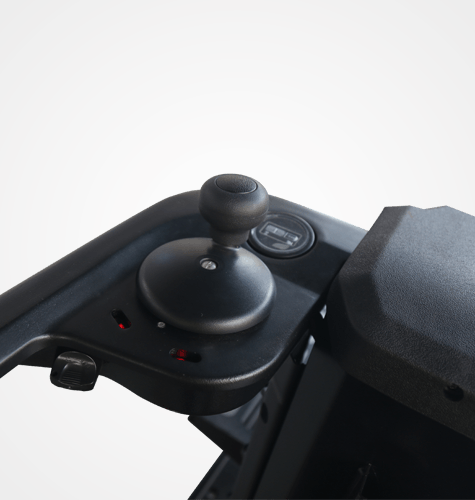

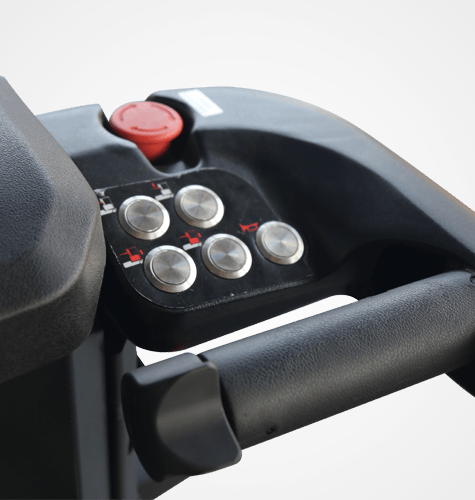

  • Mini steering wheel and finger-tip controls make for easy operation
  • Front steer wheel set up makes for easy navigation and operator control
  • Max. Platform height: 2.99m – Picking height 4.50m
  • Truck size: 1365x1440x750mm, turning radius (1260), suitable for narrow spaces
  • Light and flexible
  • AGM Battery (maintenance free), Li-Ion as option
  • 890kg capacity POWERED LOAD TRAY
  • 336kg total capacity
  • 2997mm platform lift height
  • Electronic Power Steering
  • Field proven permanent magnet DC drive motor
  • Integral batteries and charger

SAFETY

  • Safe Valve system design prevents the mast from falling abruptly if a hose fails
  • Obstruction presence sensors below operator compartment
  • Automatic locking rear entry gate when elevated
  • Infra – Red laser operator presence system.
  • Tilt sensors monitor the tilt angle of the machine
  • Deadman pedals located on the floor of the compartment to monitor operator presence
  • Manual override on base of unit to allow lower of platform in the event of an emergency.
  • Built-in Blue Spot LED light and flashing yellow rear LED light.
