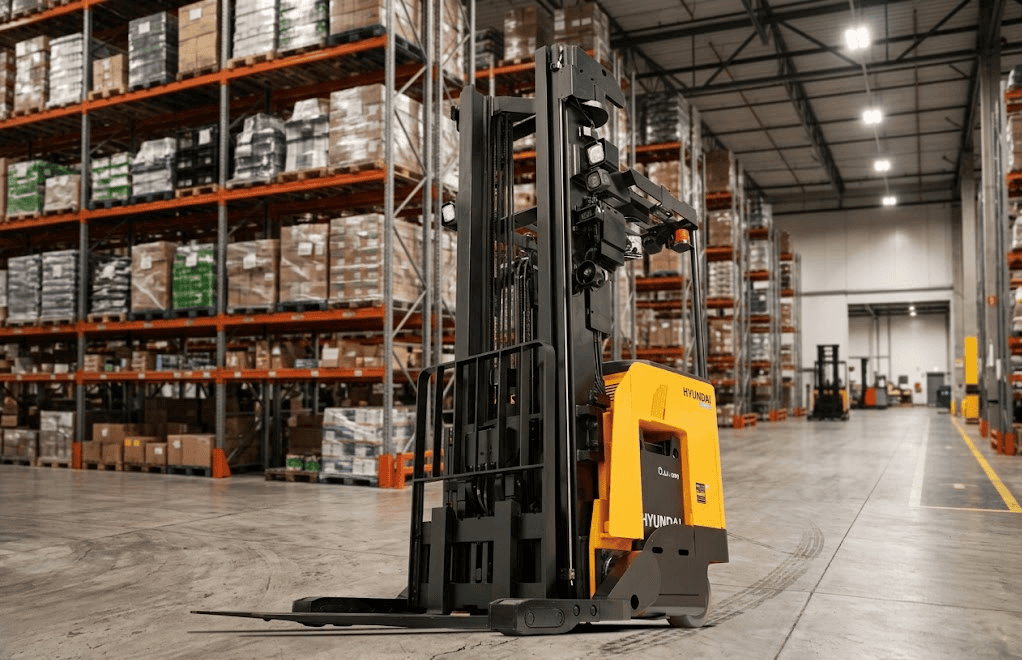

The Hyundai 15BRP-X reach truck is launching into Australia. It brings an all new stand-up reach truck to the Australian line-up. The machine pairs a 1.5 tonne capacity with new controls, stronger ergonomics and the best lithium-ion battery integration available. Here is what the 15BRP-X brings, who it suits, and how it fits the Australian warehouse.
The Hyundai 15BRP-X is Hyundai’s latest generation stand-up pantograph reach truck. It is purpose built for high density warehousing and distribution centres, where maximum storage capacity and fast cycle times are essential. Hyundai designed it to deliver higher productivity, greater operator comfort and lower operating costs than previous generation models.
The stand-up operator compartment allows quick entry and exit during frequent picking operations. The pantograph reach mechanism places and retrieves loads from deep racking. The compact narrow aisle design turns inside aisles that would stop a counterbalance truck.
It arrives as part of the BRP-X family, which runs from the 15 up to the 23BRP-X.
| 15BRP-X at a glance | |
|---|---|
| Capacity class | 1,500 kg load capacity |
| Type | Stand-up operator compartment |
| Battery | 36V battery lead acid or lithium-ion |
| Reach | Pantograph mechanism for deep racking |
| Controls | Industry standard precision joystick |
The headline change for operators is the new high precision joystick. Hyundai built it to operate identically to the industry standard control layout. An operator stepping across from another brand needs no learning curve or retraining. The controls deliver intuitive operation with minimal training.
The steering wheel is new as well. It prevents excessive free movement, so the machine holds its line with less continuous correction, and the operator’s arm does less work across a shift. Small reductions in effort compound over thousands of aisle runs.
Reach truck operators stand for hours, and the 15BRP-X treats that as a design problem rather than a fact of life. The step height is lower and the handle configuration makes entry and exit easier. The toe space is wider, letting the operator stand naturally instead of bracing. A shock absorbing footrest uses a spring damper to soak up shocks and vibration, and new back and knee pads protect the operator over rough surfaces. The redesigned cabin adds better visibility and a user friendly dashboard to cut fatigue further.
The mast works smoother too. Electronic controls, hydraulic cushioning and dampers minimise load sway at height. They also cut the shocks and shakes that normally travel through a reach truck as it lifts and lowers. Combined with faster lifting and lowering speeds both loaded and unloaded, the machine moves more pallets with less wear on the person driving it.
The overhead guard exceeds both CEE and ANSI regulations while keeping sight lines open. Curve control reduces the risk of taking a turn too fast for the machine, and hill assist prevents unintended movement on grades. An optional pedestrian safety system adds cameras with light and audible warnings for the people working around the machine. It follows the same safety technology direction running across the wider Hyundai range.
Servicing is designed around cutting downtime. Maintenance points sit within easy reach, the fuse box is centralised for quick inspections, the LCD cluster displays real time diagnostics and maintenance tracking, and the battery switches out easily when operations run multiple shifts. The new X-Series engineering focuses on lower energy consumption, reduced maintenance and lithium-ion integration from the factory.
The 15BRP-X targets the work that fills most Australian sheds. Hyundai lists distribution centres, third party logistics, retail warehouses, manufacturing and cold storage as its home ground. All of them run on pallet movement through high density racking. The stand-up configuration suits operations where drivers get on and off the truck throughout the day.
For sites weighing up their aisle equipment, the 15BRP-X joins an Australian reach truck line-up that already includes the 16BRJ-9, and the choice between formats comes down to aisle width, lift height and operator preference. Our guide to the best equipment for narrow aisles walks through that decision.
The 15BRP-X is Hyundai’s latest generation stand-up pantograph reach truck with a 1,500 kg capacity, now launching in Australia. It runs a 36 volt system with lead acid or lithium-ion batteries and is built for pallet work in narrow racking aisles.
The biggest changes are a high precision joystick that matches the industry standard layout so operators need no retraining, a steering wheel that reduces arm fatigue, faster lifting and lowering speeds, improved mast stability, and easier servicing access with real time diagnostics.
Lithium-ion is available as an option alongside lead acid. The lithium-ion pack charges in as little as 2 hours, needs virtually no daily maintenance, and suits multi shift operations using opportunity charging during breaks.
Talk to your local Hyundai dealer about seeing the 15BRP-X for your site.
